单颗金刚石磨粒划擦2D SiCf/SiC复合材料实验

王优哲 刘瑶 周扬 李家豪 黎瀚森

王优哲, 刘瑶, 周扬, 李家豪, 黎瀚森. 单颗金刚石磨粒划擦2D SiCf/SiC复合材料实验[J]. 金刚石与磨料磨具工程, 2024, 44(3): 335-345. doi: 10.13394/j.cnki.jgszz.2023.0275
引用本文: 王优哲, 刘瑶, 周扬, 李家豪, 黎瀚森. 单颗金刚石磨粒划擦2D SiCf/SiC复合材料实验[J]. 金刚石与磨料磨具工程, 2024, 44(3): 335-345. doi: 10.13394/j.cnki.jgszz.2023.0275
WANG Youzhe, LIU Yao, ZHOU Yang, LI Jiahao, LI Hansen. Experiment on single diamond abrasive scratching 2D SiCf/SiC composite materials[J]. Diamond & Abrasives Engineering, 2024, 44(3): 335-345. doi: 10.13394/j.cnki.jgszz.2023.0275
Citation: WANG Youzhe, LIU Yao, ZHOU Yang, LI Jiahao, LI Hansen. Experiment on single diamond abrasive scratching 2D SiCf/SiC composite materials[J]. Diamond & Abrasives Engineering, 2024, 44(3): 335-345. doi: 10.13394/j.cnki.jgszz.2023.0275

单颗金刚石磨粒划擦2D SiCf/SiC复合材料实验

doi: 10.13394/j.cnki.jgszz.2023.0275
基金项目: 国家自然科学基金青年基金(51905498); 先进制造技术山西省重点实验室开放基金(XJZZ202312)。
详细信息
    作者简介:

    王优哲,男,1998年生,硕士研究生。主要研究方向:复合材料磨削理论。E-mail:1806573182@qq.com

    通讯作者:

    刘瑶,男,1990年生,博士、副教授、硕士研究生导师。主要研究方向:精密加工与高端装备制造,生物医学制造与器械设计。E-mail:Liuyao@nuc.edu.cn

  • 中图分类号: TQ164; TG58; TG74

Experiment on single diamond abrasive scratching 2D SiCf/SiC composite materials

  • 摘要: 为了揭示2D SiCf/SiC复合材料的磨削去除机理,根据2D SiCf/SiC复合材料的编织结构特点,分别在2D SiCf/SiC纤维的编织表面(woven surface, WS)和叠加表面(stacking surface, SS)沿0°、45°和90°方向开展单颗金刚石磨粒划擦实验,测量其划擦力和划痕深度,并观察划痕表面形貌。结果表明:在WS0(纤维编织表面的0°方向)上SiCf/SiC材料的去除方式主要为纵向纤维(纤维轴向与进给速度方向一致)的剪切、拉伸、弯曲断裂和横向纤维(纤维轴向与进给速度方向垂直)的剪切、弯曲断裂;在WS45(纤维编织表面的45°方向)上主要为纤维的剪切、弯曲、拉伸断裂;在SS0(纤维叠加表面的0°方向)上主要为法向纤维(纤维轴向垂直于划擦表面)的延性去除、剪切、弯曲断裂,纵向纤维的剪切、拉伸、弯曲断裂;在SS90(纤维叠加表面的90°方向)上主要为法向纤维的延性去除、剪切、弯曲断裂和横向纤维的剪切、弯曲、拉伸断裂。由于SiC纤维的各向异性,不同方向、不同断裂形式有不同的力学性能,剪切断裂所需要的力最小,拉伸断裂所需要的力最大。在相同划擦深度下,因WS0、WS45、SS0、SS90方向上断裂形式的不同和剪切、弯曲、拉伸断裂所占的比例不同,其划擦力大小依次为FSS0>FWS45>FSS90>FWS0。且磨粒切入复合材料后随着裂纹的扩展和相互贯通,SiC基体会一起被剥离去除,部分基体受到挤压去除后再次被磨粒划擦去除形成延性划痕。2D SiCf/SiC复合材料切削时宜选择WS0方向,而尽量避开SS0方向。

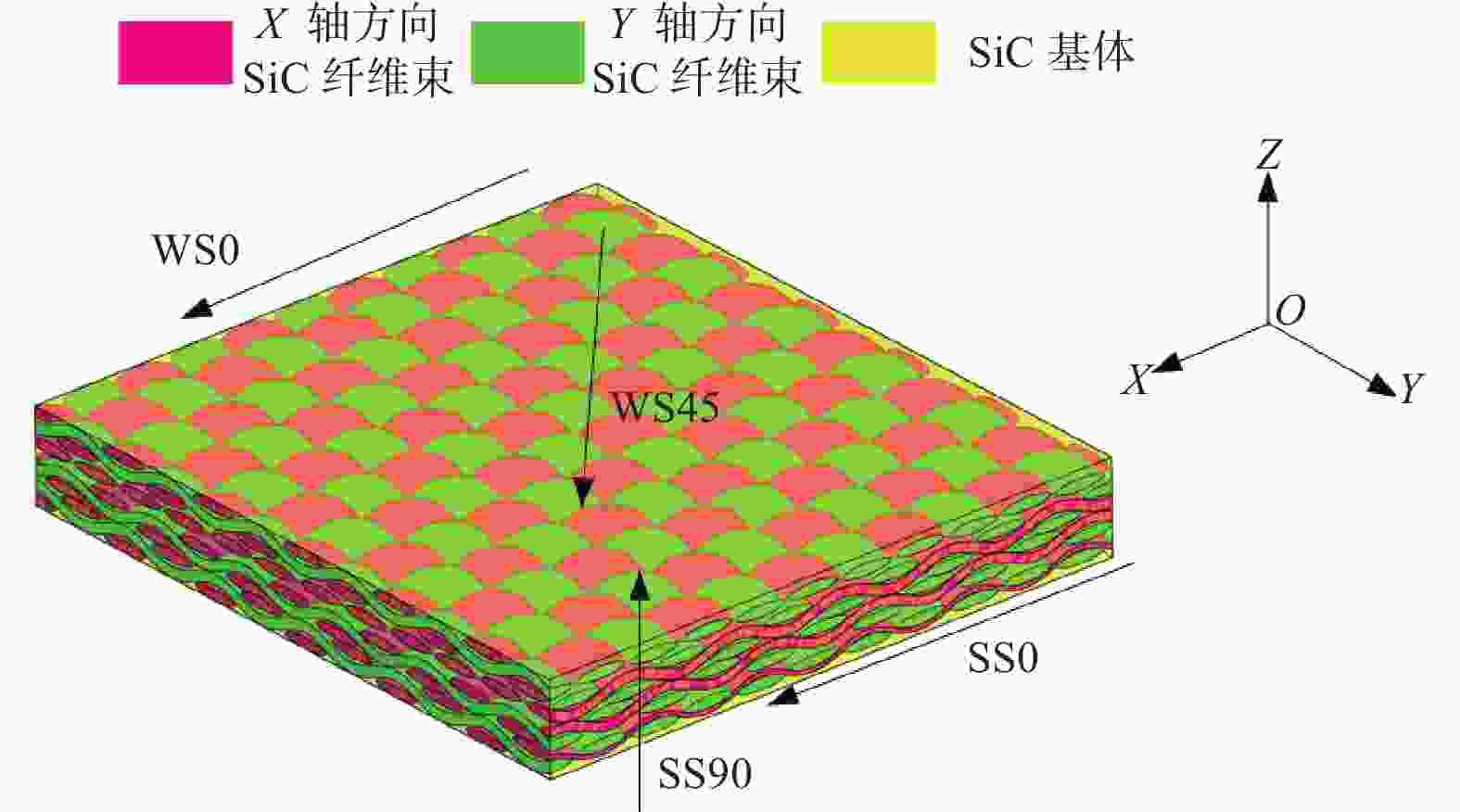

  • 图  1  2D SiCf/SiC复合材料编织结构和划擦方向

    Figure  1.  2D SiCf/SiC woven structure and scratching direction

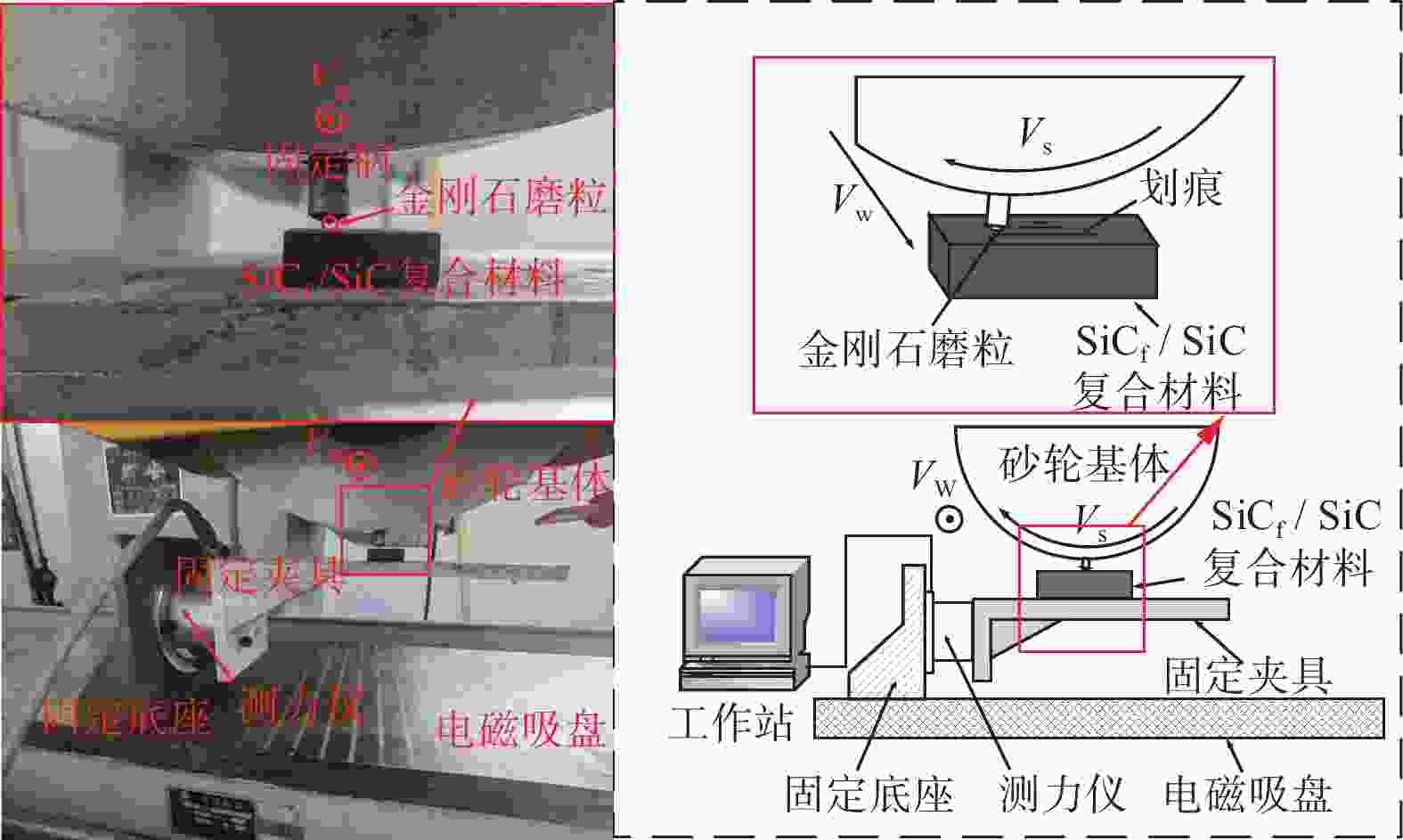

    图  2  单颗磨粒划擦实验装置及划擦示意图

    Figure  2.  Single abrasive particle scratch experimental device and scratch experimental schematic diagram

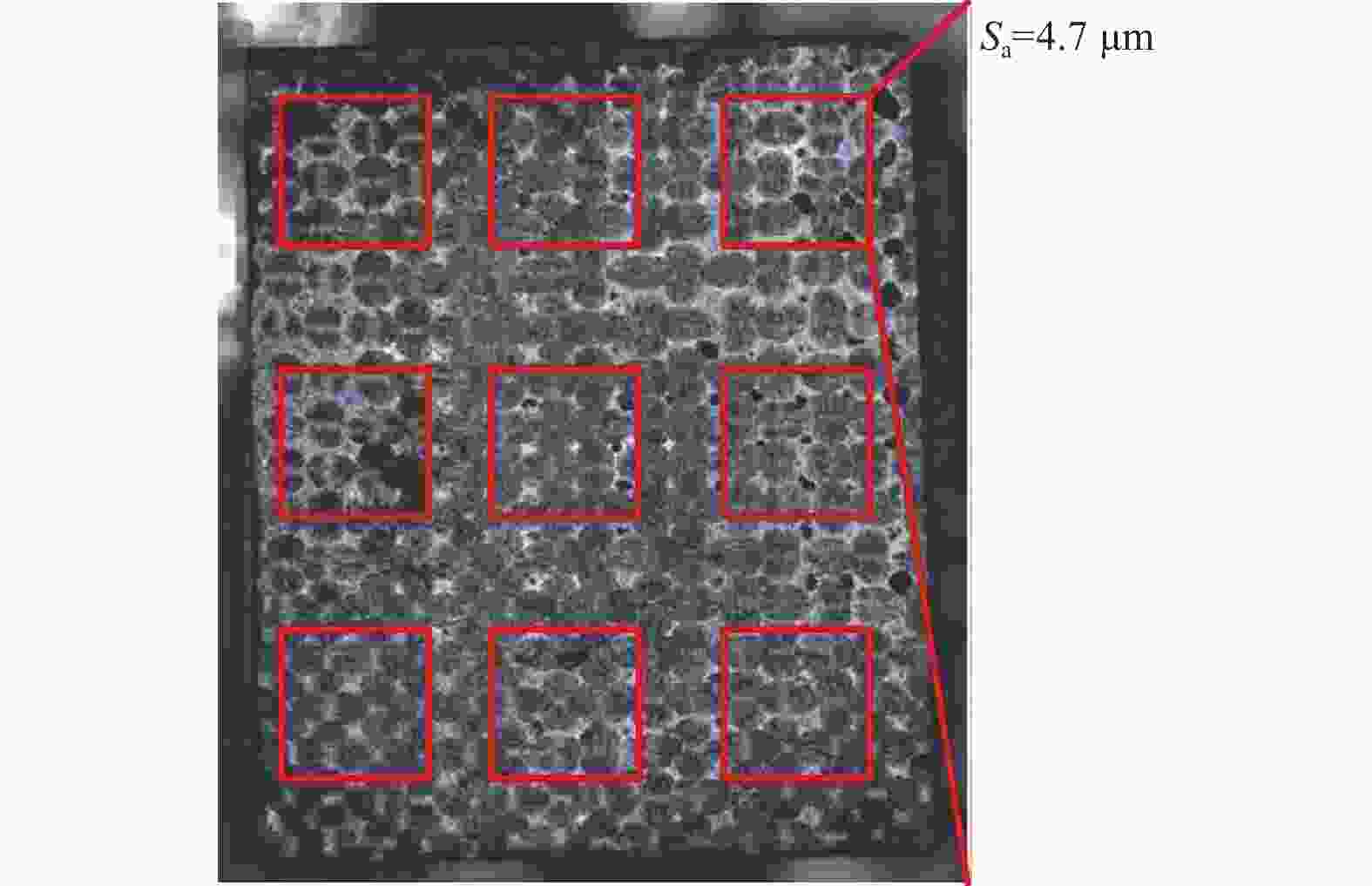

    图  3  2D SiCf/SiC复合材料表面形貌及粗糙度测量

    Figure  3.  Surface morphology and roughness measurement of 2D SiCf/SiC composite material

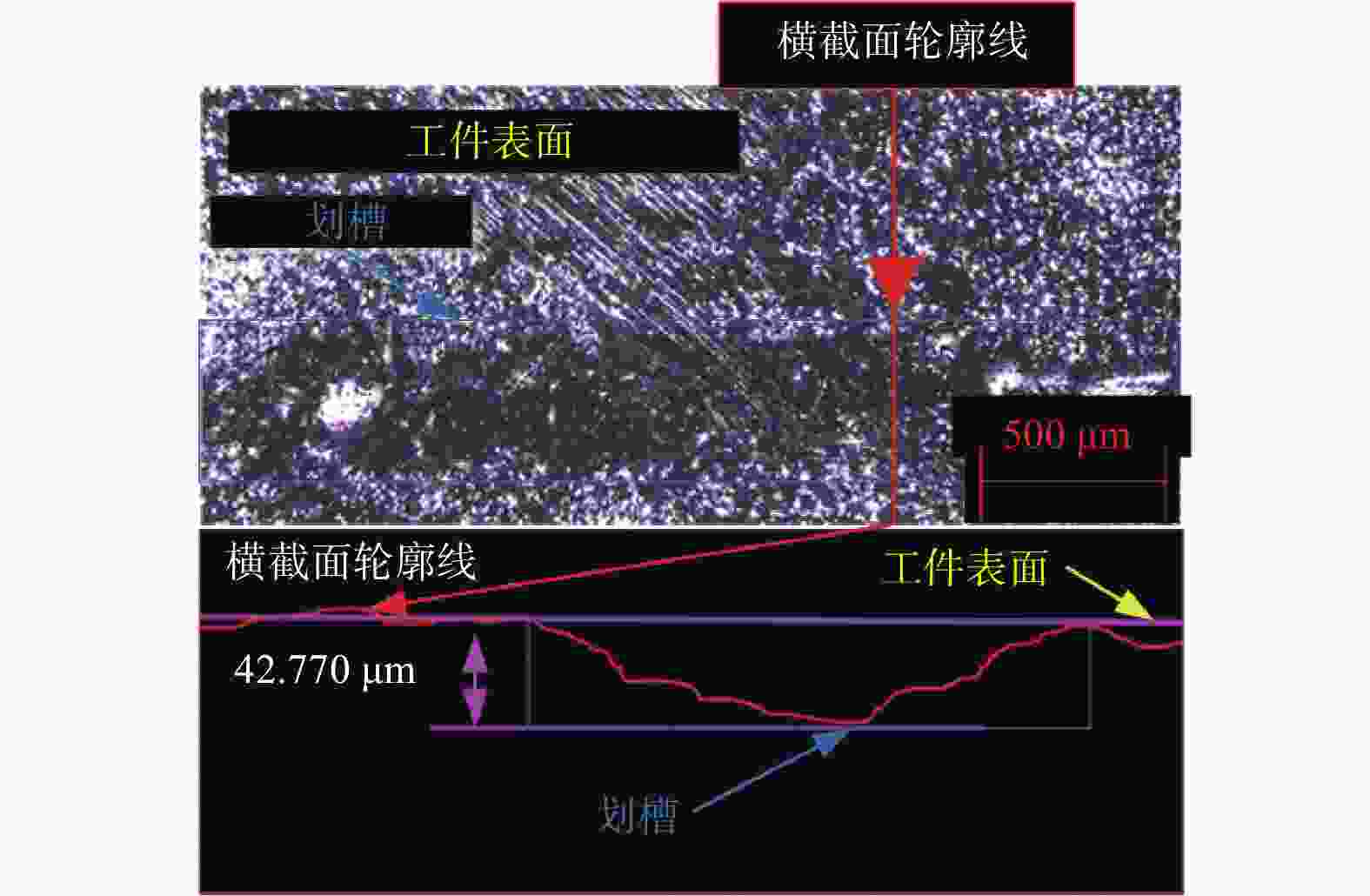

    图  4  2D SiCf/SiC划擦深度测量

    Figure  4.  Measurement of 2D SiCf/SiC scratch depth

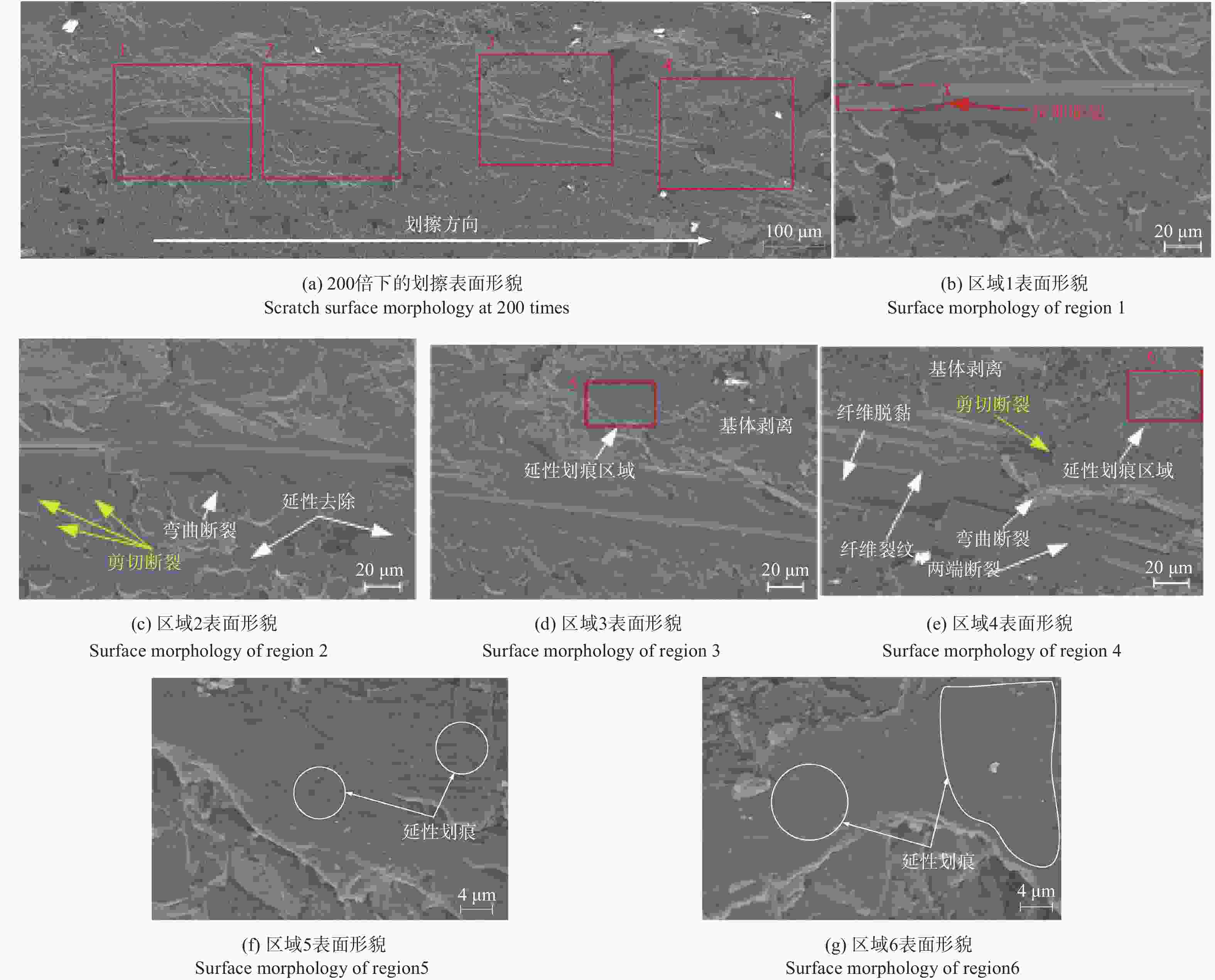

    图  5  WS0方向上的划擦表面形貌

    Figure  5.  Scratch surface morphology in the WS0 direction

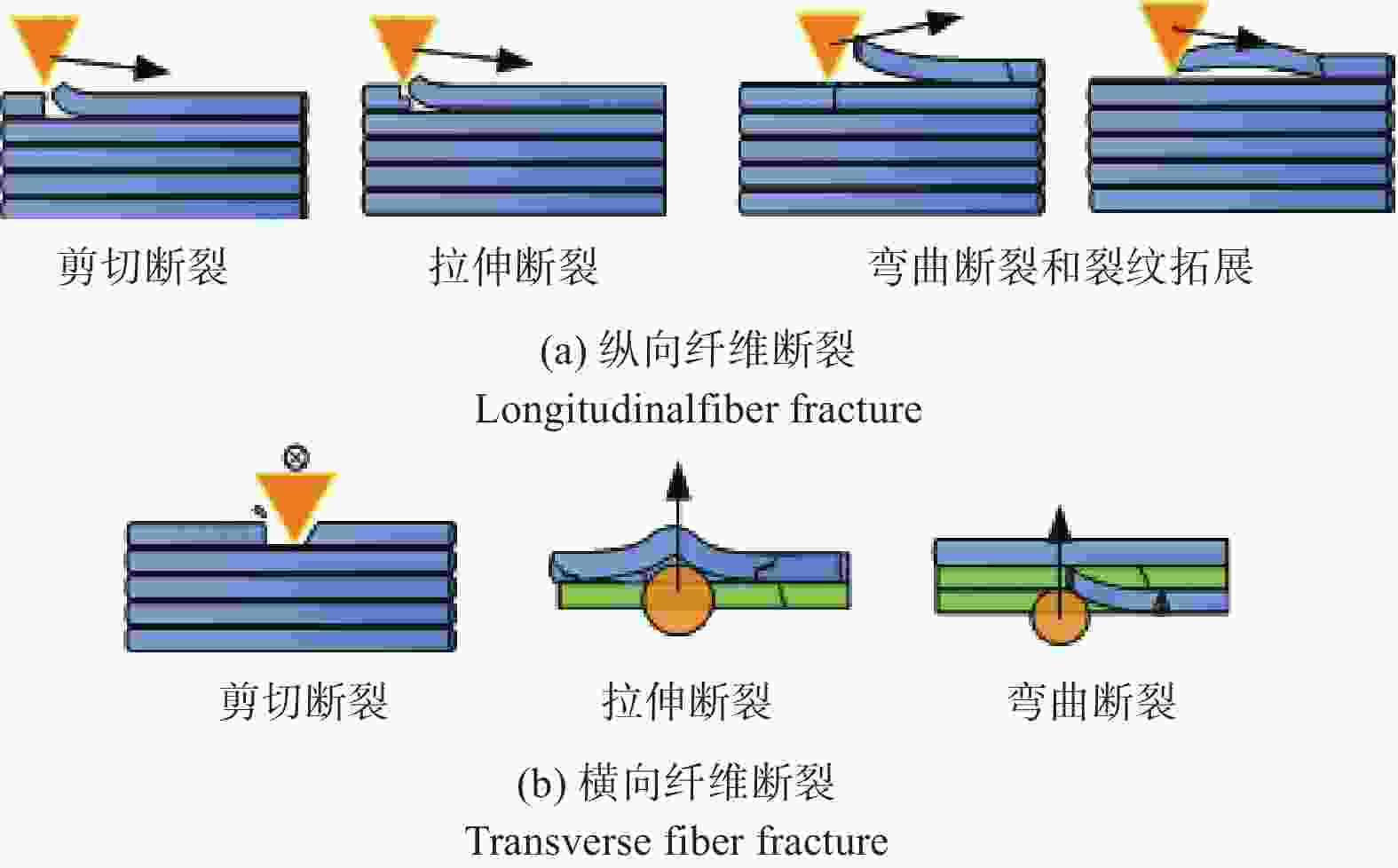

    图  6  WS0方向上的纤维断裂机理示意图

    Figure  6.  Schematic diagram of fiber fracture mechanism in the WS0 direction

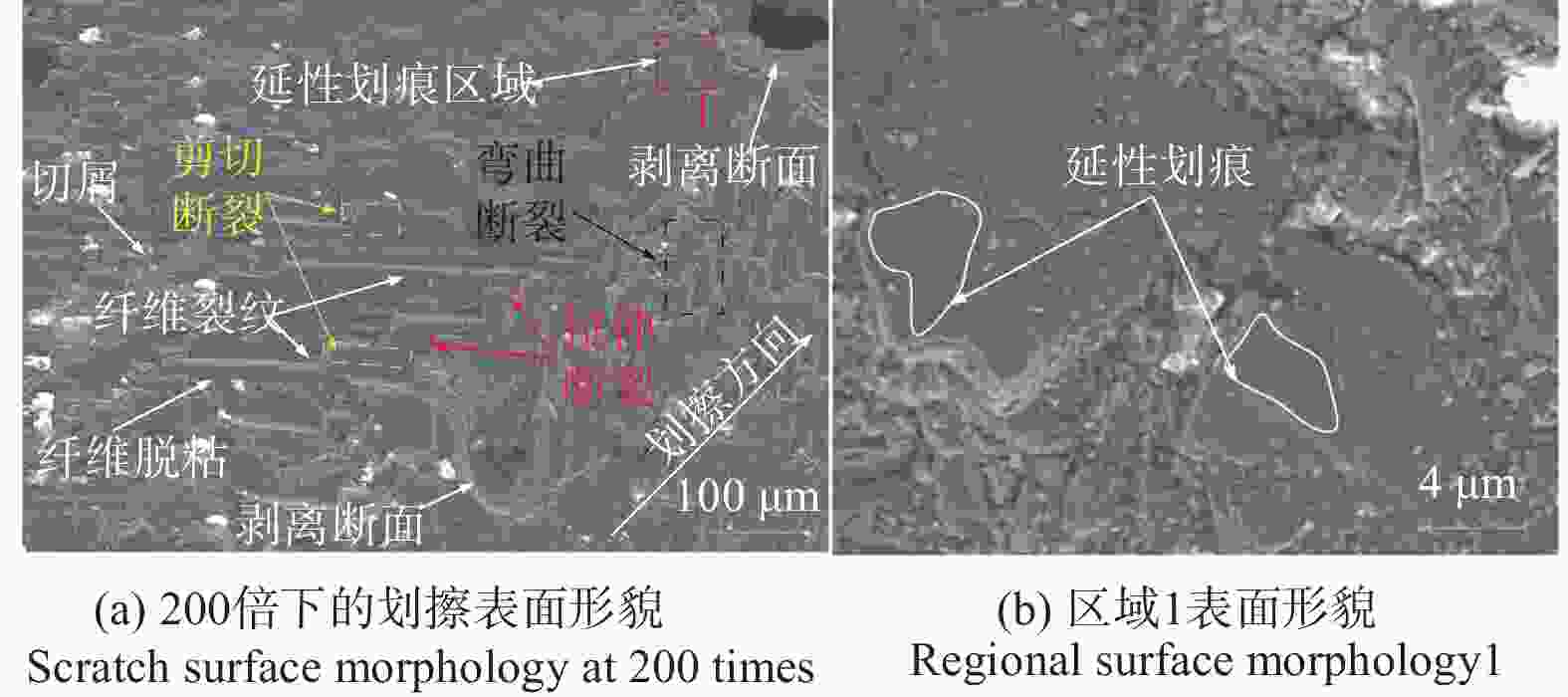

    图  7  WS45方向上的划擦表面形貌

    Figure  7.  Scratch surface morphology in the WS45 direction

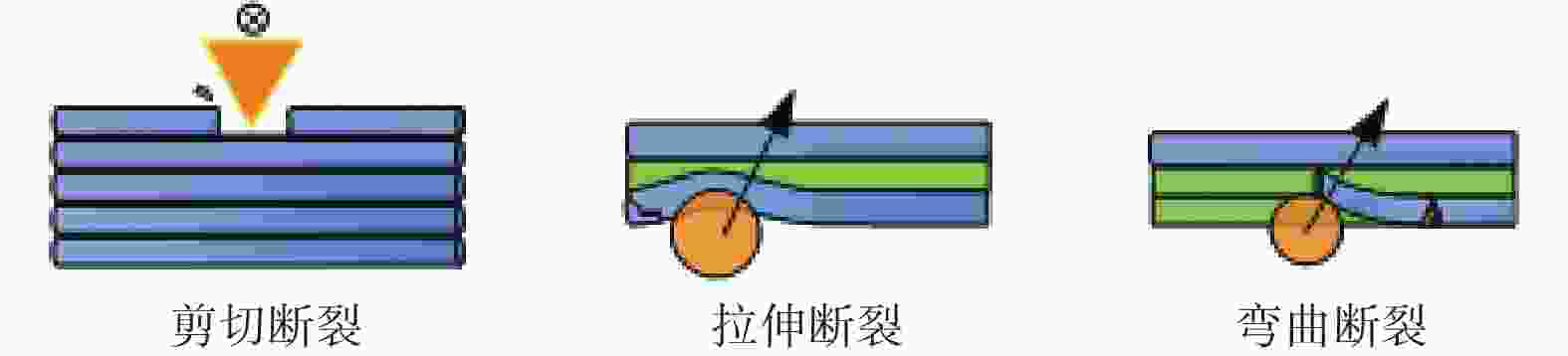

    图  8  WS45方向上横向纤维的去除机理示意图

    Figure  8.  Schematic diagram of longitudinal fiber removal mechanism in the WS45 direction

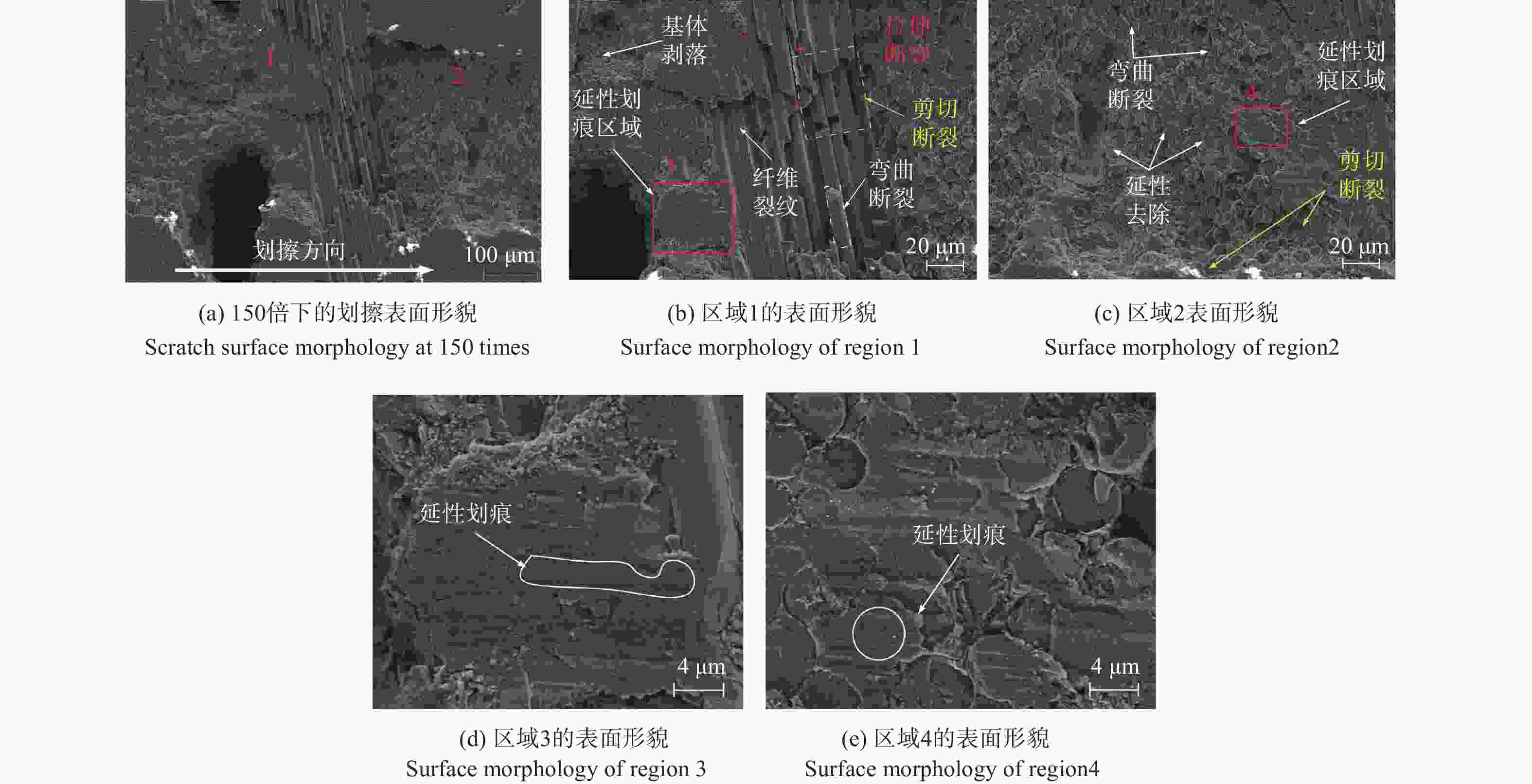

    图  9  SS90方向上的划擦表面形貌

    Figure  9.  Scratch surface morphology in SS90 direction

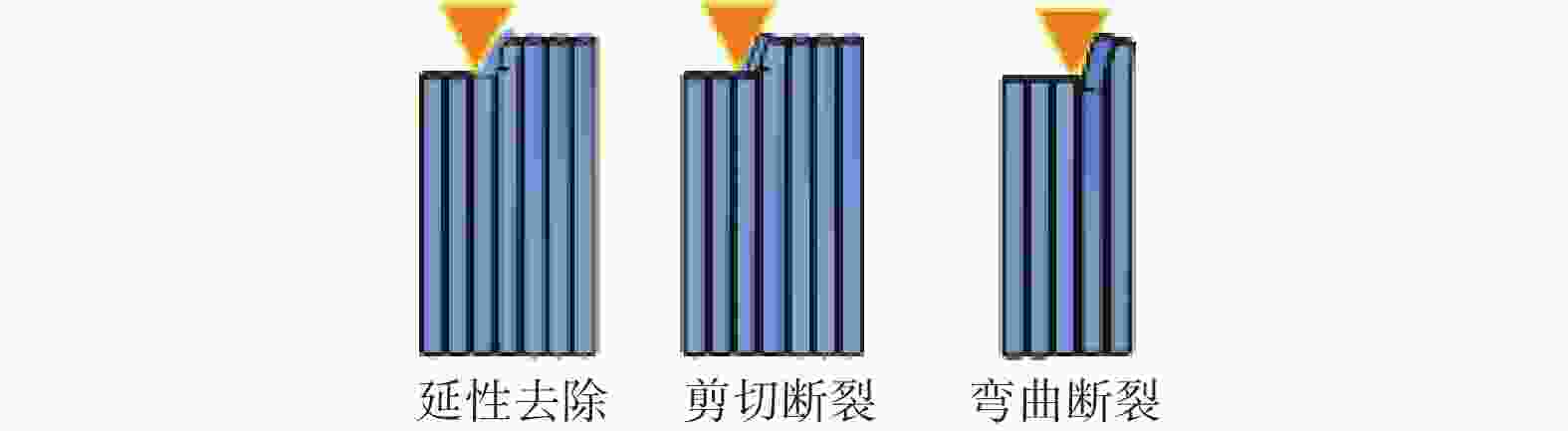

    图  10  SS90方向上法向纤维的去除机理示意图

    Figure  10.  Schematic diagram of normal fiber removal mechanism in the SS90 direction

    图  11  SS0方向上的划擦表面形貌

    Figure  11.  Scratch surface morphology in the SS0 direction

    图  12  测量的2D SiCf/SiC的法向划擦力

    Figure  12.  Measured 2D SiCf/SiC normal scratch force

    表  1  划擦前后金刚石表面形貌

    Table  1.   Surface morphology of diamond before and after scratching

    划擦前 划擦后
    下载: 导出CSV
  • [1] WANG P, LIU F, WANG H, et al. A review of third generation SiC fibers and SiCf/SiC composites [J]. Journal of Materials Science & Technology,2019,35(12):2743-2750.
    [2] WANG X, DING W, ZHAO B. A review on machining technology of aero-engine casings [J]. Journal of Advanced Manufacturing Science and Technology,2022,2(3):2022011. doi: 10.51393/j.jamst.2022011
    [3] BRENNAN J J. Interfacial characterization of a slurry-cast melt-infiltrated SiC/SiC ceramic-matrix composite [J]. Acta Materialia,2000,48(18):4619-4628.
    [4] CHAMBERLAIN A, LANE J. SiC/SiC ceramic matric composites: A turbine engine perspective: Proceedings of engineering conferences international in ultra-high temperature ceramics: Materials for extreme environmental application II [C]. Hernstein: ECI Digital Archives, 2014.
    [5] MURTHY P L N, NEMETH N N, BREWER D N, et al. Probabilistic analysis of a SiC/SiC ceramic matrix composite turbine vane [J]. Composites Part B: Engineering,2008,39(4):694-703. doi: 10.1016/j.compositesb.2007.05.006
    [6] SCHMIDT S, BEYER S, KNABE H, et al. Advanced ceramic matrix composite materials for current and future propulsion technology applications [J]. Acta Astronautica,2004,55(3/4/5/6/7/8/9):409-420.
    [7] KATOH Y, KOYANAGI T, MCDUFFEE J L, et al. Dimensional stability and anisotropy of SiC and SiC-based composites in transition swelling regime [J]. Journal of Nuclear Materials,2018,499:471-479. doi: 10.1016/j.jnucmat.2017.12.009
    [8] 程功, 肖军. 高超音速飞行器热防护材料技术分析 [J]. 航空制造技术,2015,58(S2):43-45.

    CHENG Gong, XIAO Jun. Technical analysis of thermal protection materials for hypersonic aircraft [J]. Aviation Manufacturing Technology,2015,58(S2):43-45.
    [9] AN Q, CHEN J, MING W, et al. Machining of SiC ceramic matrix composites: A review [J]. Chinese Journal of Aeronautics,2021,34(4):540-567. doi: 10.1016/j.cja.2020.08.001
    [10] GAVALDA DIAZ O, GARCIA LUNA G, LIAO Z, et al. The new challenges of machining ceramic matrix composites (CMCs): Review of surface integrity [J]. International Journal of Machine Tools and Manufacture,2019,139:24-36. doi: 10.1016/j.ijmachtools.2019.01.003
    [11] GAVALDA DIAZ O, AXINTE D A, BUTLER-SMITH P, et al. On understanding the microstructure of SiC/SiC ceramic matrix composites (CMCs) after a material removal process [J]. Materials Science and Engineering A,2019,743:1-11. doi: 10.1016/j.msea.2018.11.037
    [12] YIN J, LI M, XU J, et al. Edge chipping characteristics in grinding SiCf/SiC composite [J]. Ceramics International,2022,48(5):7126-7135. doi: 10.1016/j.ceramint.2021.11.272
    [13] YIN J, XU J, DING W, et al. Effects of grinding speed on the material removal mechanism in single grain grinding of SiCf/SiC ceramic matrix composite [J]. Ceramics International,2021,47(9):12795-12802. doi: 10.1016/j.ceramint.2021.01.140
    [14] 殷景飞, 徐九华, 丁文锋, 等. SiCf/SiC 陶瓷基复合材料单颗磨粒磨削试验研究 [J]. 中国机械工程, 2022, 33 (15): 1765-1771.

    YIN Jingfei, XU Jiuhua, DING Wenfeng, et al. Experimental study on single abrasive grinding of SiCf/SiC ceramic matrix composites [J] China Mechanical Engineering, 2022, 33 (15): 1765-1771.
    [15] GARCIA L G, DRAGOS A, DONKA N. Influence of grit geometry and fibre orientation on the abrasive material removal mechanisms of SiC/SiC ceramic matrix composites (CMCs) [J]. International Journal of Machine Tools and Manufacture,2020,157:103580. doi: 10.1016/j.ijmachtools.2020.103580
    [16] LIU Y, QUAN Y, WU C, et al. Single diamond scribing of SiCf/SiC composite: Force and material removal mechanism study [J]. Ceramics International,2021,47(19):27702-27709. doi: 10.1016/j.ceramint.2021.06.195
    [17] LI H, PRINZ S, LIU Y, et al. Experiment and smooth particle hydrodynamic modeling of single-grain diamond scribing of silicon carbide fiber reinforced silicon carbide (SiCf/SiC) [J]. CIRP Annals, 2023.
    [18] ZAN Z, GUO K, SUN J, et al. Investigation on scratching force and material removal mechanism of 3D SiCf/C–SiC composites during single grain scratching [J]. Journal of the European Ceramic Society,2022,42(13):5366-5379. doi: 10.1016/j.jeurceramsoc.2022.05.079
    [19] DONG Z, ZHANG H, KANG R, et al. Mechanical modeling of ultrasonic vibration helical grinding of SiCf/SiC composites [J]. International Journal of Mechanical Sciences,2022,234:107701. doi: 10.1016/j.ijmecsci.2022.107701
    [20] RAN Y, KANG R, DONG Z, et al. Ultrasonic assisted grinding force model considering anisotropy of SiCf/SiC composites [J]. International Journal of Mechanical Sciences,2023,250:108311. doi: 10.1016/j.ijmecsci.2023.108311
    [21] 康仁科, 赵凡, 鲍岩, 等. 超声辅助磨削SiCf/SiC 陶瓷基复合材料 [J]. 金刚石与磨料磨具工程, 2019, 39 (4): 85-91.

    KANG Renke, ZHAO Fan, BAO Yan, et al. Ultrasonic assisted grinding of SiCf/SiC ceramic matrix composites [J] Diamond & Abrasives Engineering, 2019, 39 (4): 85-91.
    [22] XIONG Y F, LIU C, WANG W H, et al. Assessment of machined surface for SiCf/SiC ceramic matrix composite during ultrasonic vibration-assisted milling-grinding [J]. Ceramics International,2023,49(3):5345-5356. doi: 10.1016/j.ceramint.2022.10.058
    [23] ZHANG Q, WANG B, SONG C, et al. Processing strategy of SiCf/SiC composites during single grain scratching under minimum quantity lubrication [J]. The International Journal of Advanced Manufacturing Technology,2023,131(5/6):2477-2495.
    [24] 袁钦, 宋永才. 连续 SiC 纤维和 SiCf/SiC 复合材料的研究进展 [J]. 无机材料学报, 2016, 31 (11): 1157-1165.

    YUAN Qin, SONG Yongcai. Research progress on continuous SiC fibers and SiCf/SiC composites [J] Journal of Inorganic Materials, 2016, 31 (11): 1157-1165.
    [25] HINOKI T, LARA-CURZIO E, SNEAD L L. Mechanical properties of high purity SiC fiber-reinforced CVI-SiC matrix composites [J]. Fusion Science and Technology,2003,44(1):211-218. doi: 10.13182/FST03-A336
    [26] 李文鹏, 沈兴全, 郐红艺, 等. 纤维角度和切削深度对碳纤维复合材料切削性能的影响仿真 [J]. 工具技术,2017,51(8):64-67. doi: 10.3969/j.issn.1000-7008.2017.08.016

    LI Wenpeng, SHEN Xingquan, KUAI Hongyi, et al. Simulation of the influence of fiber angle and cutting depth on the cutting performance of carbon fiber composite materials [J]. Tool Technology,2017,51(8):64-67. doi: 10.3969/j.issn.1000-7008.2017.08.016
