Effect of Ti powder particle sizes and raw material ratio on properties of Ti-coated diamond powder

HAN Ming^1
,,
ZHAO Andong¹,
LI Liang^{2
, ,}

1.
Henan Building Materials Research and Design Institute Co., Ltd., Zhengzhou 450002, China
2.
School of Intelligent Manufacturing and Electrical Engineering, Nanyang Normal University, Nanyang 473061, Henan, China

摘要

摘要: 为探索不同Ti粉粒径和原料配比对镀Ti金刚石粉性能的影响，通过对比不同Ti粉粒径,粗粉（60目，250 µm）和细粉（325目，45 µm），以及原料配比等因素，对金刚石粉表面的镀Ti效果进行研究。结果表明：镀Ti金刚石粉表面的化学成分为金刚石、Ti和TiC；细Ti粉Ar气氛保护下合成Ti包覆金刚石的质量增长大于粗Ti粉包覆金刚石和真空环境Ti包覆金刚石的。结合拉曼光谱、紫外吸收光谱和热分析结果，金刚石表面镀Ti的反应中，Ti粉粒径越细越有利于包覆层形成，且包覆层表面粗糙度越小；原料配比中Ti粉与金刚石质量比越大，包覆层越厚。
- 磨料镀覆 /
- 金刚石粉 /
- Ti粉 /
- 拉曼光谱 /
- 热分析
Abstract: Objectives Titanium plating on the surface of diamond powder can improve its wettability to the bonding agent, and the preparation process of the titanium-plated metal layer is of great significance to the industrial application of diamond powder. The effect of particle size and raw material ratio of Ti powder on the properties of Ti coated diamond powder is analyzed. Methods Different particle sizes (60 mesh coarse powder, ~250 μm and 325 mesh fine powder, ~45 μm) and raw material ratios are compared, and so are the vacuum and protective atmosphere titanium plating process. The experiments involve diamond particles, fine titanium powder, and titanium powder. The materials are immersed in hydrochloric acid and washed twice with acetone. Four ratios (5:3, 2:1, 1:1, 1:2) are set based on the mass ratio of diamond and titanium powder. The materials are sintered under vacuum or Ar protective atmospheres, and the Ti powder slag and Ti-coated diamond particles are separated. Results The chemical composition of titanium-coated diamond powders is characterized by XRD as diamond, Ti, and TiC transition layers. The morphology of titanium coated diamond powders and the distribution of elements on the surface are analyzed by SEM, which shows that Ti coating on the surface of diamond particles could be achieved with different ratios and Ti powder particle sizes. The Raman spectra of fine Ti-coated diamond contain characteristic peaks of diamond and Ti, while those of coarse Ti-coated diamond and Ti-coated diamond synthesized in a vacuum atmosphere are affected by the ratio of raw materials. The UV-visible absorption spectra show that there are obvious absorption peaks in the wavelength region of 228-234 nm and 328-350 nm for Ti-coated diamond, respectively. The weight loss rates of vacuum-synthesized titanium-coated diamond and fine-grained Ti-coated diamond are lower than those of coarse-grained Ti-coated diamond. Conclusions Combined with the results of Raman spectra, ultraviolet absorption spectra, and thermal analyses, the performance of fine Ti-coated diamonds under argon atmosphere protection is better than that of coarse Ti powder-coated diamonds and vacuum atmosphere-coated diamonds.
- abrasive coating technology /
- diamond powder /
- Ti powder /
- Raman spectroscopy /
- thermal analysis

HTML全文

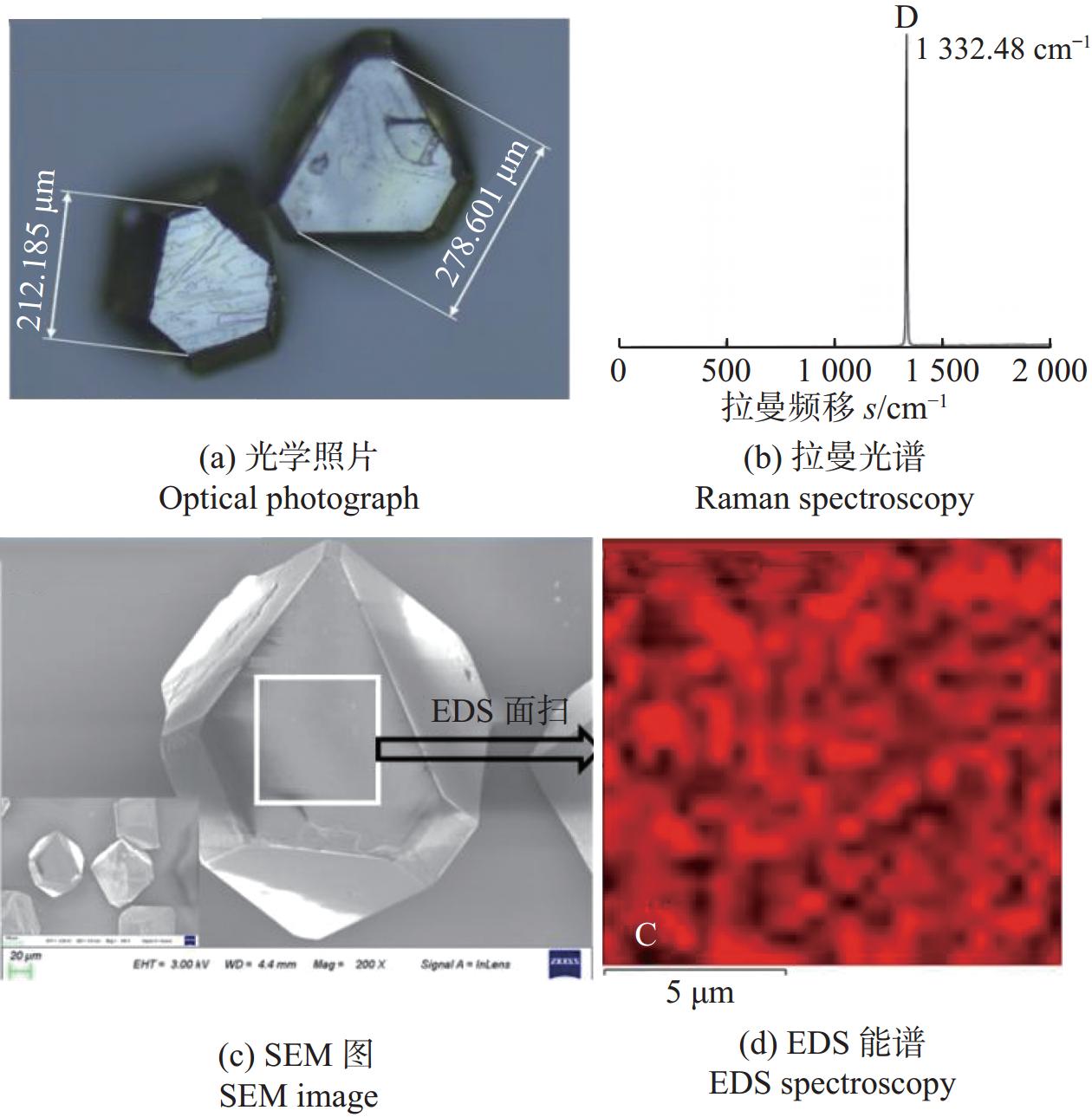

图 1 未包覆金刚石颗粒表征

Figure 1. Characterization of uncoated diamond particles

下载: 全尺寸图片幻灯片

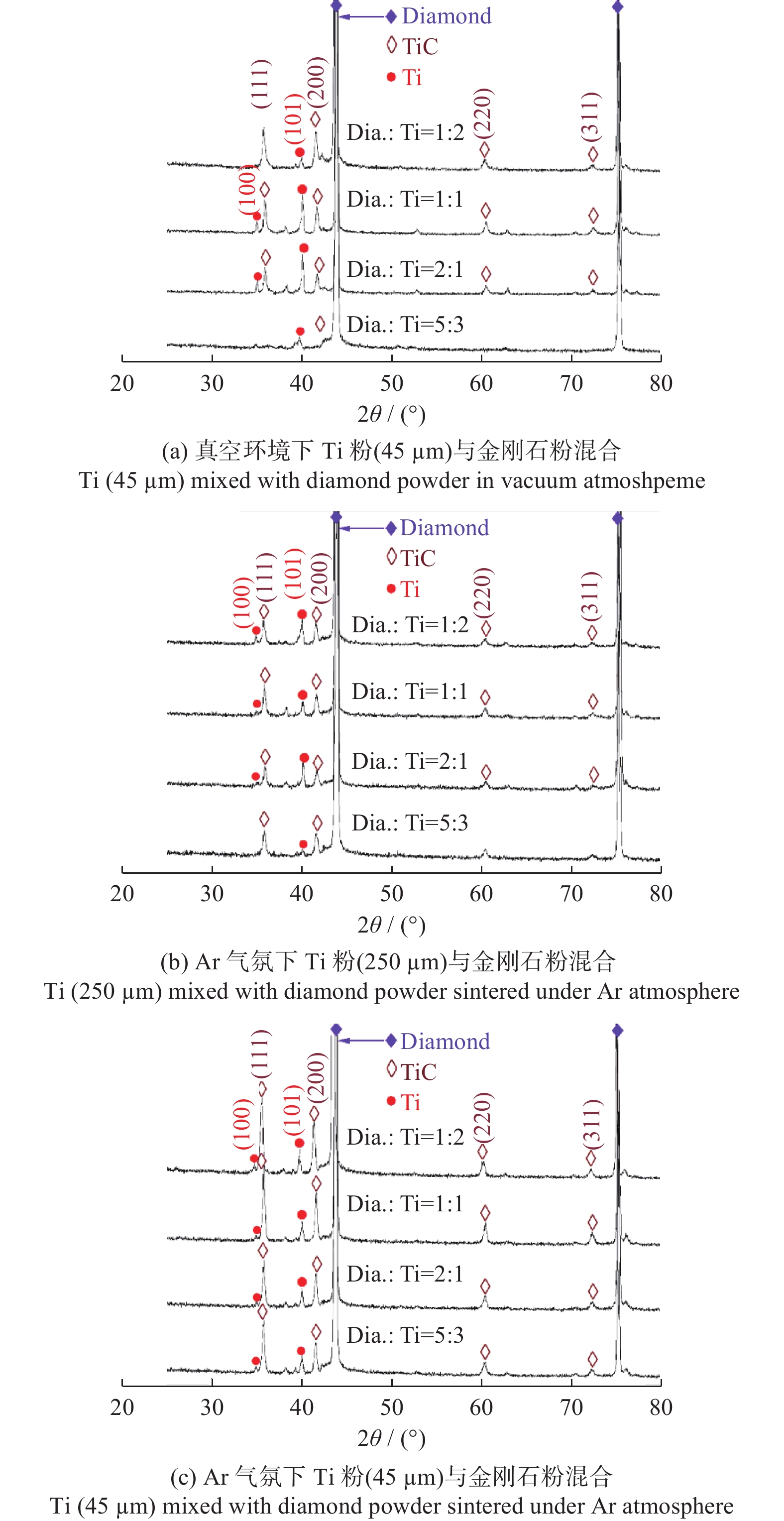

图 2 不同原料配比合成的Ti包覆金刚石的XRD图谱

Figure 2. XRD patterns of Ti-coated diamond synthesized with different raw materials ratios

下载: 全尺寸图片幻灯片

图 3 真空环境下合成的Ti包覆金刚石的SEM照片

Figure 3. SEM image of Ti-coated diamond synthesized under vacuum atmosphere

下载: 全尺寸图片幻灯片

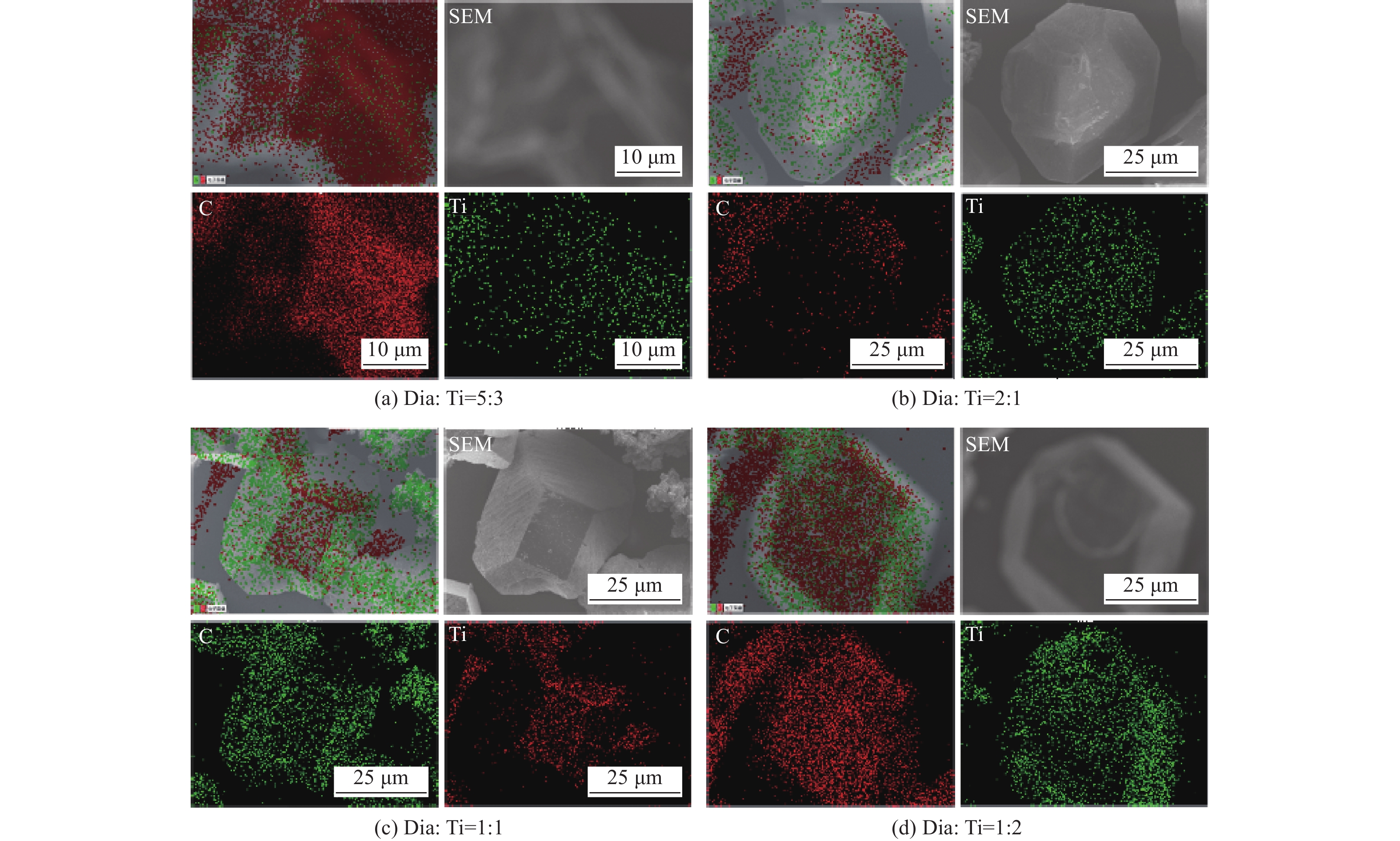

图 4 真空环境下合成的Ti包覆金刚石的EDS结果

Figure 4. EDS results of Ti-coated diamond synthesized under vacuum atmosphere

下载: 全尺寸图片幻灯片

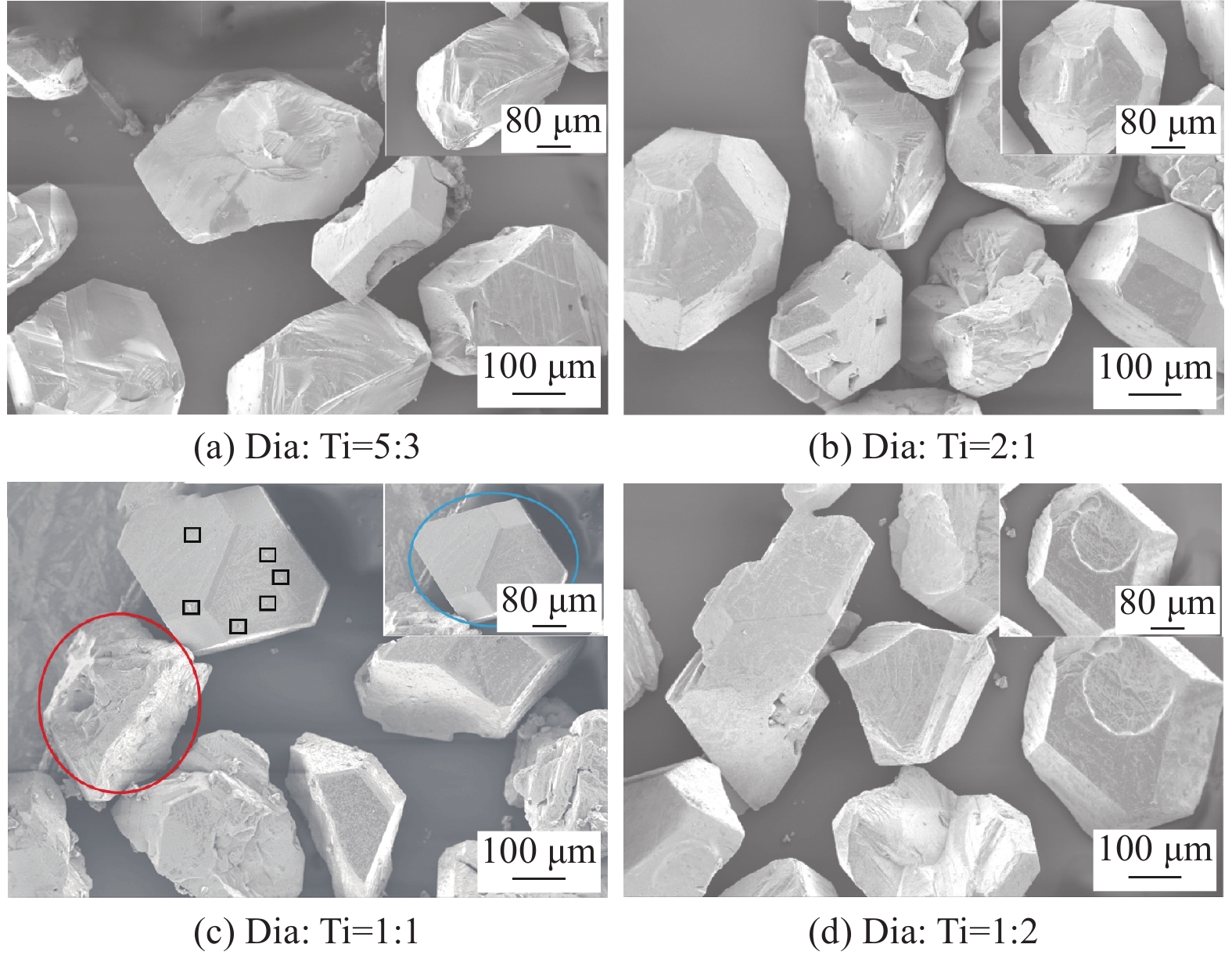

图 5 Ti粉(250 µm)在Ar气氛下合成的Ti包覆金刚石的SEM照片

Figure 5. SEM photographs of Ti-coated diamond synthesized by Ti powder (250 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

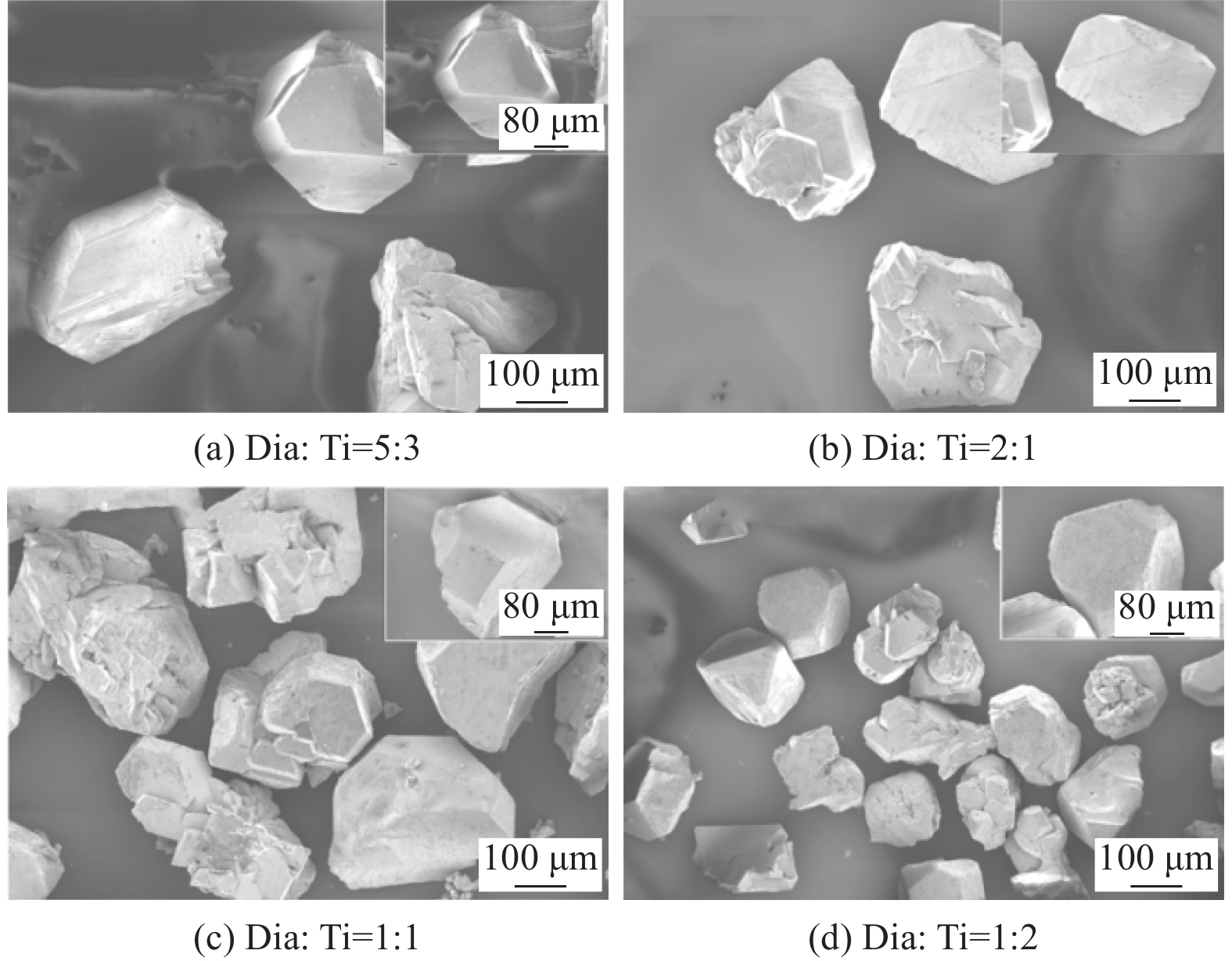

图 6 Ti粉(45 µm)在Ar气氛下合成的Ti包覆金刚石的SEM照片

Figure 6. SEM photographs of Ti-coated diamond synthesized by Ti powder (45 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

图 7 Ti粉(250 µm)在Ar气氛下合成的Ti包覆金刚石的EDS结果

Figure 7. EDS results of Ti-coated diamond synthesized by Ti powder (250 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

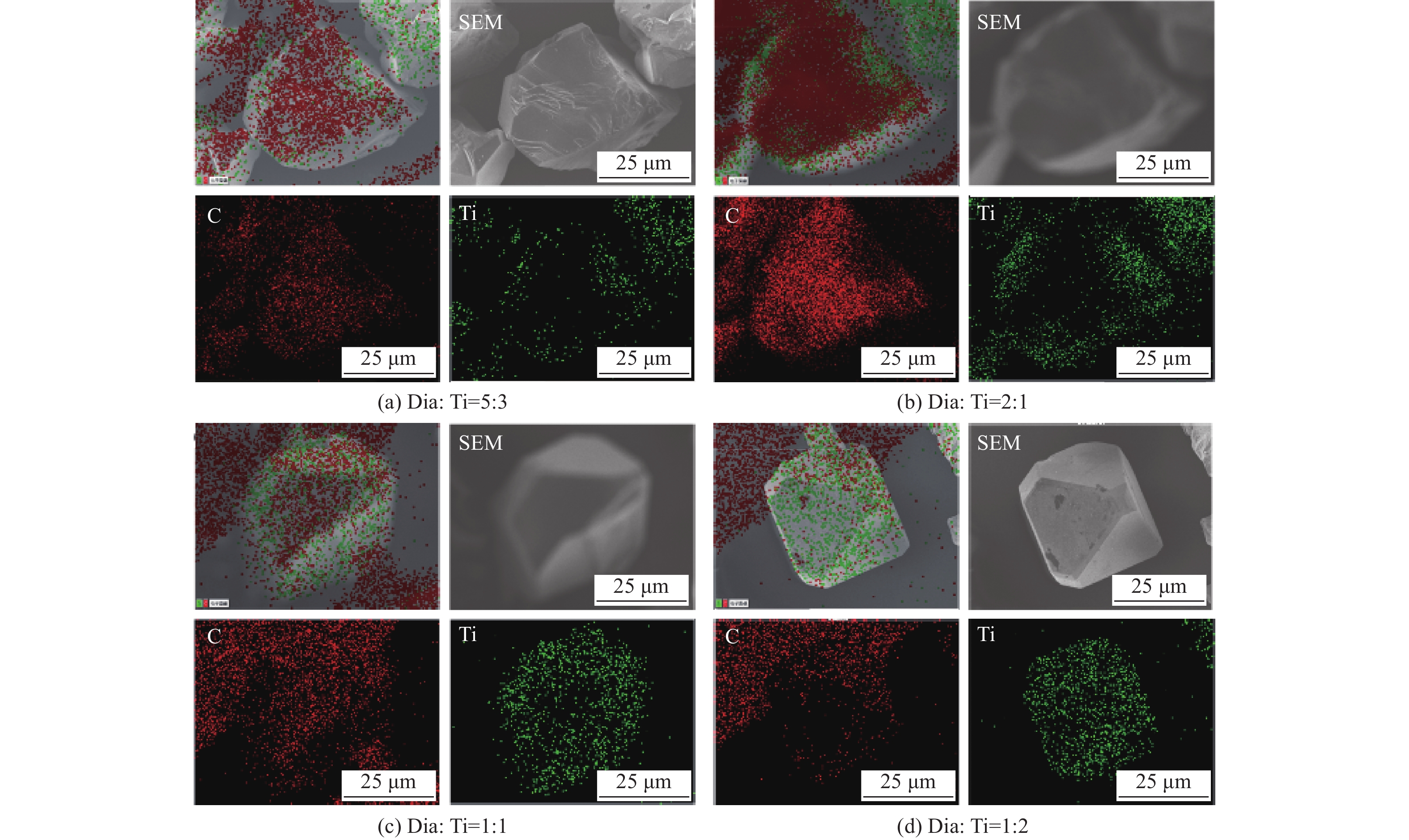

图 8 Ti粉(45 µm)在Ar气氛下合成的Ti包覆金刚石的EDS结果

Figure 8. EDS results of Ti-coated diamond synthesized by Ti powder (45 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

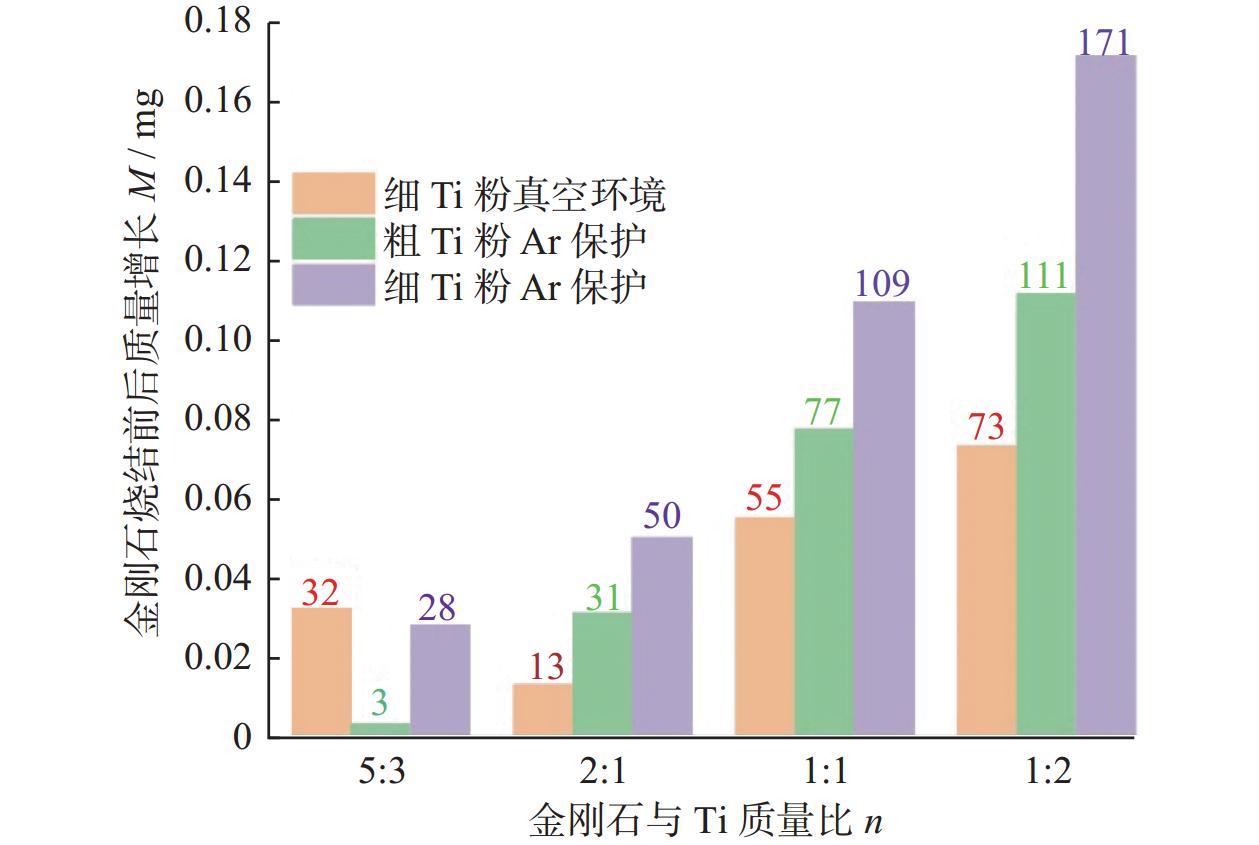

图 9 金刚石烧结前后增重

Figure 9. Increased mass of diamond after sintering

下载: 全尺寸图片幻灯片

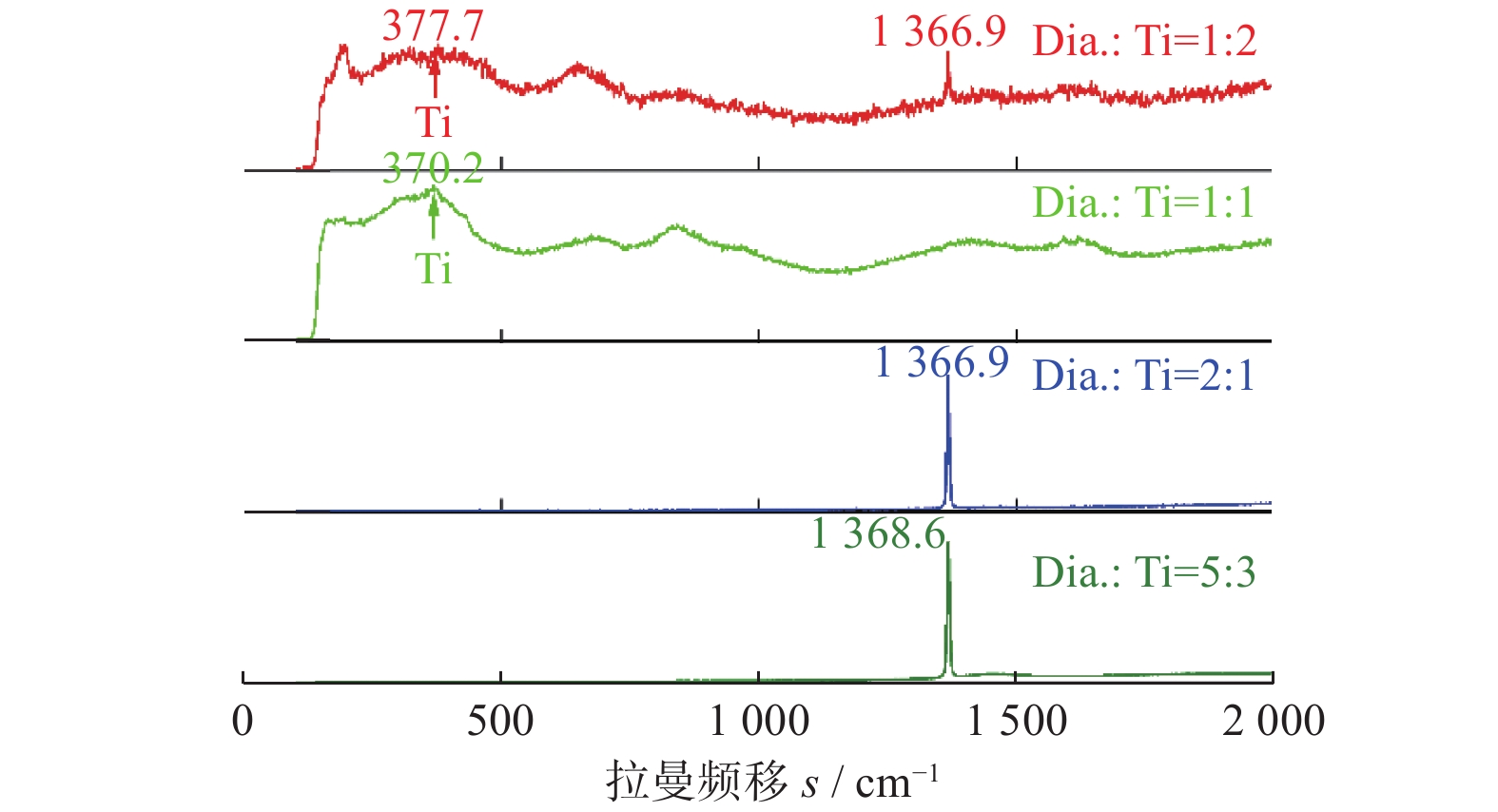

图 10 真空环境下合成的Ti包覆金刚石的拉曼光谱

Figure 10. Raman spectra of Ti-coated diamond synthesized under vacuum atmosphere

下载: 全尺寸图片幻灯片

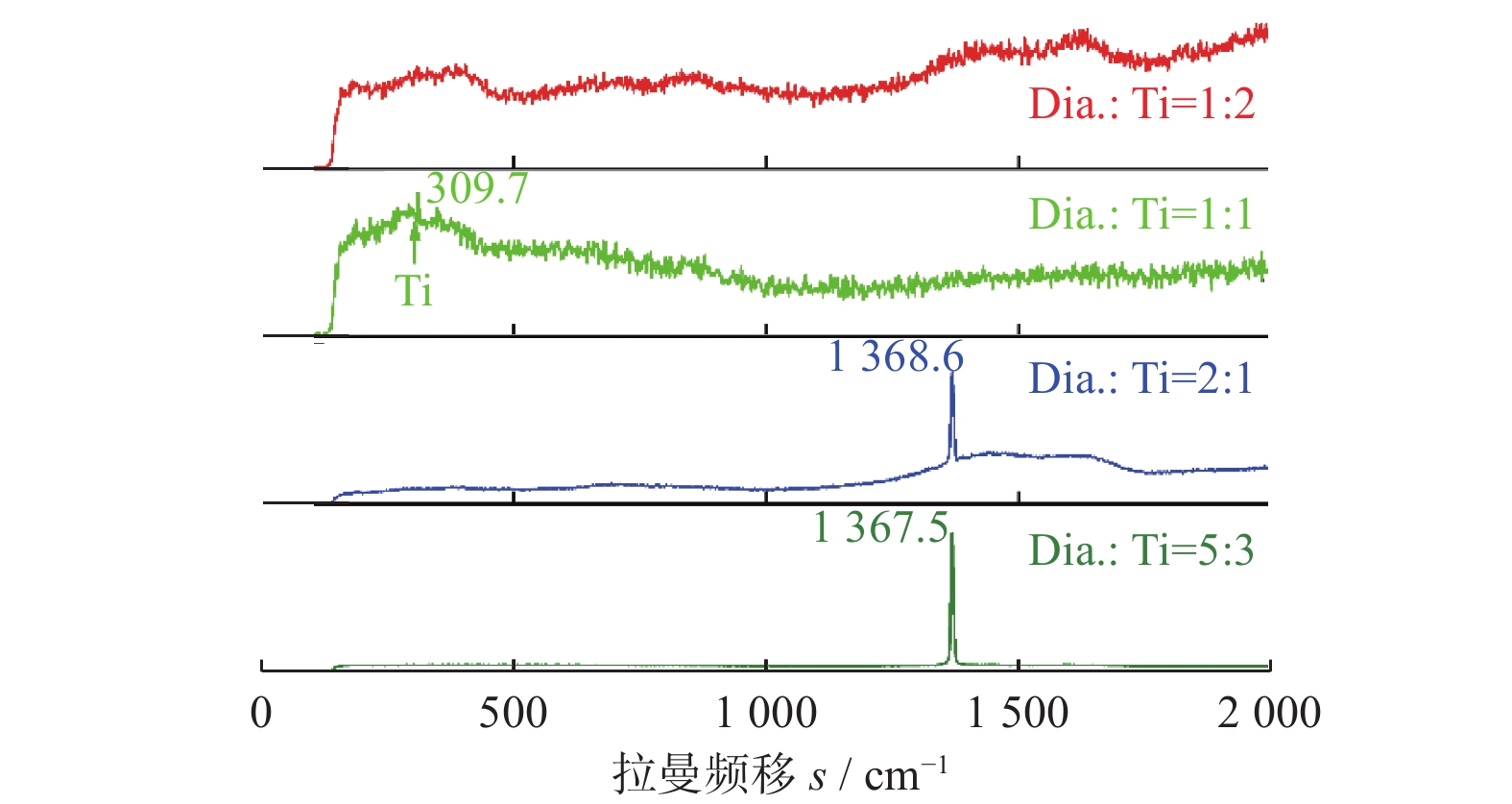

图 11 Ti粉(250 µm)在Ar气氛下合成Ti包覆金刚石的拉曼光谱

Figure 11. Raman spectra of Ti-coated diamond synthesized by Ti powder (250 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

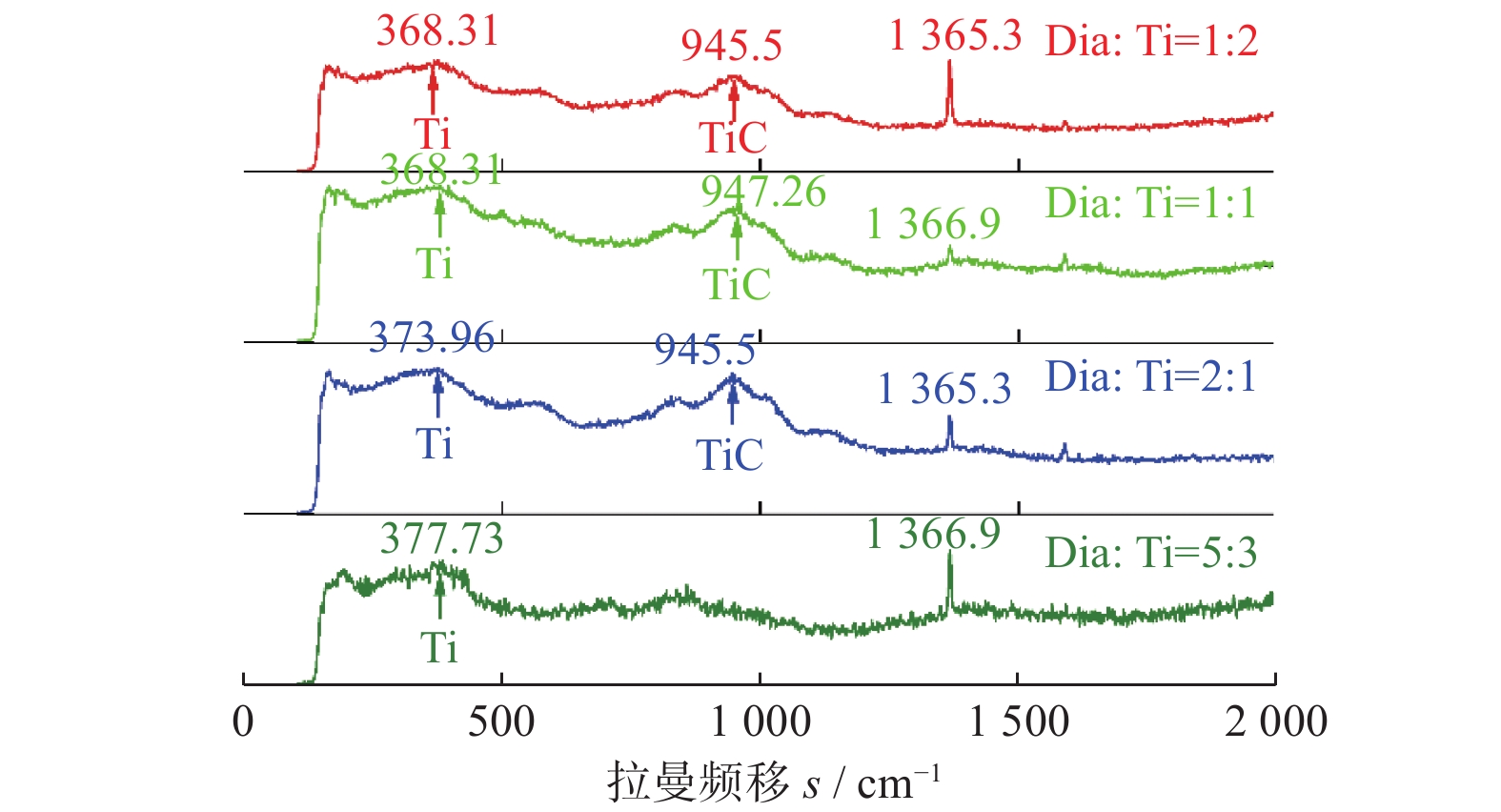

图 12 Ti粉(45 µm)在Ar气氛下合成Ti包覆金刚石的拉曼光谱

Figure 12. Raman spectra of Ti-coated diamond synthesized by Ti powder (45 µm) under Ar atmosphere

下载: 全尺寸图片幻灯片

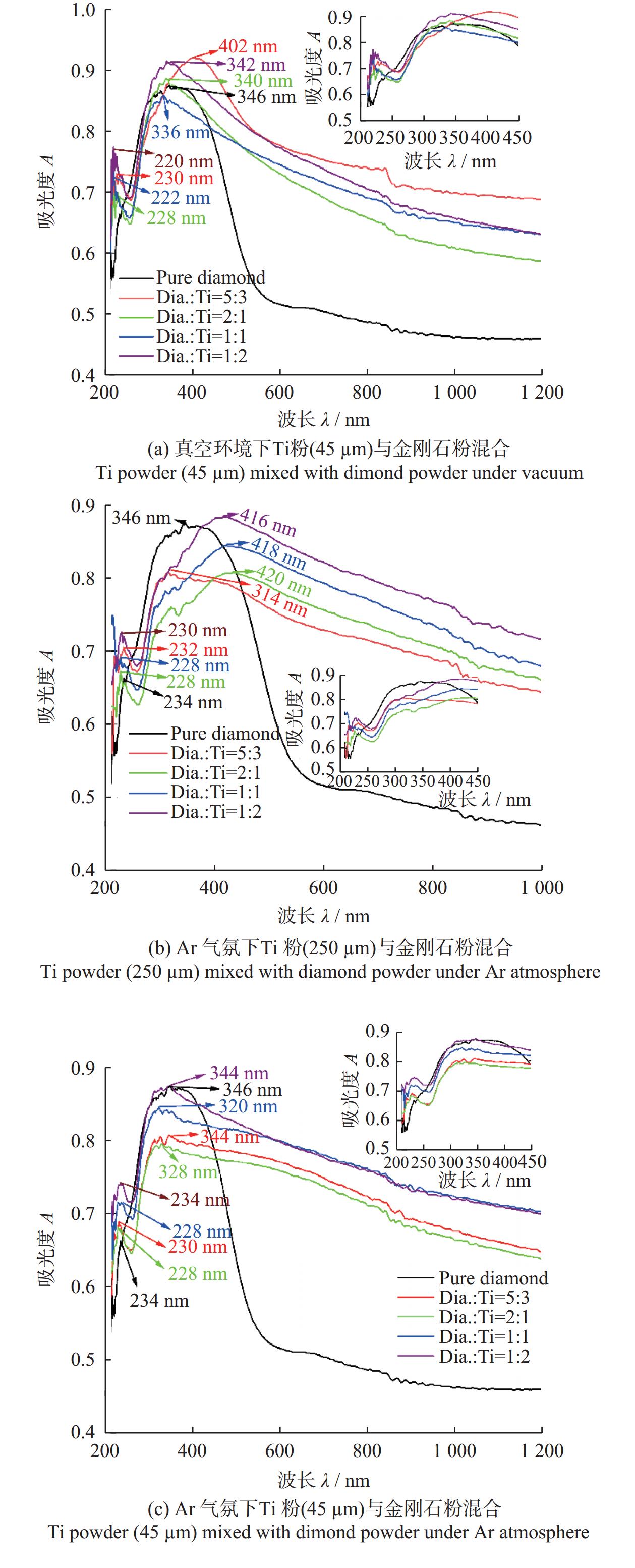

图 13 不同原料配比合成的Ti包覆金刚石的紫外吸收光谱

Figure 13. UV absorption spectra of Ti-coated diamond synthesized with different raw materials ratios

下载: 全尺寸图片幻灯片

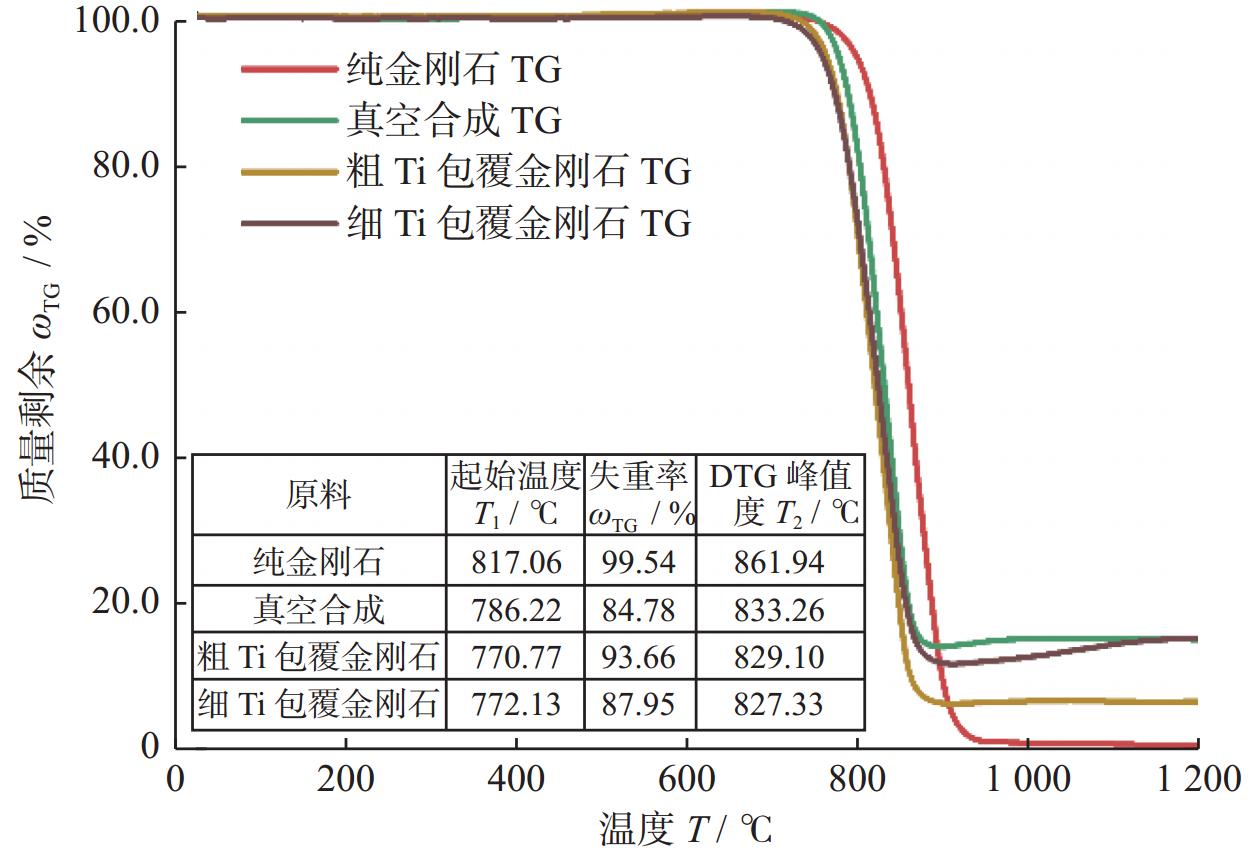

图 14 未包覆金刚石和Ti包覆金刚石的TG-DSC热分析结果

Figure 14. TG-DSC thermal analysis results of uncoated and Ti-coated diamonds

下载: 全尺寸图片幻灯片

图 15 Ti包覆金刚石颗粒的反应机理

Figure 15. Reaction mechanism of Ti-coated diamonds

下载: 全尺寸图片幻灯片
