光学玻璃CMP用LaCePr抛光液制备及其组织和性能

张全鑫 李虎平 史俊龙 宿爱 陈贵青 谢浩 金玉培 胡广寿

张全鑫, 李虎平, 史俊龙, 宿爱, 陈贵青, 谢浩, 金玉培, 胡广寿. 光学玻璃CMP用LaCePr抛光液制备及其组织和性能[J]. 金刚石与磨料磨具工程, 2024, 44(6): 816-824. doi: 10.13394/j.cnki.jgszz.2023.0225
引用本文: 张全鑫, 李虎平, 史俊龙, 宿爱, 陈贵青, 谢浩, 金玉培, 胡广寿. 光学玻璃CMP用LaCePr抛光液制备及其组织和性能[J]. 金刚石与磨料磨具工程, 2024, 44(6): 816-824. doi: 10.13394/j.cnki.jgszz.2023.0225
ZHANG Quanxin, LI Huping, SHI Junlong, SU Ai, CHEN Guiqing, XIE Hao, JIN Yupei, HU Guangshou. Preparation, microstructure and properties of LaCePr polishing slurry for optical glass CMP[J]. Diamond & Abrasives Engineering, 2024, 44(6): 816-824. doi: 10.13394/j.cnki.jgszz.2023.0225
Citation: ZHANG Quanxin, LI Huping, SHI Junlong, SU Ai, CHEN Guiqing, XIE Hao, JIN Yupei, HU Guangshou. Preparation, microstructure and properties of LaCePr polishing slurry for optical glass CMP[J]. Diamond & Abrasives Engineering, 2024, 44(6): 816-824. doi: 10.13394/j.cnki.jgszz.2023.0225

光学玻璃CMP用LaCePr抛光液制备及其组织和性能

doi: 10.13394/j.cnki.jgszz.2023.0225
基金项目: 甘肃稀土新材料股份有限公司内部科研项目(GSXT2023E029); 国家自然科学基金资助项目(59493300); 教育部博士点基金资助项目(9800462)。
详细信息
    作者简介:

    张全鑫,男,1993年生,硕士、工程师。主要研究方向:稀土抛光粉制备及其产业化应用。Email:quanxinZhang@163.com

  • 中图分类号: TG73; TG58; TF845

Preparation, microstructure and properties of LaCePr polishing slurry for optical glass CMP

  • 摘要: 以包头混合型稀土矿经浓硫酸强化焙烧、水浸、中和除杂、P507萃取转型分级的产物为原料配制LaCePr氯化液,以碳酸氢铵和氨水的混合液为沉淀剂,氢氟酸为氟化剂,聚丙烯酸钠、六偏磷酸钠、氢氧化钠等为添加助剂,通过并流沉淀、氟化、高温焙烧、引入助剂、调浆湿法球磨等工序成功制备LaCePr稀土CMP抛光液。借助扫描电子显微镜(SEM)、透射电子显微镜(TEM)、X-Ray衍射仪(XRD)、平面精密研磨抛光机及光学3D表面轮廓仪对制备的抛光液性能进行表征。结果表明:La、Pr和F元素均以溶质原子固溶的方式进入CeO2晶格中,LaCePr抛光液风干后样品中的立方萤石结构CeO2、四方结构LaOF、面心立方Pr6O11起协同CMP作用。累积抛光H-K9L光学玻璃片120 min后,其最大抛蚀速率可达219.7 nm/min,表面粗糙度Sa由抛光前的1.123 nm降至抛光后的0.668 nm。相同条件下用于对比测试的LaCe抛光液的最大抛蚀速率仅为199.9 nm/min,且抛光后的表面粗糙度Sa降至0.659 nm。因此,制备的LaCePr CMP抛光液综合性能较优。

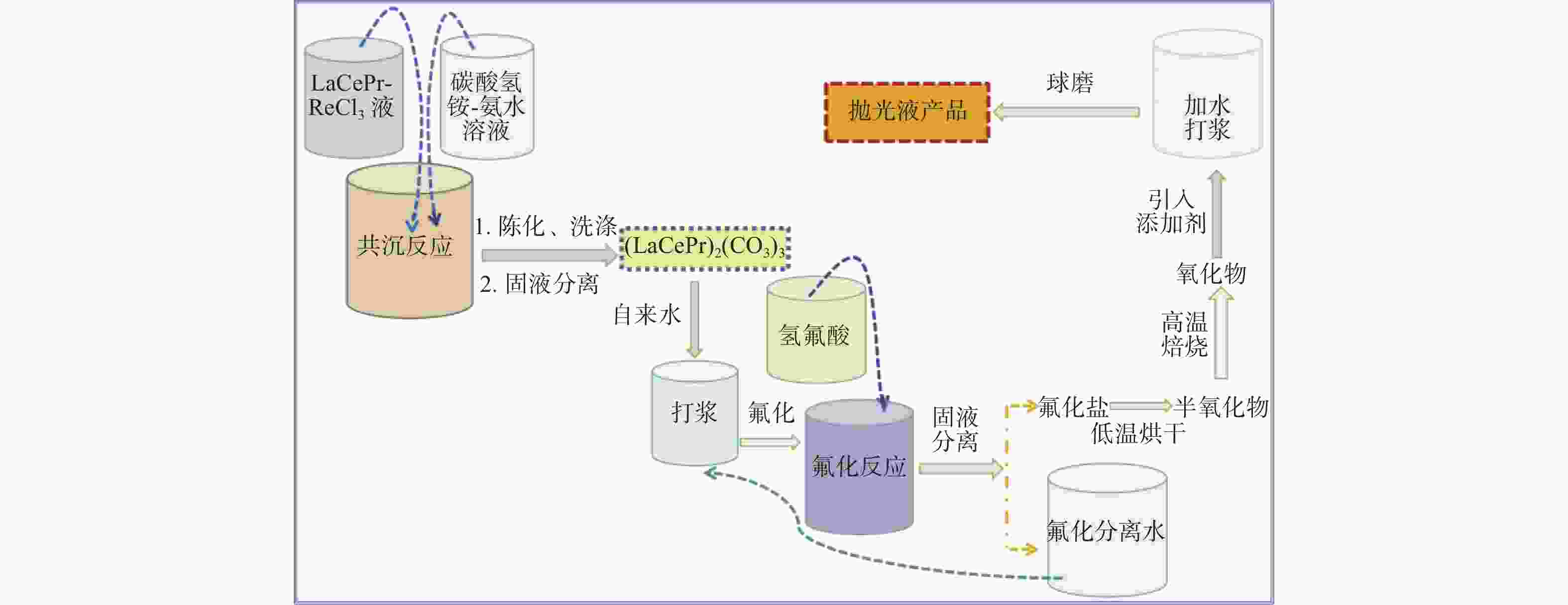

  • 图  1  稀土抛光液制备工艺流程

    Figure  1.  Preparation process flow of rare earth polishing slurry

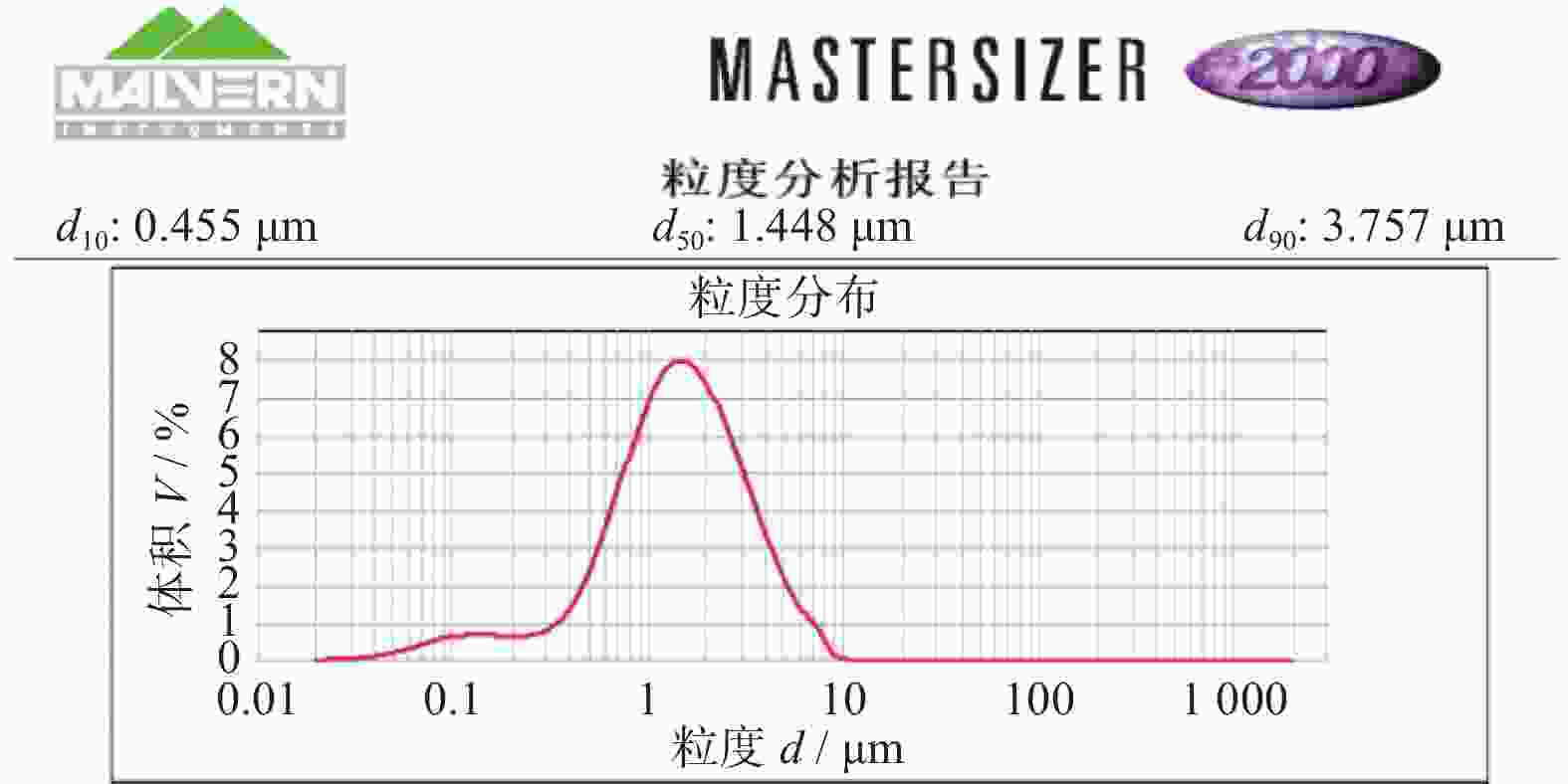

    图  2  稀土抛光液粒径测试

    Figure  2.  Particle size test for rare earth polishing slurry

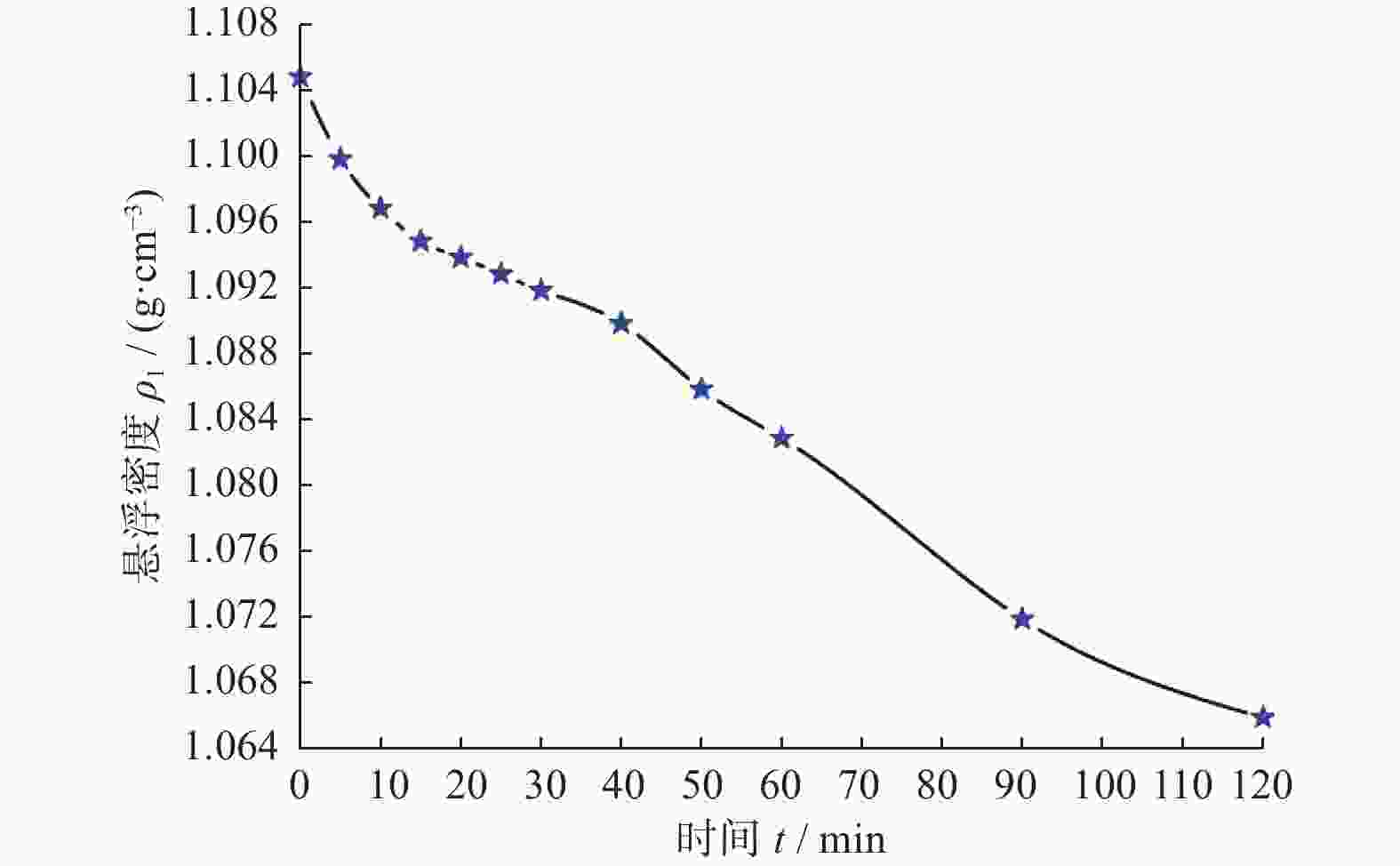

    图  3  稀土抛光液的悬浮密度测试

    Figure  3.  Suspension density test of rare earth polishing slurry

    图  4  抛光液风干后样品的SEM形貌

    Figure  4.  SEM morphology of sample after air drying of polishing slurry

    图  5  稀土抛光液风干后样品的TEM照片

    Figure  5.  TEM photo of sample of rare earth polishing slurry after air drying

    图  6  稀土抛光液风干样品的TEM及元素分布照片

    Figure  6.  TEM and element distribution photos of rare earth polishing slurry sample after air drying

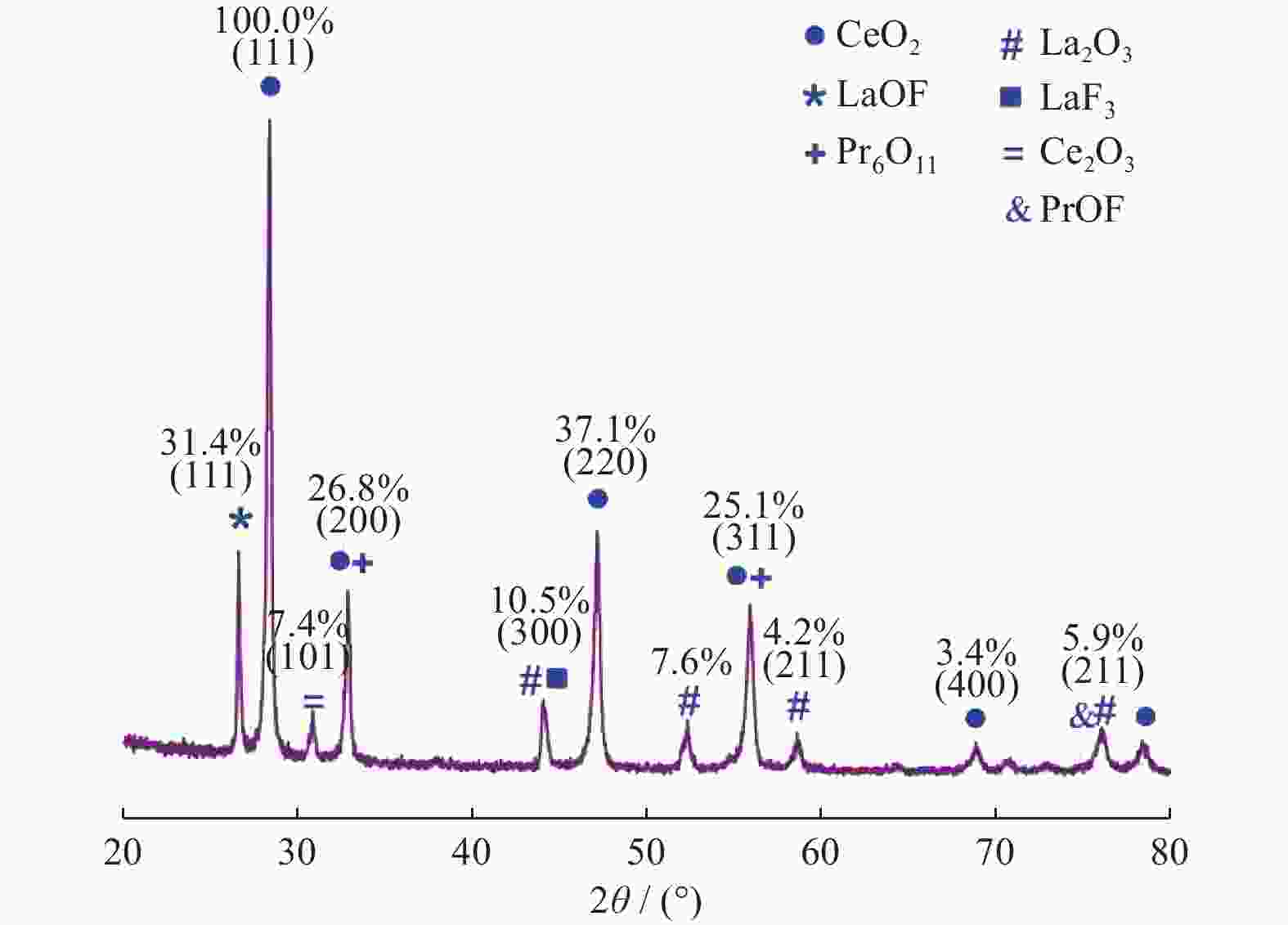

    图  7  稀土抛光液风干样品的XRD图谱

    Figure  7.  XRD pattern of rare earth polishing slurry sample after air drying

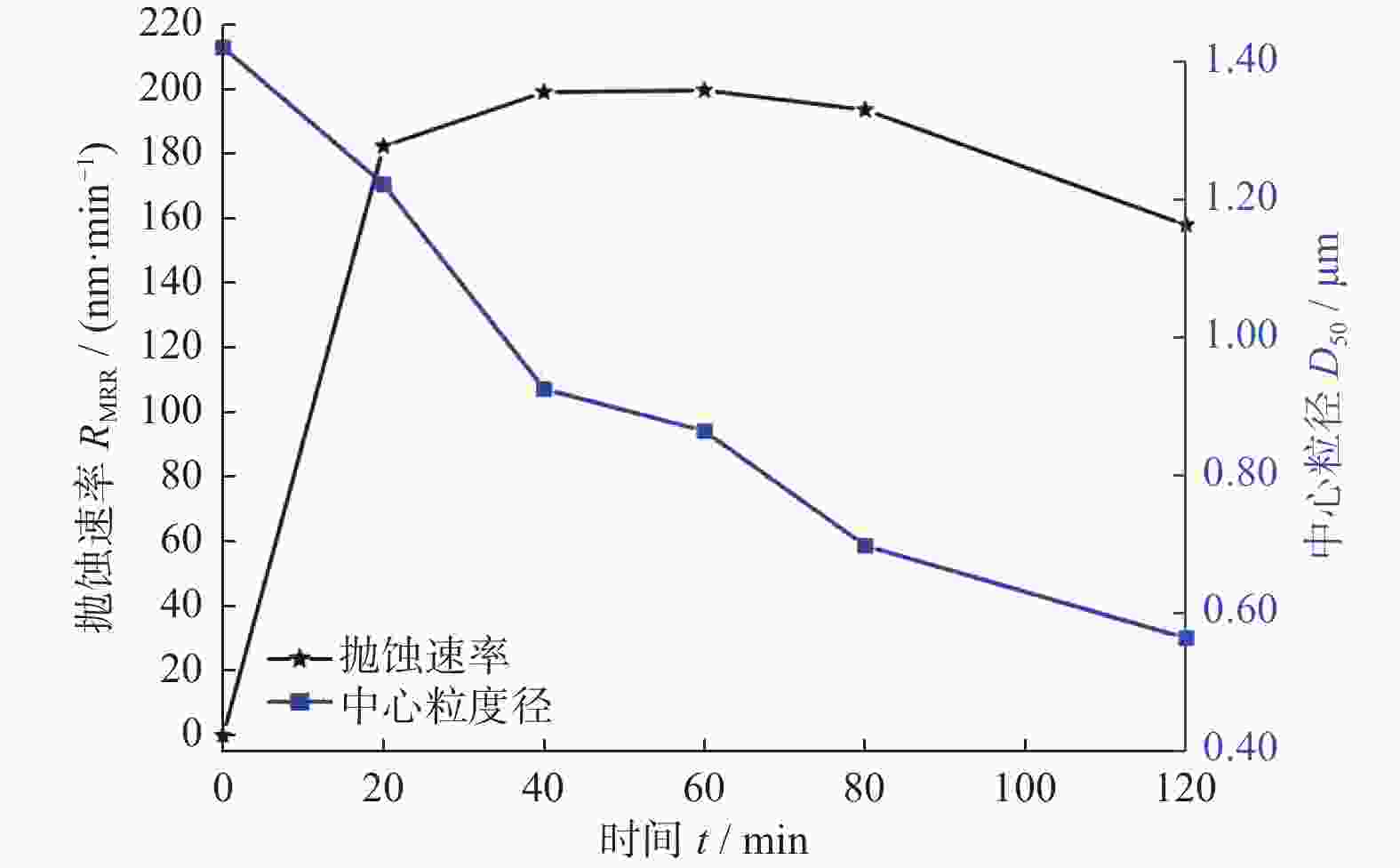

    图  8  LaCe稀土抛光液抛光性能

    Figure  8.  Polishing performance of LaCe rare earth polishing slurry

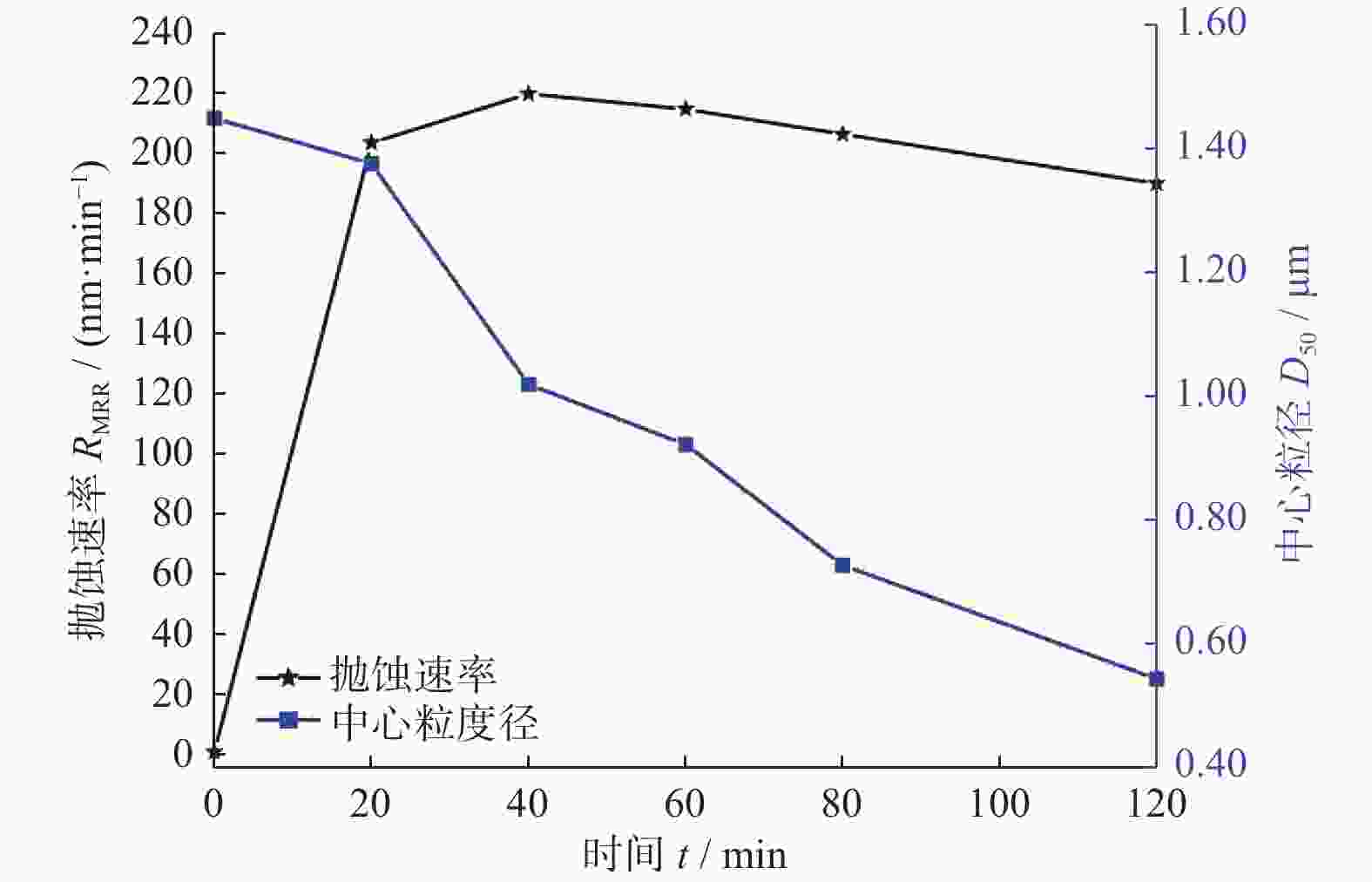

    图  9  LaCePr稀土抛光液抛光性能

    Figure  9.  Polishing performance of LaCePr rare earth polishing slurry

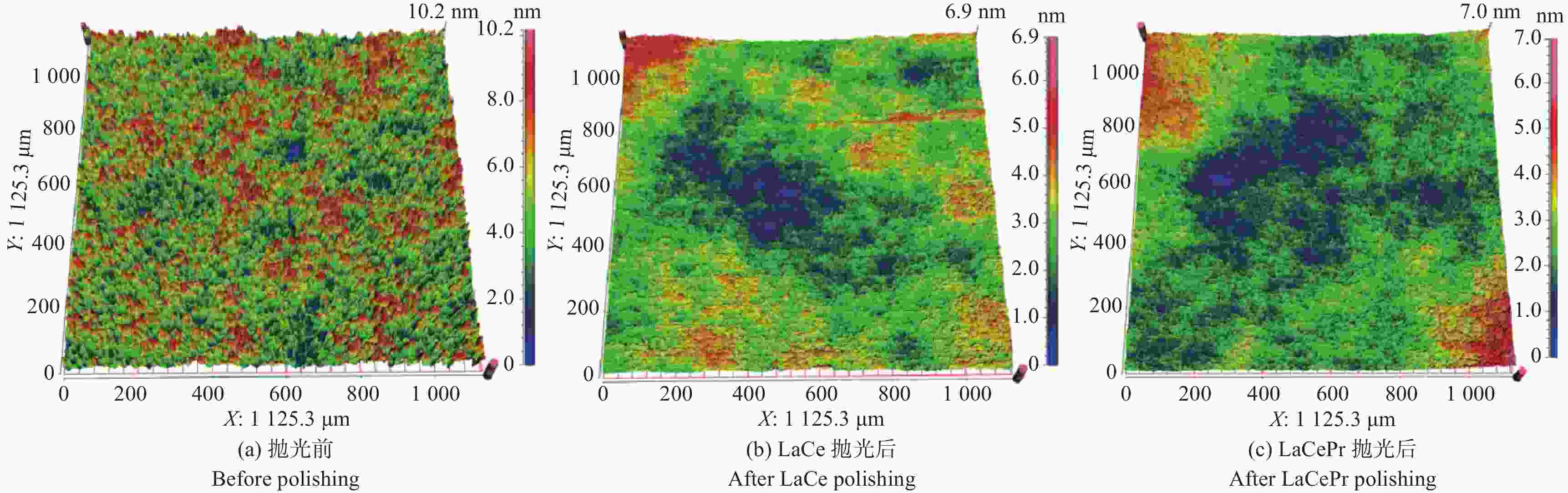

    图  10  抛光前后的玻璃表面白光干涉3D图像

    Figure  10.  White light interference 3D images of glass surface before and after polishing

    表  1  LaCePr氯化液化学成分

    Table  1.   Chemical compositions of LaCePr chlorination solution

    元素 质量分数 ω / %
    La 33.46
    Ce 65.97
    Pr 0.50
    其他 <0.10
    下载: 导出CSV
  • [1] 范娜, 陈传东, 于健飞, 等. 基于氟硅混酸制备稀土抛光粉及其抛光性能研究 [J]. 中国稀土学报,2024,42(1):1-10. doi: 10.1016/j.jre.2023.03.013

    FAN Na, CHEN Chuandong, YU Jianfei, et al. Preparation of rare earth polishing powder based on fluorinated silica mixed acid and its polishing performance [J]. Chinese Journal of Rare Earth Sciences,2024,42(1):1-10. doi: 10.1016/j.jre.2023.03.013
    [2] 白亚雯. A向蓝宝石晶片化学机械抛光液组分优化及其抛光工艺研究 [D]. 无锡: 江南大学, 2018.

    BAI Yawen. Study on the chemical mechanical polishing liquid and its process of A-plane sapphire wafer [D]. Wuxi: Jiangnan University, 2018.
    [3] 陈亮亮. CeO2抛光液悬浮分散性能的研究与改进 [D]. 上海: 华东理工大学, 2021.

    CHEN Liangliang. Research and improvement on suspension and dispersion performance of CeO2 polishing solution [D]. Shanghai: East China University of Science and Technology, 2021.
    [4] 赵延. 手机曲面玻璃用稀土抛光浆料配制及抛光性能研究 [D]. 包头: 内蒙古科技大学, 2021.

    ZHAO Yan. Study on preparation and polishing performance of rare earth polishing paste for mobile phone curved glass [D]. Baotou: Inner Mongolia University of Science and Technology, 2021.
    [5] 王学亮. 微纳米铈基抛光粉及浆料的制备与性能研究 [D]. 南昌: 南昌大学, 2022.

    WANG Xueliang. Study on the preparation and properties of micro nano cerium based polishing powder and slurry [D]. Nanchang: Nanchang University, 2022.
    [6] 洪广言. 稀土抛光粉 [M]. 北京: 科学出版社, 2017.

    HONG Guangyan. Rare earth polishing powder [M]. Beijing: Science Press, 2017.
    [7] 周薇, 常宏涛, 张存瑞, 等. 抛光浆料的组成对抛光性能的影响 [J]. 内蒙古科技大学学报,2020,39(2):39-42. doi: 10.16559/j.cnki.2095-2295.2020.02.008

    ZHOU Wei, CHANG Hongtao, ZHANG Cunrui, et al. The influence of polishing slurry composition on polishing performance [J]. Journal of Inner Mongolia University of Science and Technology,2020,39(2):39-42. doi: 10.16559/j.cnki.2095-2295.2020.02.008
    [8] 戴蒙姣, 陈国美, 倪自丰, 等. 均一亚微米级氧化铈抛光粉的制备 [J]. 金刚石与磨料磨具工程,2022,42(4):428-432. doi: 10.13394/j.cnki.jgszz.2021.0117

    DAI Mengjiao, CHEN Guomei, NI Zifeng, et al. Preparation of homogeneous submicron ceria polishing powder [J]. Diamond & Abrasives Engineering,2022,42(4):428-432. doi: 10.13394/j.cnki.jgszz.2021.0117
    [9] 赵延, 胡艳宏, 崔凌霄, 等. 稀土抛光粉沉降速度的研究 [J]. 内蒙古科技大学学报,2022,41(1):32-35. doi: 10.16559/j.cnki.2095-2295.2022.01.007

    ZHAO Yan, HU Yanhong, CUI Lingxiao, et al. Study on the sedimentation rate of rare earth polishing powder [J]. Journal of Inner Mongolia University of Science and Technology,2022,41(1):32-35. doi: 10.16559/j.cnki.2095-2295.2022.01.007
    [10] 李欢欢. 稀土抛光粉抛光工艺的多目标稳健优化设计 [D]. 包头: 内蒙古科技大学, 2021.

    LI Huanhuan. Multi objective robust optimization design of rare earth polishing powder polishing process [D]. Baotou: Inner Mongolia University of Science and Technology, 2021.
    [11] 刘志, 王辰伟, 周建伟, 等. STI CMP中SiO2/CeO2混合磨料对SiO2介质层CMP性能的影响 [J]. 半导体技术,2022,47(11):865-872. doi: 10.13290/j.cnki.bdtjs.2022.11.003

    LIU Zhi, WANG Chenwei, ZHOU Jianwei, et al. Effects of SiO2/CeO2 mixed abrasives on the properties of SiO2 dielectric layer CMP in STI CMP [J]. Semiconductor Technology,2022,47(11):865-872. doi: 10.13290/j.cnki.bdtjs.2022.11.003
    [12] 胡浩, 李梅, 王觅堂, 等. 球磨法制备铈基稀土抛光粉及其抛光性能研究 [J]. 稀土,2019,40(5):47-54. doi: 10.16533/J.CNKI.15-1099/TF.201905007

    HU Hao, LI Mei, WANG Mitang, et al. Preparation of cerium based rare earth polishing powder by ball milling method and its polishing performance [J]. Rare Earth,2019,40(5):47-54. doi: 10.16533/J.CNKI.15-1099/TF.201905007
    [13] 闫妹, 檀柏梅, 王亚珍, 等. CeO2磨料在介质化学机械抛光及后清洗中应用的研究进展 [J]. 稀土,2023,44(3):106-117. doi: 10.16533/j.cnki.15-1099/tf.20230007

    YAN Mei, TAN Baimei, WANG Yazhen, et al. Research progress on the application of CeO2 abrasive in medium chemical mechanical polishing and post cleaning [J]. Rare Earth,2023,44(3):106-117. doi: 10.16533/j.cnki.15-1099/tf.20230007
    [14] 王也, 张保国, 吴鹏飞, 等. 用于光学玻璃CMP的高效稀土抛光液研究 [J]. 润滑与密封,2023,48(5):79-84. doi: 10.3969/j.issn.0254-0150.2023.05.012

    WANG Ye, ZHANG Baoguo, WU Pengfei, et al. Research on high-efficiency rare earth polishing slurry for CMP of optical glass [J]. Lubrication Engineering,2023,48(5):79-84. doi: 10.3969/j.issn.0254-0150.2023.05.012
    [15] 任鹏. 3D玻璃抛光液的制备及其性能研究 [J]. 化工设计通讯,2020,46(4):159-160. doi: 10.3969/j.issn.1003-6490.2020.04.107

    REN Peng. Preparation and performance study of 3D glass polishing fluid [J]. Chemical Design Communication,2020,46(4):159-160. doi: 10.3969/j.issn.1003-6490.2020.04.107
    [16] 邹兰梅. 氧化铈及其复合磨料的研究进展 [J]. 安徽化工,2021,47(1):13-16. doi: 10.3969/j.issn.1008-553X.2021.01.005

    ZOU Lanmei. Study progress of cerium oxide and its composite abrasive [J]. Anhui Chemical Industry,2021,47(1):13-16. doi: 10.3969/j.issn.1008-553X.2021.01.005
    [17] 续晨, 周建伟, 王辰伟, 等. 柠檬酸对CeO2磨料分散稳定性及抛光性能的影响 [J]. 半导体技术,2022,47(2):111-116. doi: 10.13290/j.cnki.bdtjs.2022.02.006

    XU Chen, ZHOU Jianwei, WANG Chenwei, et al. The effect of citric acid on the dispersion stability and polishing performance of CeO2 abrasives [J]. Semiconductor Technology,2022,47(2):111-116. doi: 10.13290/j.cnki.bdtjs.2022.02.006
    [18] 许宁, 马家辉, 刘琦. CeO2基磨粒在化学机械抛光中的研究进展 [J]. 中国稀土学报,2022,40(2):181-193. doi: 10.11785/S1000-4343.20220202

    XU Ning, MA Jiahui, LIU Qi. Research progress of CeO2 based abrasive particles in chemical mechanical polishing [J]. Chinese Journal of Rare Earths,2022,40(2):181-193. doi: 10.11785/S1000-4343.20220202
    [19] 杨朝霞, 张保国, 阳小帆, 等. 高分散稳定性CeO2抛光液的制备及其抛光性能研究 [J]. 稀土,2022,43(2):128-136. doi: 10.16533/J.CNKI.15-1099/TF.202202015

    YANG Zhaoxia, ZHANG Baoguo, YANG Xiaofan, et al. Preparation and polishing performance of highly dispersed and stable CeO2 polishing solution [J]. Rare Earth,2022,43(2):128-136. doi: 10.16533/J.CNKI.15-1099/TF.202202015
    [20] 姜晨, 洪小兰, 时培兵, 等. 六偏磷酸钠对磁性复合流体分散性及光学玻璃抛光性能的影响 [J]. 稀土,2020,41(2):47-55. doi: 10.16533/J.CNKI.15-1099/TF.20200005

    JIANG Chen, HONG Xiaolan, SHI Peibing, et al. The effect of sodium hexametaphosphate on the dispersity of magnetic composite fluid and the polishing performance of optical glass [J]. Rare Earth,2020,41(2):47-55. doi: 10.16533/J.CNKI.15-1099/TF.20200005
    [21] 李学舜. 稀土碳酸盐制备铈基稀土抛光粉的研究 [D]. 沈阳: 东北大学, 2008.

    LI Xueshun. Study on the preparation of cerium based rare earth polishing powder using rare earth carbonate [D]. Shenyang: Northeast University, 2008.
    [22] 陈义. 镍基单晶高温合金中Re-W合金化的关联及其对γ'-Ni3Al相的协同强韧化作用分析 [D]. 长沙: 湖南大学, 2019.

    CHEN Yi. Correlation of Re-W alloying in nickel based single crystal high-temperature alloys and its impact on γ'- Ni3Al analysis of the synergistic toughening effect of phase [D]. Changsha: Hunan University, 2019.
    [23] 杨小海, 李安, 宫慧勇, 等. 不同沉淀剂制备氧化铈抛光粉 [J]. 铜业工程,2023,18(2):86-91. doi: 10.3969/j.issn.1009-3842.2023.02.012

    YANG Xiaohai, LI An, GONG Huiyong, et al. Preparation of cerium oxide polishing powder with different precipitants [J]. Copper Engineering,2023,18(2):86-91. doi: 10.3969/j.issn.1009-3842.2023.02.012
