Surface micromorphology of Si3N4 ceramic by rotating ultrasonic grinding based on fractal theory
-
摘要: 为了研究旋转超声磨削Si3N4陶瓷表面的微观形貌,基于分形理论研究不同加工参数下Si3N4陶瓷表面微观形貌的变化。设计旋转超声磨削Si3N4陶瓷正交试验,对比分析不同加工参数对Si3N4陶瓷表面分形维数和多重分形谱的影响,并设计单因素试验研究不同加工参数下Si3N4陶瓷表面的粗糙度、分形维数和多重分形谱。结果表明:旋转超声磨削Si3N4陶瓷表面时,分形维数能更好地表征其加工表面的缺陷状态,多重分形谱则能更好地表征其加工表面缺陷的起伏程度变化。Abstract: To study the surface morphology of Si3N4 ceramics using rotary ultrasonic grinding, changes in the surface morphology under different machining parameters were analyzed based on fractal theory. Orthogonal experiments were designed to compare and analyze the effects of various processing parameters on the fractal dimensions and multifractal spectra of the Si3N4 ceramic surface. Additionally, single-factor experiments were conducted to study the roughness, fractal dimensions, and multifractal spectra of the Si3N4 ceramic surface under different processing parameters. The results show that fractal dimensions can effectively characterize the defect state of the processed surface of Si3N4 ceramics during rotary ultrasonic grinding, while multifractal spectra can better represent the degree of fluctuation in surface defects.
-
Key words:
- rotary ultrasonic grinding /
- Si3N4 ceramics /
- fractal dimension /
- multifractal spectrum /
- microstructure
-

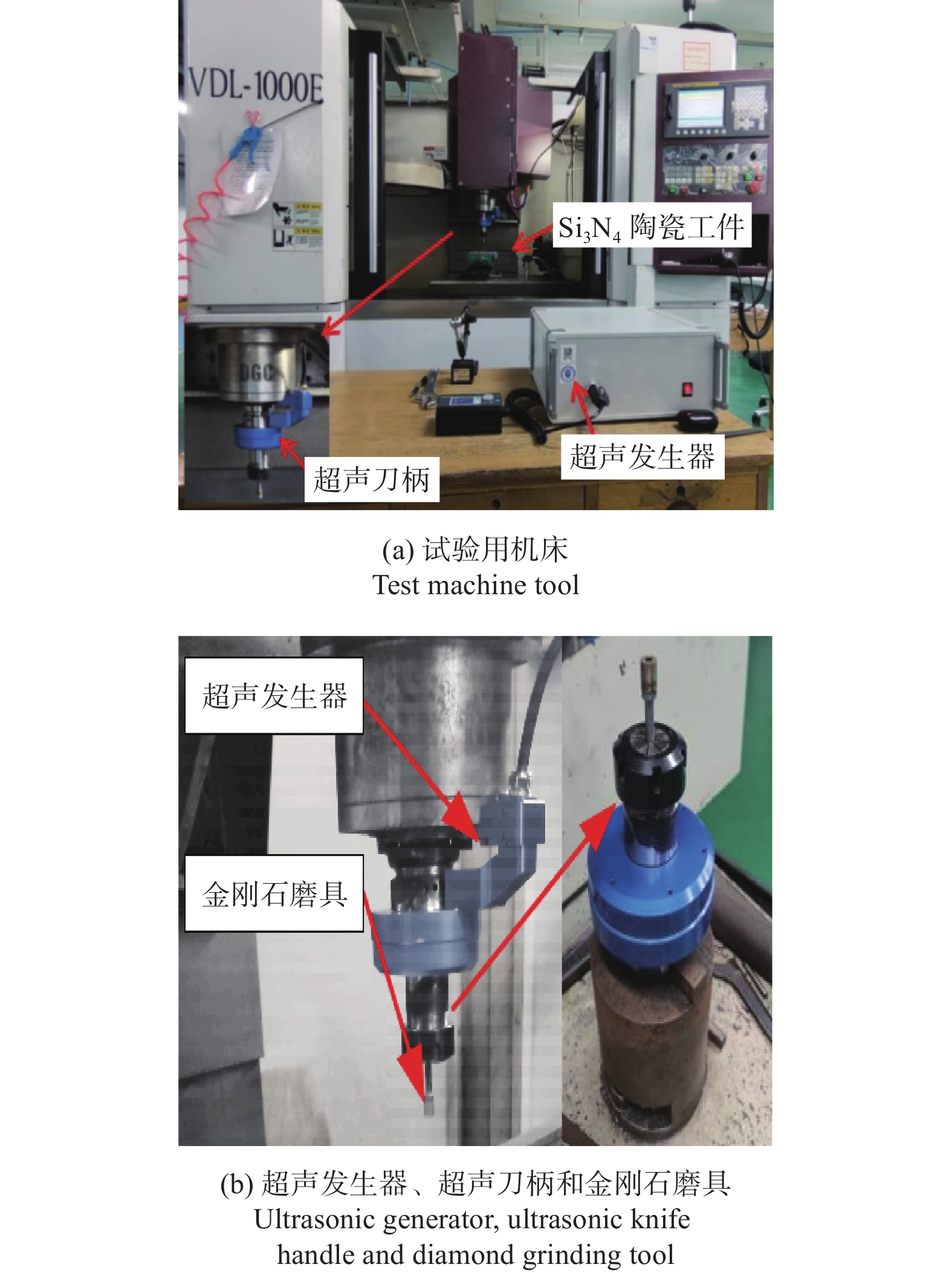

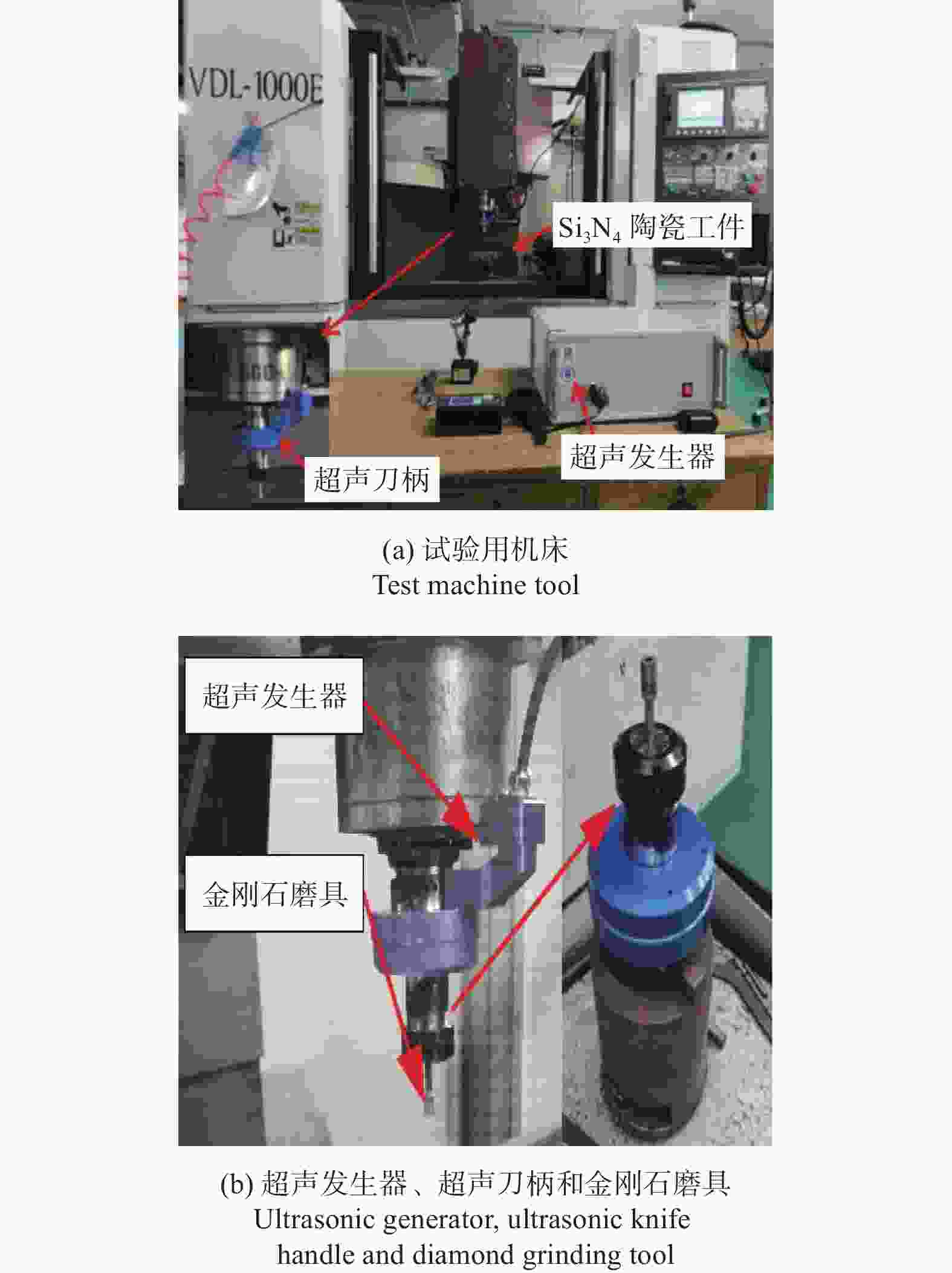

表 1 热压烧结Si3N4陶瓷机械性能
Table 1. Mechanical properties of hot-pressing sintered Si3N4 ceramics
参数 取值 密度 ρ / (g·cm−3) 3.21 硬度 H / GPa 16.5 断裂韧性 KIC / (MPa·cm−1/2) 7.8 抗压强度 σ / MPa 1 200 弹性模量 E / GPa 305 表 2 因素和水平表
Table 2. Factor and level table
水平 因素 主轴转速
n / (r·min−1)进给速度
V / (mm·min−1)切削深度
ap / μm振动功率
P / %1 3 000 50 30 30 2 4 000 80 45 50 3 5 000 110 60 70 4 6 000 130 75 90 表 3 试验方案
Table 3. Test scheme
试验
组号主轴转速
n / (r·min−1)进给速度
V / (mm·min−1)切削深度
ap / μm振动功率
P / %1 3 000 50 30 30 2 5 000 80 30 70 3 6 000 130 30 90 4 4 000 80 30 50 5 4 000 130 60 30 6 6 000 110 45 30 7 5 000 80 75 30 8 3 000 130 75 70 9 6 000 50 75 50 10 3 000 110 60 50 11 4 000 110 75 90 12 4 000 50 45 70 13 5 000 50 60 90 14 5 000 130 45 50 15 6 000 80 60 70 16 3 000 80 45 90 表 4 表面粗糙度、分形维数和多重分形谱的方差分析表
Table 4. Table of variance analysis of surface roughness, fractal dimension and multifractal spectrum
影响因素 因变量 均方值 F值 显著性 主轴转速 n / (r·min−1) Ra 0.032 103.648 0.002 D 8.506 20.296 0.017 Δa 0.001 10.007 0.045 Δf(a) 0.000 2.548 0.231 进给速度 V / (mm·min−1) Ra 0.005 16.457 0.023 D 0.001 146.496 0.001 Δa 0.006 102.333 0.002 Δf(a) 0.001 22.197 0.015 切削深度 ap / μm Ra 0.003 9.946 0.046 D 3.456 8.246 0.058 Δa 0.000 3.607 0.160 Δf(a) 0.000 5.063 0.108 振动功率 P / % Ra 0.000 1.023 0.493 D 0.000 68.564 0.003 Δa 0.001 18.185 0.020 Δf(a) 7.743 1.784 0.323 -
