Ti3AlC2对PcBN材料显微结构及性能的影响

马金明 肖长江 陶宏均 张群飞 汤黎辉 曹剑锋 李远 周世杰 唐昱霖 陈亚超 栗正新

马金明, 肖长江, 陶宏均, 张群飞, 汤黎辉, 曹剑锋, 李远, 周世杰, 唐昱霖, 陈亚超, 栗正新. Ti3AlC2对PcBN材料显微结构及性能的影响[J]. 金刚石与磨料磨具工程, 2024, 44(2): 179-184. doi: 10.13394/j.cnki.jgszz.2023.0048
引用本文: 马金明, 肖长江, 陶宏均, 张群飞, 汤黎辉, 曹剑锋, 李远, 周世杰, 唐昱霖, 陈亚超, 栗正新. Ti3AlC2对PcBN材料显微结构及性能的影响[J]. 金刚石与磨料磨具工程, 2024, 44(2): 179-184. doi: 10.13394/j.cnki.jgszz.2023.0048
MA Jinming, XIAO Changjiang, TAO Hongjun, ZHANG Qunfei, TANG Lihui, CAO Jianfeng, LI Yuan, ZHOU Shijie, TANG Yulin, CHEN Yachao, LI Zhengxin. Effect of Ti3AlC2 content on microstructure and properties of PcBN materials[J]. Diamond & Abrasives Engineering, 2024, 44(2): 179-184. doi: 10.13394/j.cnki.jgszz.2023.0048
Citation: MA Jinming, XIAO Changjiang, TAO Hongjun, ZHANG Qunfei, TANG Lihui, CAO Jianfeng, LI Yuan, ZHOU Shijie, TANG Yulin, CHEN Yachao, LI Zhengxin. Effect of Ti3AlC2 content on microstructure and properties of PcBN materials[J]. Diamond & Abrasives Engineering, 2024, 44(2): 179-184. doi: 10.13394/j.cnki.jgszz.2023.0048

Ti3AlC2对PcBN材料显微结构及性能的影响

doi: 10.13394/j.cnki.jgszz.2023.0048
基金项目: 工业和信息化部科技高质量发展项目(203ZS20230005);河南省重大科技专项(221100230100);河南省2024年重点研发专项“新能源汽车关键零部件用高端系列超硬磨具研制及产业化”;郑州市重大科技专项(2021KJZX0062)。
详细信息
    作者简介:

    通信作者:栗正新,男,1964年生,教授、硕士生导师。主要研究方向:金刚石功能材料、先进超硬和普通磨料磨具、计算机模拟仿真和磨削技术等。E-mail:lizx012001@163.com

  • 中图分类号: TQ164; TG74

Effect of Ti3AlC2 content on microstructure and properties of PcBN materials

  • 摘要: 以不同质量分数的Ti3AlC2为结合剂,在5.5 GPa、1450 ℃的条件下,制备整体式PcBN复合刀具材料,分析不同质量分数的Ti3AlC2对PcBN刀具材料的物相、显微结构及力学性能的影响。结果表明:Ti3AlC2在高温高压下会完全分解成TiC、Al-Ti合金,并与cBN反应生成AlN、TiB2和TiC0.7N0.3等物相;TiC、AlN、TiB2和TiC0.7N0.3均匀分布在cBN周围并与cBN紧密黏结在一起,从而提升PcBN的力学性能。当Ti3AlC2质量分数为25%时,PcBN的相对密度、抗弯强度、断裂韧性和磨耗比均达到最大值,分别为98.9 %、592 MPa、6.87 MPa·m1/2和7 350;当Ti3AlC2质量分数为20 %时,PcBN的显微硬度达到最大值4 786.7 HV。



  • 图  1  Ti3AlC2 形貌

    Figure  1.  Morphology of Ti3AlC2

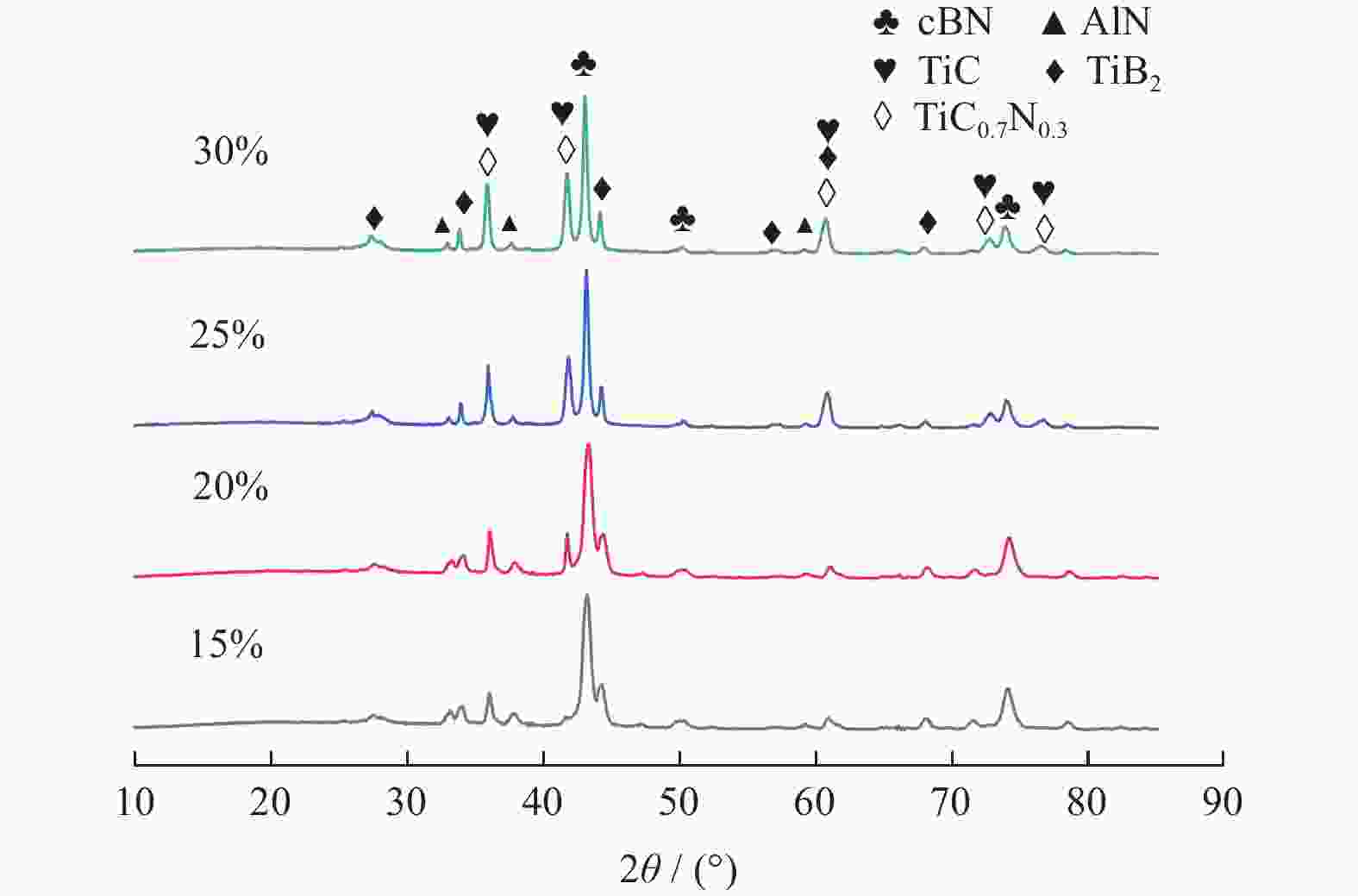

    图  2  不同Ti3AlC2质量分数时PcBN的XRD图谱

    Figure  2.  XRD patterns of PcBN with different Ti3AlC2 contents

    图  3  不同Ti3AlC2质量分数时的PcBN显微结构

    Figure  3.  Microstructures of PcBN with different Ti3AlC2 mass fractions

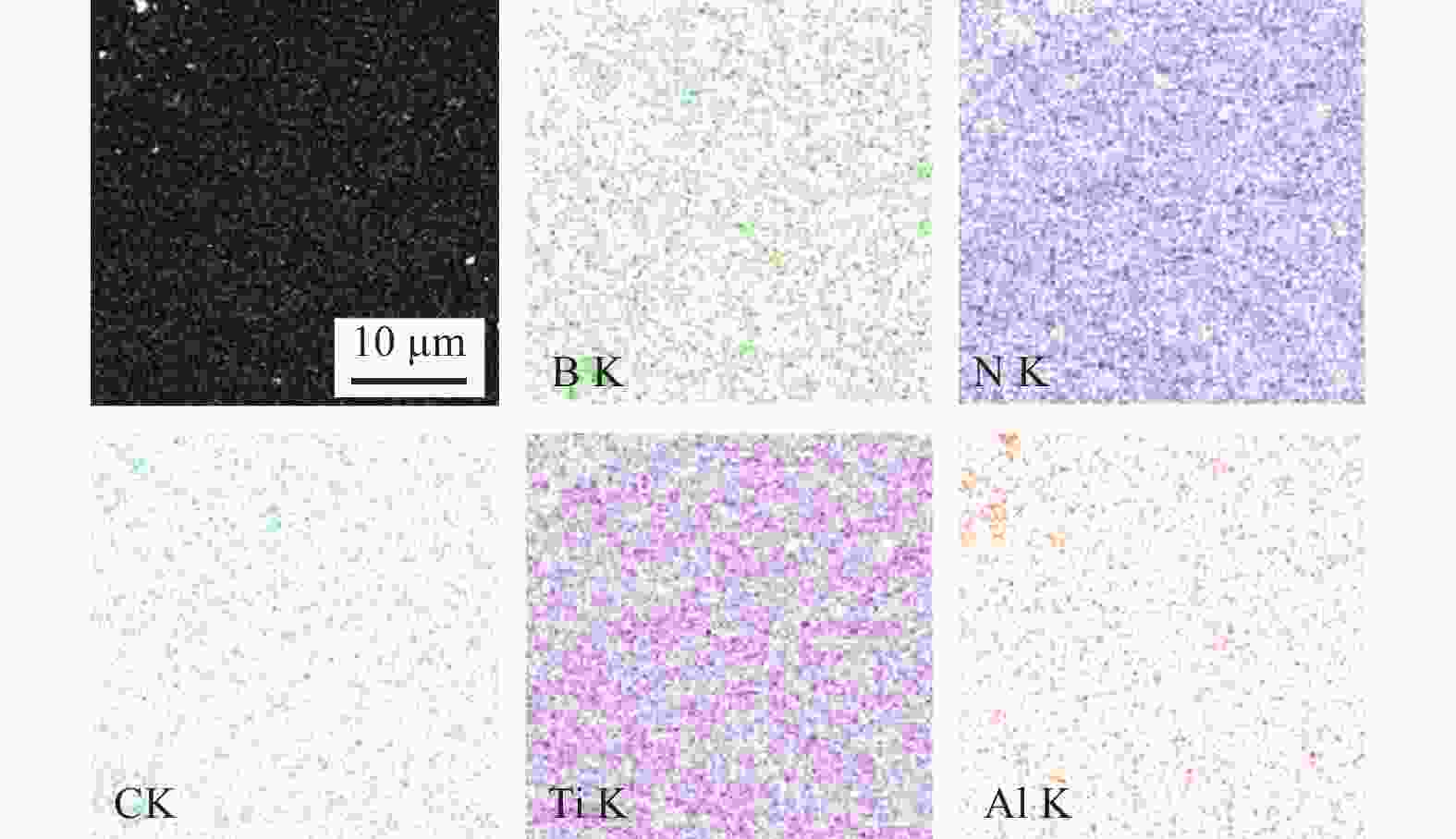

    图  4  20%Ti3AlC2 时制备的PcBN面扫描图

    Figure  4.  Surface scan map of PcBN prepared at 20% Ti3AlC2

    图  5  20%Ti3AlC2时制备的PcBN的EDS分析

    Figure  5.  EDS analysis of PcBN prepared at 20% Ti3AlC2

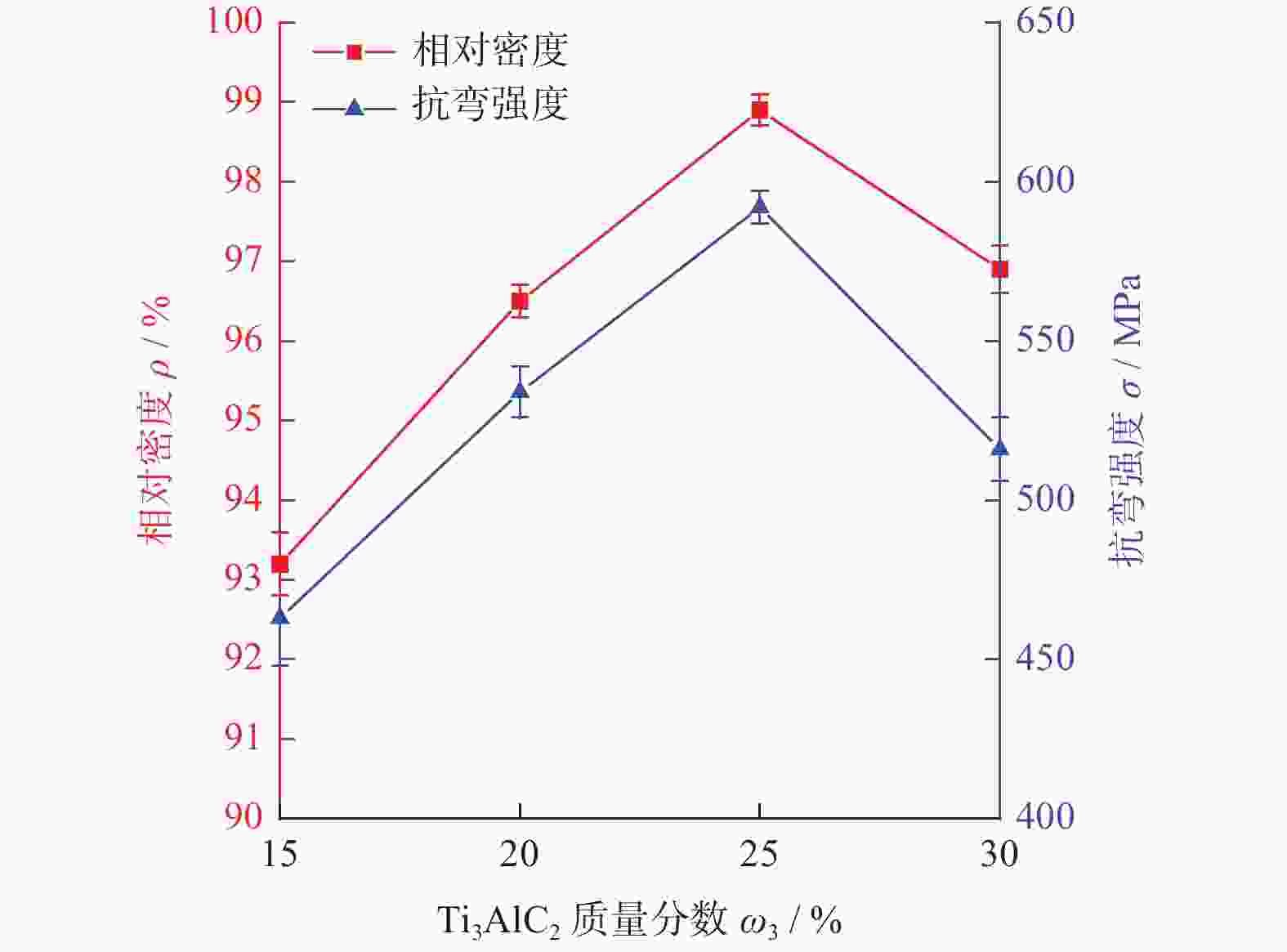

    图  6  不同Ti3AlC2质量分数时的PcBN的相对密度和抗弯强度

    Figure  6.  Relative density and bending strength of PcBN with different Ti3AlC2 mass fractions

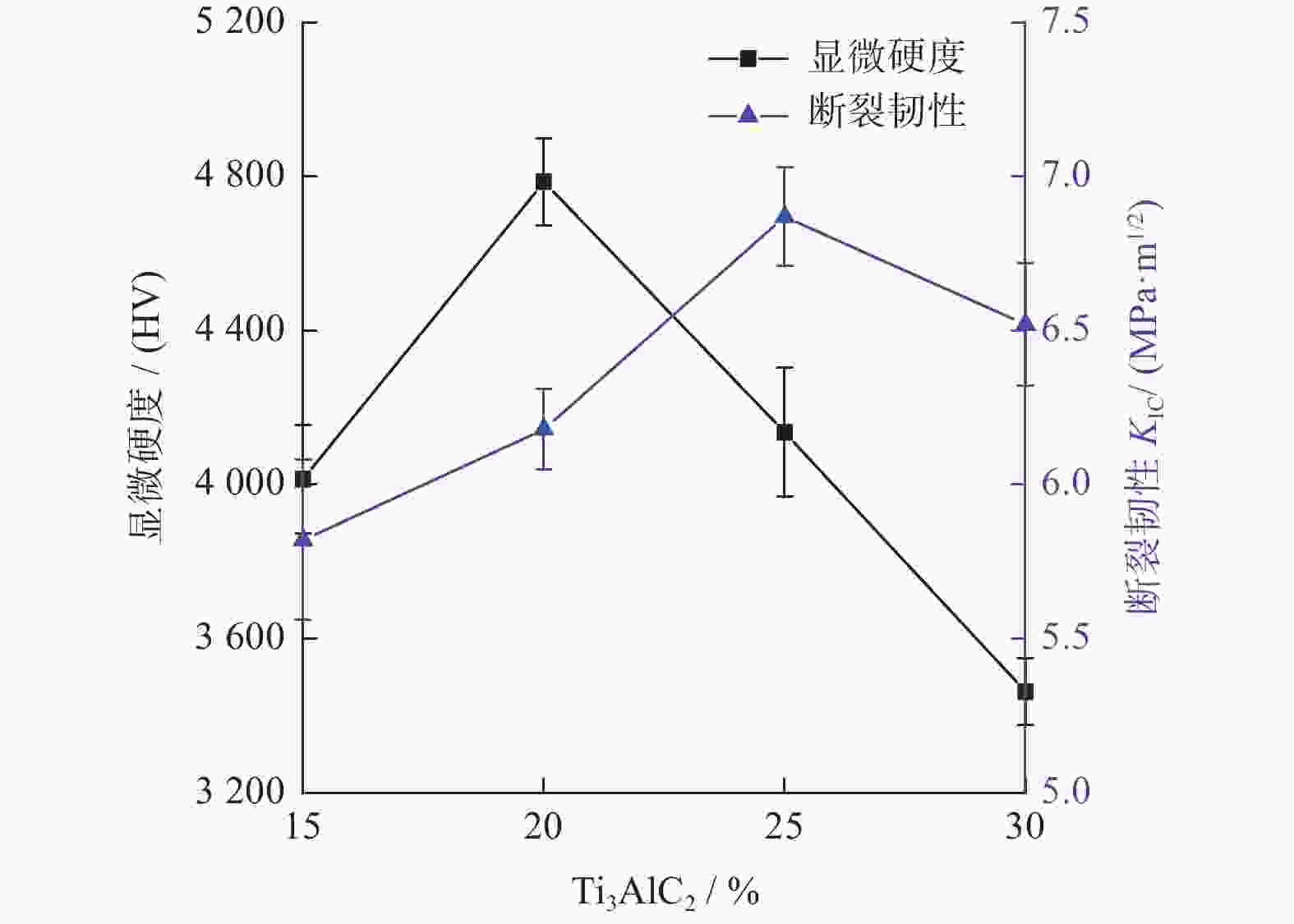

    图  7  不同Ti3AlC2质量分数时烧结的PcBN的显微硬度与断裂韧性

    Figure  7.  Microhardness and fracture toughness of sintered PcBN with different Ti3AlC2 contents

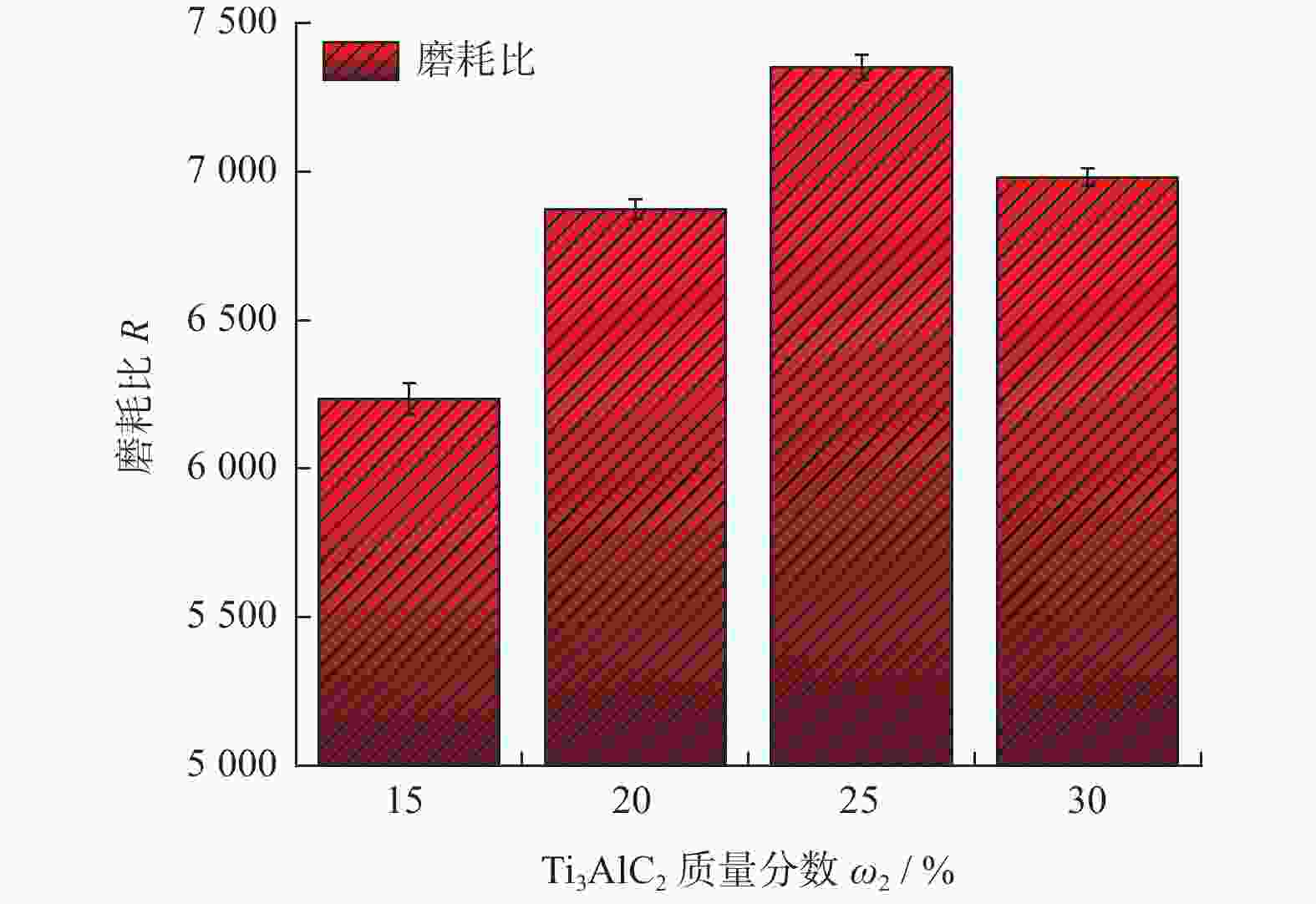

    图  8  不同Ti3AlC2质量分数时烧结的PcBN的磨耗比

    Figure  8.  Wear ratios of sintered PcBN with different Ti3AlC2 contents

    表  1  实验配方

    Table  1.   Experimental formula

    编号cBN质量分数
    ω1 / %
    结合剂Ti3AlC2质量分数
    ω2 / %
    18515
    28020
    37525
    47030
    下载: 导出CSV
  • [1] 何云, 杨泊莘, 高阳华, 等. 聚晶金刚石刀具的制造及应用 [J]. 工具技术,2018,52(11):53-58. doi: 10.16567/j.cnki.1000-7008.2018.11.020

    HE Yun, YANG Boxin, GAO Yanghua, et al. Manufacture and application of PCD tool [J]. Tool Engineering,2018,52(11):53-58. doi: 10.16567/j.cnki.1000-7008.2018.11.020
    [2] 赵兴利. 新型聚晶立方氮化硼(PcBN)刀具材料研制及其切削机理研究 [D]. 济南: 山东大学, 2011.

    ZHAO Xingli. Development of a new polycrystalline cubic boron nitride (PcBN) tool material and its cutting mechanism [D]. Jinan: Shandong University, 2011.
    [3] 张喆, 张俊. 聚晶立方氮化硼刀具研究进展 [J]. 超硬材料工程,2017,29(5):52-55. doi: 10.3969/j.issn.1673-1433.2017.05.012

    ZHANG Zhe, ZHANG Jun. Research progress of polycrystalline cubic boron nitride tools [J]. Superhard Material Engineering,2017,29(5):52-55. doi: 10.3969/j.issn.1673-1433.2017.05.012
    [4] 苗志毅, 冯克明. 绿色切削与PcBN刀具切削技术 [J]. 金刚石与磨料磨具工程,2004,143(5):73-76. doi: 10.13394/j.cnki.jgszz.2004.05.020

    MIAO Zhiyi, FENG Keming. Green cutting and PcBN tool cutting technology [J]. Diamond & Abrasives Engineering,2004,143(5):73-76. doi: 10.13394/j.cnki.jgszz.2004.05.020
    [5] 王楚琦, 寇自力. 纯相PcBN的高温高压制备综述 [J]. 金刚石与磨料磨具工程,2022,42(2):162-168. doi: 10.13394/j.cnki.jgszz.2021.0409

    WANG Chuqi, KOU Zili. Review of the preparation of pure phase PcBN at high temperature and high pressure [J]. Diamond & Abrasives Engineering,2022,42(2):162-168. doi: 10.13394/j.cnki.jgszz.2021.0409
    [6] MCKIE A, WINZER J, SIGALAS I, et al. Mechanical properties of cBN–Al composite materials [J]. Ceramics International,2011,37(1):1-8. doi: 10.1016/j.ceramint.2010.07.034
    [7] YUAN Y, CHENG X, CHANG R, et al. Reactive sintering cBN-Ti-Al composites by spark plasma sintering [J]. Diamond and Related Materials,2016,69(1):138-143. doi: 10.1016/j.diamond.2016.08.009
    [8] 黄建娜, 张洁溪, 马玉琳. 立方氮化硼超硬刀具材料的合成与性能研究 [J]. 粉末冶金工业,2023,33(1):89-93. doi: 10.13228/j.boyuan.issn1006-6543.20210107

    HUANG J ianna, ZHANG Jiexi, MA Yulin. Synthesis and properties of cubic boron nitride superhard tool materials [J]. Powder Metallurgy Industry,2023,33(1):89-93. doi: 10.13228/j.boyuan.issn1006-6543.20210107
    [9] 武迪. 陶瓷结合剂PcBN的制备与性能研究 [D]. 秦皇岛: 燕山大学, 2018.

    WU Di. Study on preparation and properties of ceramic bond PcBN [D]. Qinhuangdao: Yanshan University, 2018.
    [10] SLIPCHENKO, K, VSTRATLICHUK, D, TURKEVICH A, et al. Sintering of cBN based materials with a TaC binder for cutting tool application [J]. Journal of superhard materials:Sverkhtverdye materialy,2020,42(2):3-11. doi: 10.3103/S1063457620020112
    [11] 李名英. 锂锌铝硅系微晶玻璃cBN复合材料的制备与性能研究 [D]. 广州: 华南理工大学, 2014.

    LI Mingying. Preparation and properties of LZAS glass-ceramic cBN composites [D]. Guangdzhou: South China University Of Technology, 2014.
    [12] CHEN C, MO P C, WANG P, et al. Effect of titanium content on microstructure and mechanical properties of PcBN synthesized in cBN-Si3N4-Ti system [J]. Materials Science & Engineering Technology,2020,51(3):391-399. doi: 10.1002/mawe.201900089
    [13] TKACHENKO V V, FILONENKO V P, ANDRIANOV M A, et al. Superhard composites with homogeneous microstructure and nanosized binder obtained by reactive sintering in the system cBN-Al-TiC [J]. Glass and Ceramics,2021,77(3):1-8. doi: 10.1007/s10717-021-00311-1
    [14] ZHANG L L, LIN F, LV Z, et al. CBN-Al-HfC composites: Sintering behaviors and mechanical properties under high pressure [J]. International Journal of Refractory Metals and Hard Materials,2015,50(1):221-226. doi: 10.1016/j.ijrmhm.2015.01.015
    [15] 高丽娜, 陈文革, 李树丰. Ti3AlC2陶瓷粉末的研究现状及进展 [J]. 材料导报,2022,36(20):170-180. doi: 10.11896/cldb.20090196

    GAO Lina, CHEN Wenge, LI Shufeng. Research status and progress of Ti3AlC2 ceramic powder [J]. Materials Reports,2022,36(20):170-180. doi: 10.11896/cldb.20090196
    [16] 朱春城, 钱旭坤, 赫晓东, 等. 燃烧合成Ti3AlC2及其热稳定性 [J]. 稀有金属材料与工程,2009,38(2):86-89.

    ZHU Chuncheng, QIAN Xukun, HE Xiaodong, et al. Combustion synthesis of Ti3AlC2 and its thermal stability [J]. Rare Metal Materials and Engineering,2009,38(2):86-89.
    [17] 李子扬, 寇自力, 安佩, 等. Ti3AlC2在静高压下的热稳定性 [J]. 材料研究学报,2010,24(4):368-372.

    LI Ziyang, KOU Zili, AN Pei, et al. Thermal stability of Ti3AlC2 under static high pressure [J]. Chinese Journal of Materials Research,2010,24(4):368-372.
    [18] KILABYLINA T, BUSHLYA V, PETRUSHA V, et al. Superhard PcBN tool materials with Ti3SiC2 MAX-phase binder: Structure, properties, application [J]. Journal of Superhard Materials,2017,39(3):155-165. doi: 10.3103/S1063457617030029
    [19] JIANG Z L, JIAN Q, HAN Y, et al. Performance evaluation of cBN-Ti3AlC2-Al composites fabricated by HTHP method [J]. Ceramics International,2020,46(15):24449-24453. doi: 10.1016/j.ceramint.2020.06.228
    [20] 梁宝岩, 张旺玺, 王艳芝, 等. 微波烧结制备MAX-cBN复合材料及其反应机理研究 [J]. 材料导报,2016,30(6):66-69. doi: 10.11896/j.issn.1005-023X.2016.06.016

    LIANG Baoyan, ZHANG Wangxi, WANG Yanzhi, et al. Study on the preparation of MAX-cBN composite by microwave sintering and its reaction mechanism [J]. Materials Reports,2016,30(6):66-69. doi: 10.11896/j.issn.1005-023X.2016.06.016
    [21] RAMPAI T, LANG C I, SIGALAS I. Investigation of MAX phase/cBN composites [J]. Ceramics International,2013,39(5):4739-4748. doi: 10.1016/j.ceramint.2012.10.279
    [22] 钱旭坤. 层状Ti3AlC2的燃烧合成及其性能研究 [D]. 哈尔滨: 哈尔滨工业大学, 2010.

    QIAN Xukun. Study on combustion synthesis and performance of layered Ti3AlC2 [D]. Harbin: Harbin Institute of Technology, 2010.
    [23] YANG L, GONG J, YUE Z, et al. Preparation and characterization of cBN-based composites from cBN-Ti3AlC2 mixtures [J]. Diamond & Related Materials,2016,66(35):183-187. doi: 10.1016/j.diamond.2016.05.003
    [24] 蔡明. Ti3AlC2基复合材料的制备及性能研究 [D]. 沈阳: 沈阳理工大学, 2020.

    CAI Ming. Study on preparation and properties of Ti3AlC2 matrix composites [D]. Shenyang: Shenyang Ligong University, 2020.
