超硬磨料套料钻水下钻削P110钢的磨损实验

吴涛; 黄辉

doi:10.13394/j.cnki.jgszz.2023.0044

超硬磨料套料钻水下钻削P110钢的磨损实验

doi: 10.13394/j.cnki.jgszz.2023.0044

吴涛^{1, 2},
黄辉^{1, 2, 3,}

1.
华侨大学, 脆性材料产品智能制造技术国家地方联合工程研究中心, 福建厦门 361021
2.
华侨大学制造工程研究院, 福建厦门 361021
3.
华侨大学, 高性能工具全国重点实验室, 福建厦门 361021

基金项目: 国家自然科学基金(52275427)；教育部创新团队滚动计划（IRT_17R41）；脆性材料产品智能制造技术学科创新引智基地（B23011）。

详细信息

作者简介:
黄辉，男，1974 年生，博士、教授、博士生导师。主要研究方向：脆性材料高效、精密、智能加工，超硬材料工具制备与应用。E-mail：huangh@hqu.edu.cn

中图分类号: TQ164; TG58; TG74
计量
- 文章访问数: 506
- HTML全文浏览量: 277
- PDF下载量: 49
- 被引次数: 0
出版历程
- 收稿日期: 2023-03-01
- 修回日期: 2023-04-17
- 网络出版日期: 2023-11-06
- 刊出日期: 2024-02-20

Wear experiment on underwater drilling of P110 steel using superhard abrasive core drill

WU Tao^{1, 2},
HUANG Hui^{1, 2, 3
,}

1.
National and Local Joint Engineering Research Center for Intelligent Manufacturing Technology of Brittle Material Products, Huaqiao University, Xiamen 361021, Fujian, China
2.
Institute of Manufacturing Engineering, Huaqiao University, Xiamen 361021, Fujian, China
3.
State Key Laboratory of High Performance Tools, Huaqiao University, Xiamen 361021, Fujian, China

摘要

摘要: P110钢具有良好的综合力学性能，广泛用作油气井的套管，使用硬质合金工具对其进行水下钻削时工具磨损严重。实验研究3种不同超硬磨粒及结合剂的套料钻水下钻削P110钢的磨耗比，跟踪观察套料钻表面的磨粒形貌变化，并分析金刚石磨粒表面的石墨化情况。结果表明：在相同加工条件下，3种不同套料钻的端面磨耗大致相同，但使用金刚石磨粒的套料钻侧面磨损明显小于使用立方氮化硼（cBN）磨粒套料钻的；在水下加工条件下，端面金刚石磨粒会产生石墨化，但其仍保持一定的切削能力；结合剂硬度影响磨粒出露，从而导致套料钻在不同工作状态下的性能产生差异。
- 超硬磨料 /
- 套料钻 /
- 水下钻削 /
- P110钢 /
- 磨损
Abstract: P110 steel, renowed for its good comprehensive mechanical properties, is widely used as casing in oil and gas wells. However, it is seriously worn when using cemented carbide tools to drill it underwater. The study delves into the experimental exploration of the wear ratio of P110 steel during underwater drilling using three different kinds of super-hard abrasive grains and binders. The investigation includes tracking and observing the morphological changes of abrasive grains on the core drill's surface, along with the analysis of graphitization on the surface of diamond abrasive grains. The results show that under the same processing conditions, the end wear of the three different core drills is roughly the same. However, the side wear of the core drill using diamond abrasive particles is significantly less than that using cubic Boron Nitride (cBN) abrasive particles. Under the condition of underwater machining, the end face diamond abrasive grains will produce graphitization. Despite this, the diamond abrasive grains still maintain a certain cutting ability. The hardness of the bonding agent affects the exposure of abrasive particles, which results in the difference in the performance of the core drill under different working conditions.
- super hard abrasive /
- core drill /
- underwater drilling /
- P110 steel /
- wear

HTML全文

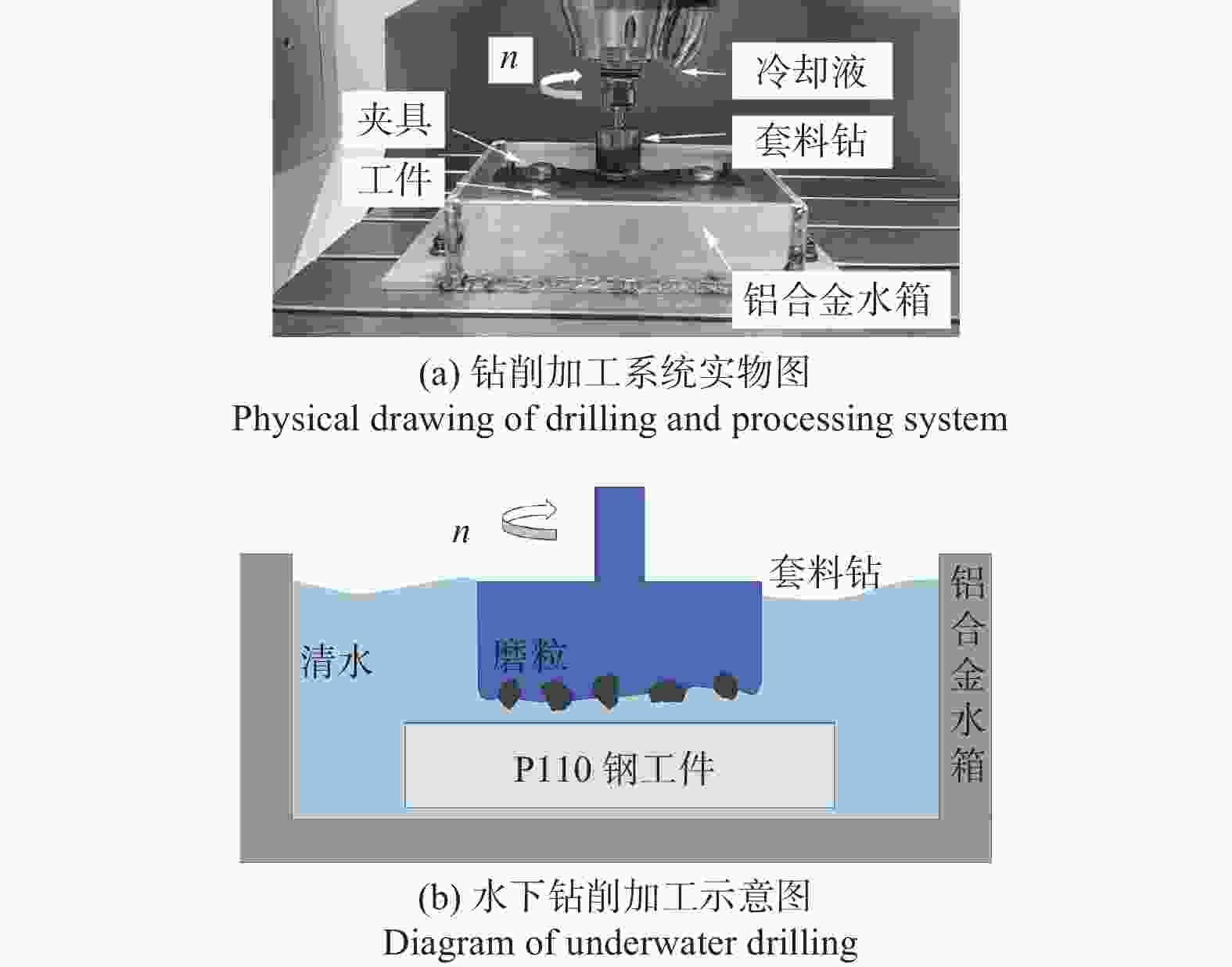

图 1 钻削加工实物图及示意图

Figure 1. Physical drawing and schematic diagram of drilling process

下载: 全尺寸图片幻灯片

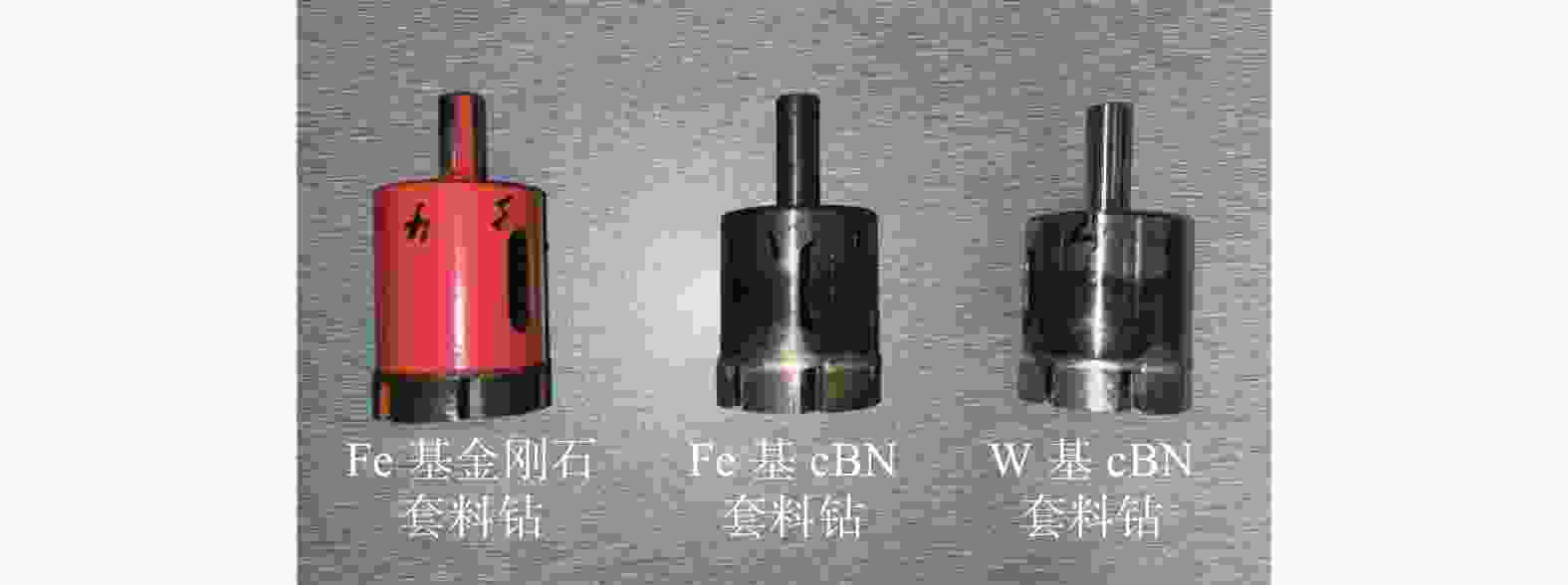

图 2 3种套料钻

Figure 2. Three core drills

下载: 全尺寸图片幻灯片

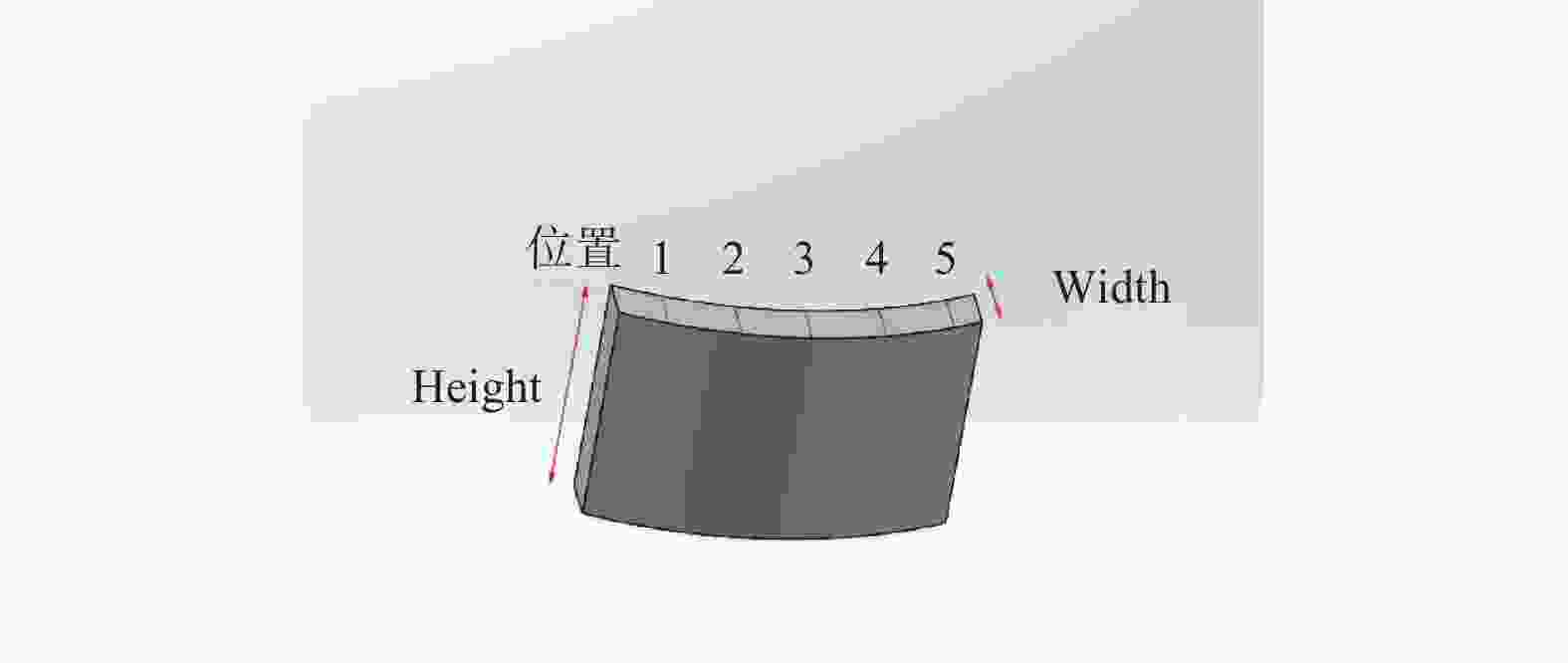

图 3 测量位置

Figure 3. Measuring position

下载: 全尺寸图片幻灯片

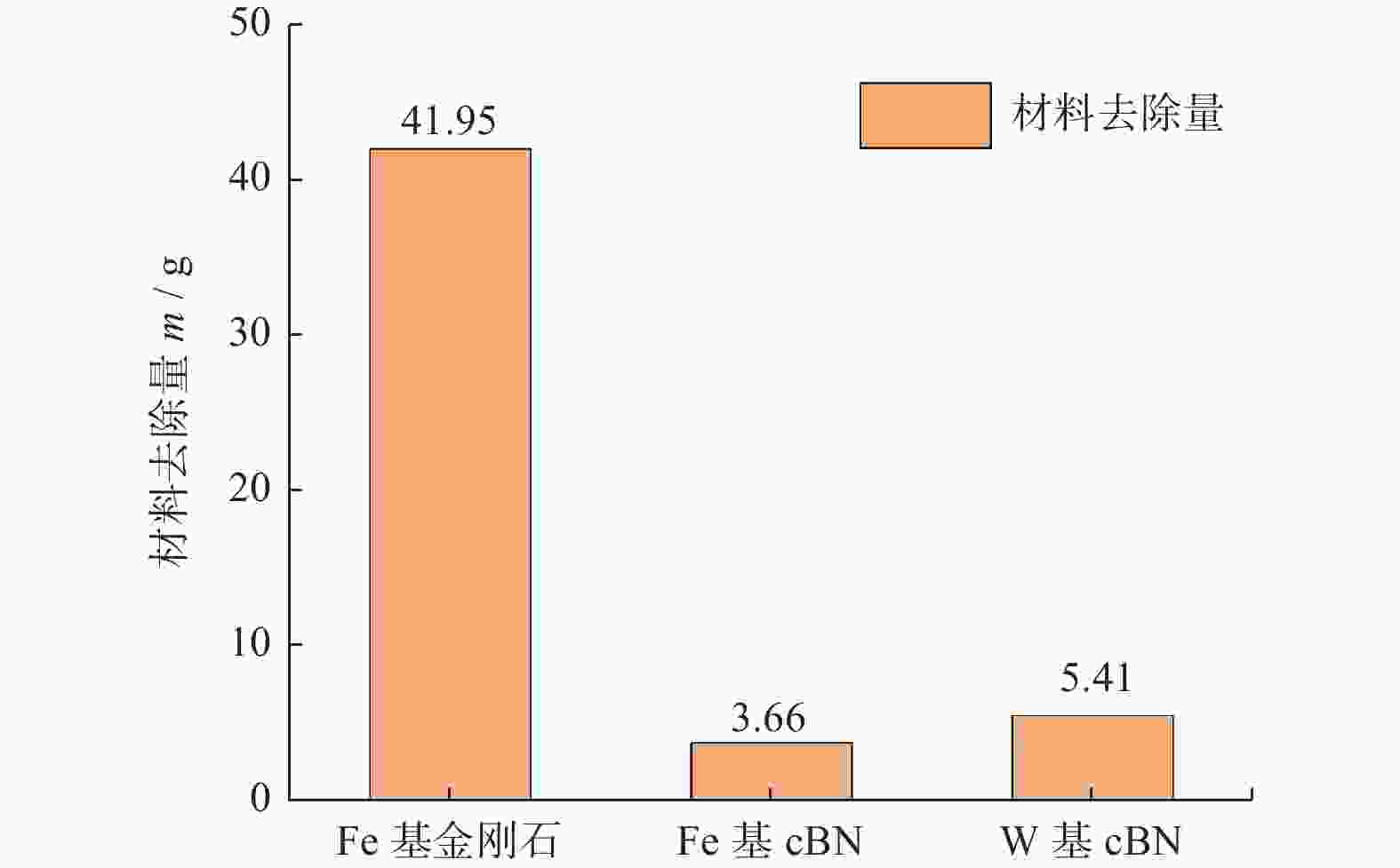

图 4 3种套料钻的材料去除量

Figure 4. Material removal amount of three kinds of core drills

下载: 全尺寸图片幻灯片

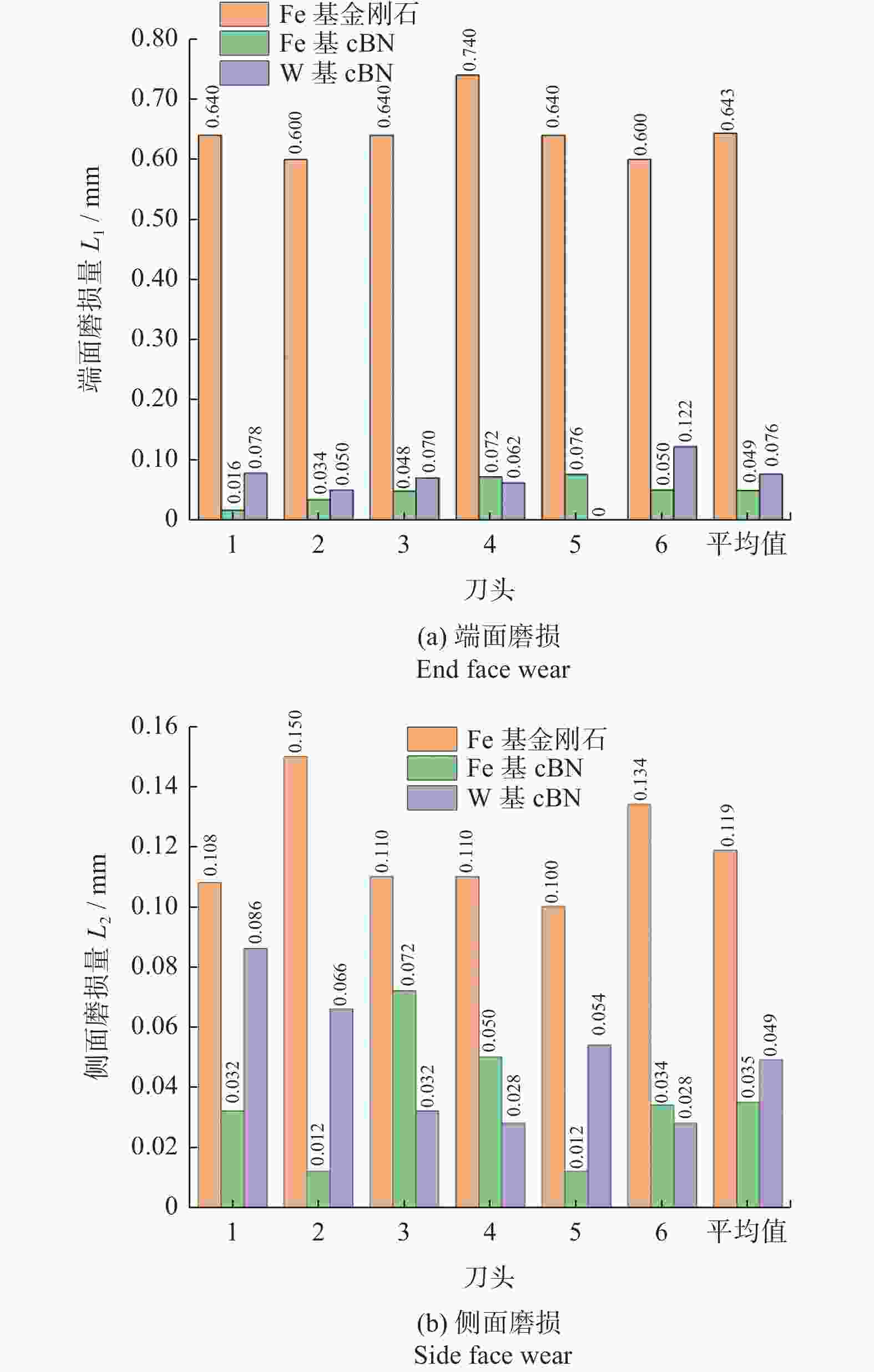

图 5 3种套料钻磨损量

Figure 5. Wear amount of three core drills

下载: 全尺寸图片幻灯片

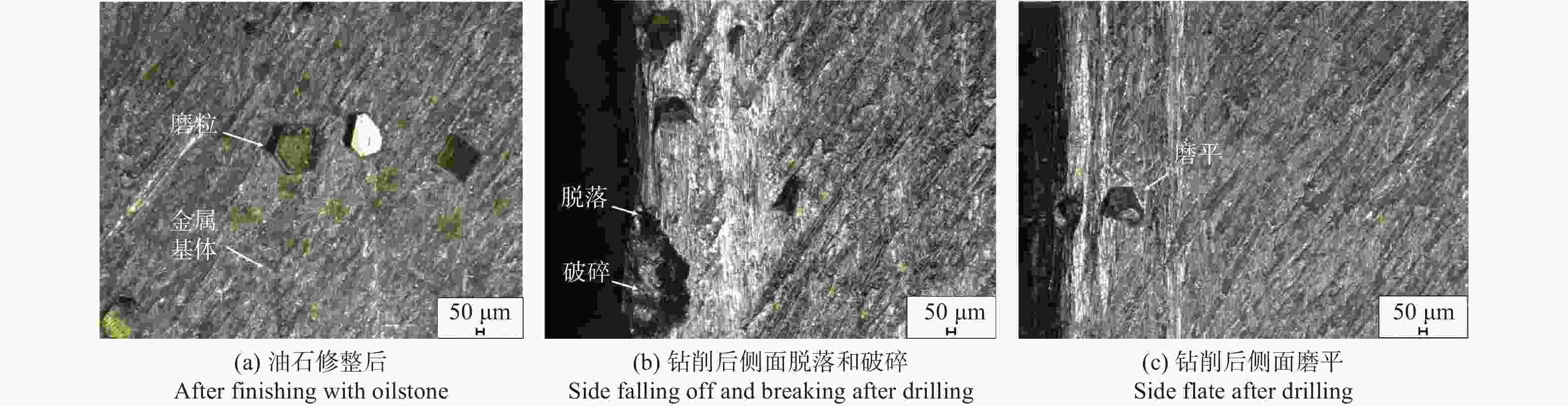

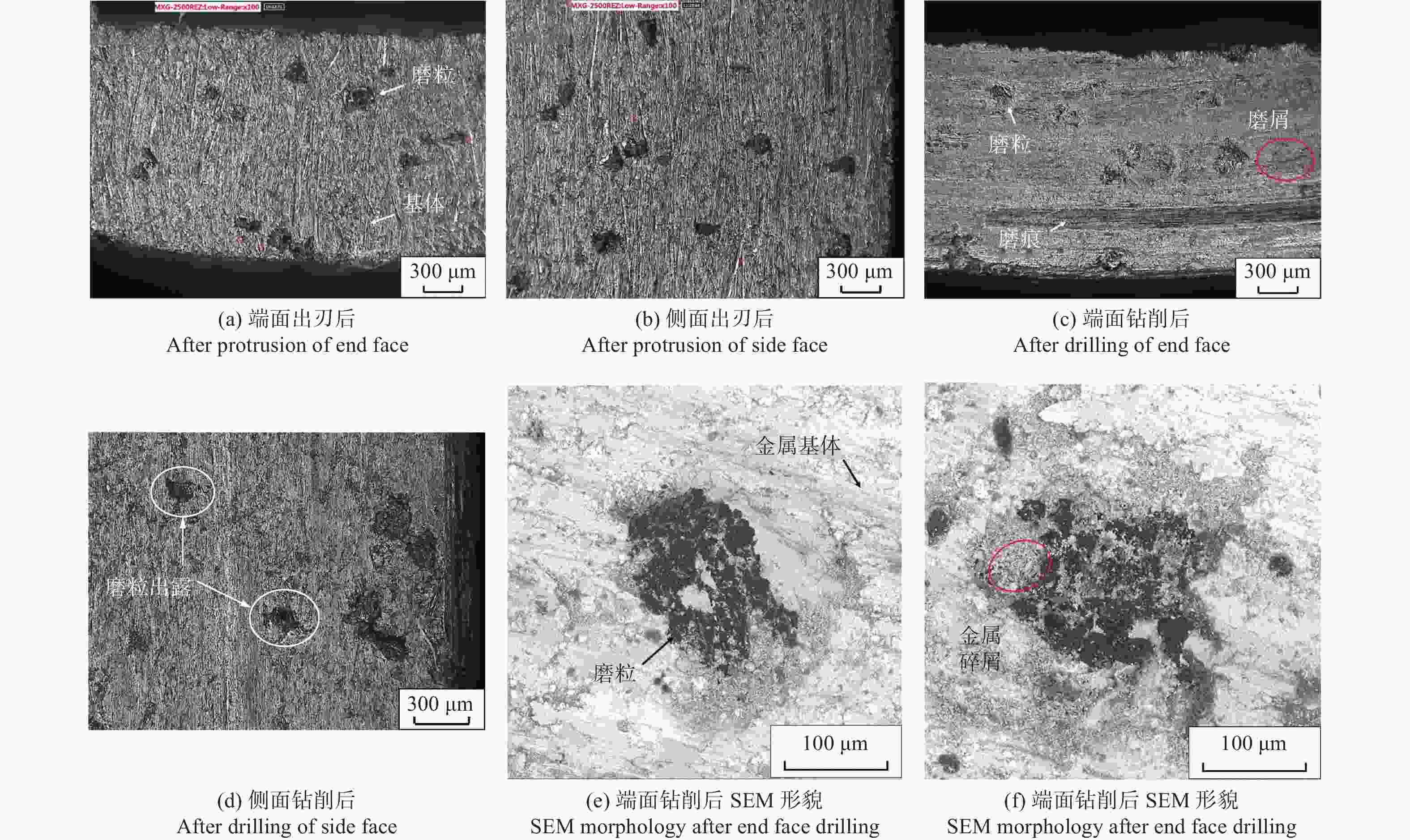

图 6 金刚石磨粒形貌

Figure 6. Morphology of diamond abrasive grains

下载: 全尺寸图片幻灯片

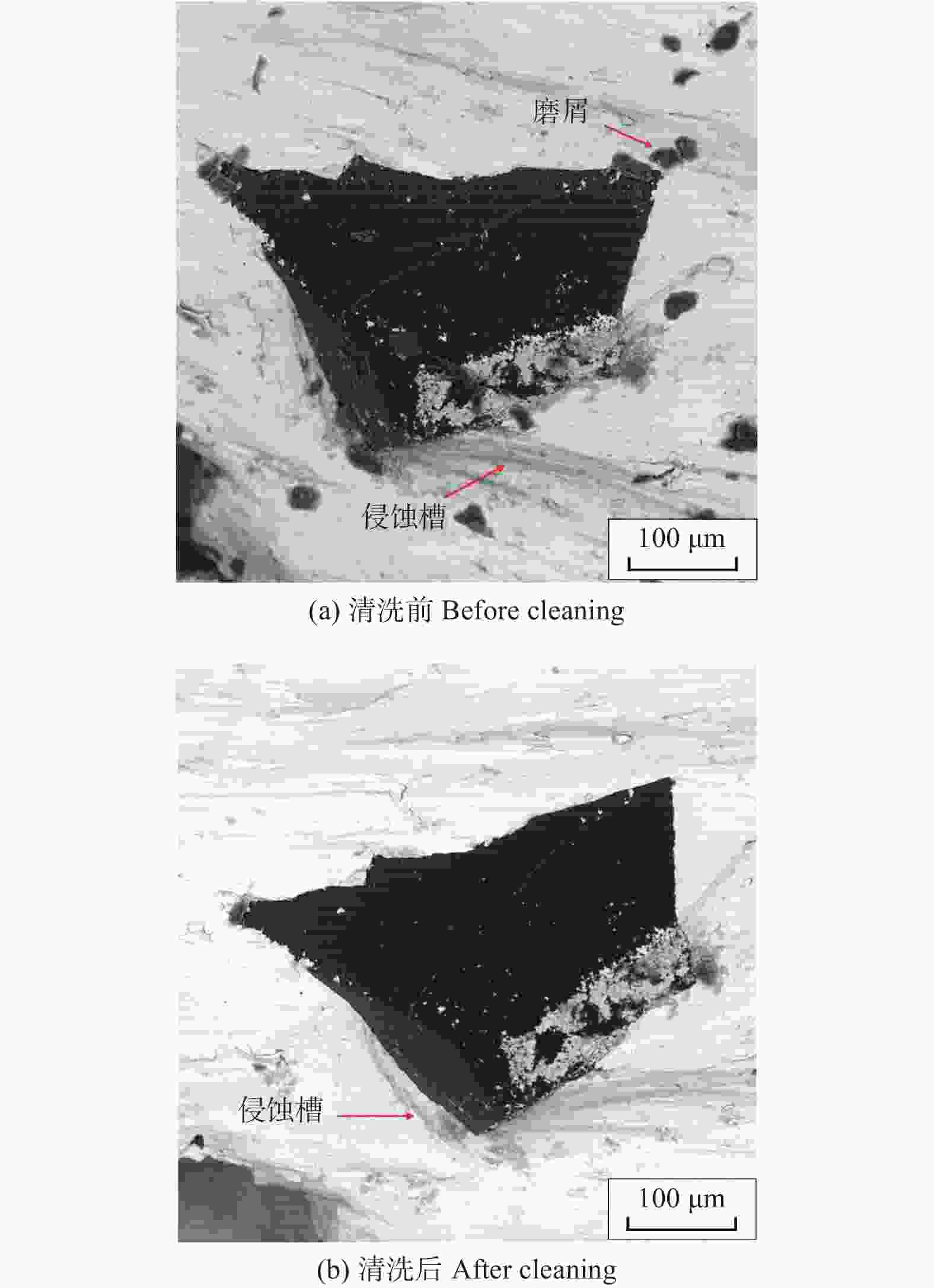

图 7 钻削后金刚石磨粒的SEM形貌

Figure 7. SEM morphology of diamond abrasive grains after drilling

下载: 全尺寸图片幻灯片

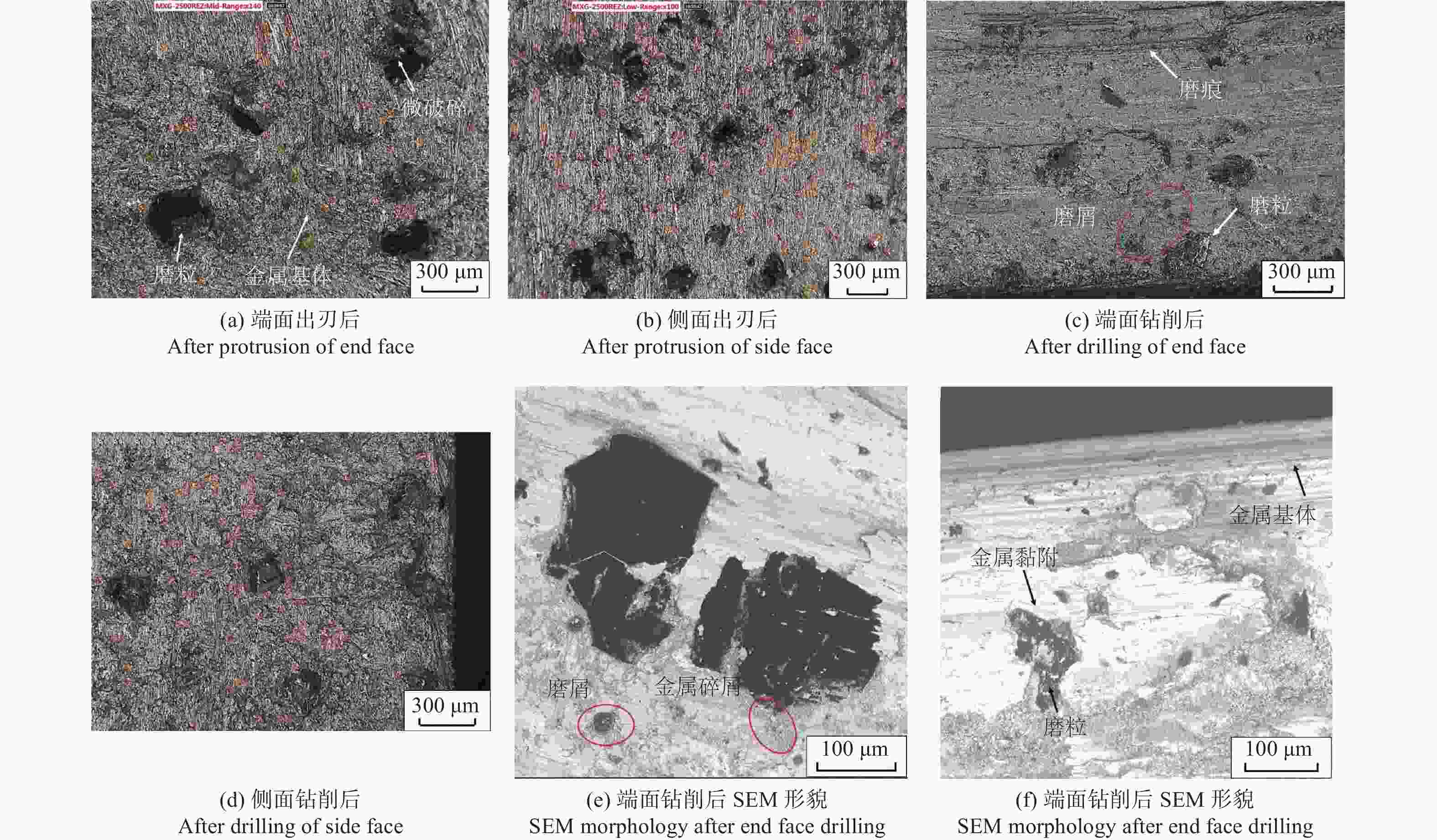

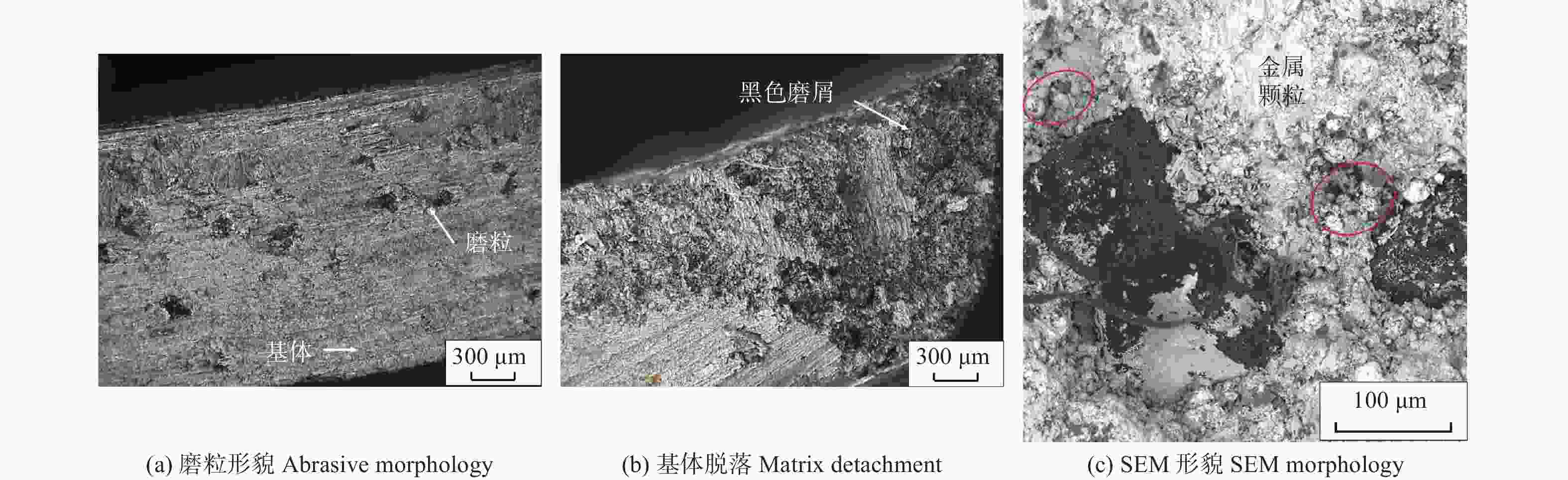

图 8 Fe基cBN套料钻表面形貌

Figure 8. Surface morphology of iron-based cBN core drill

下载: 全尺寸图片幻灯片

图 9 W基cBN套料钻表面形貌

Figure 9. Surface morphology of tungsten based cBN core drill

下载: 全尺寸图片幻灯片

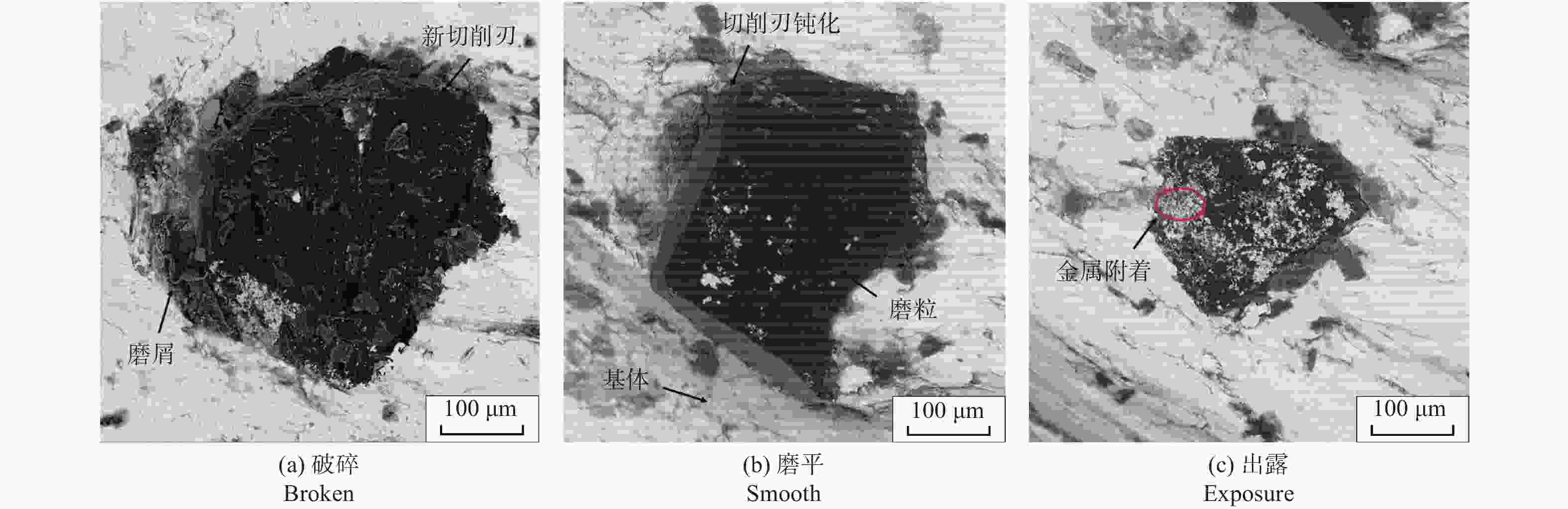

图 10 W基cBN套料钻断齿形貌

Figure 10. Broken tooth morphology of tungsten based cBN core drill

下载: 全尺寸图片幻灯片

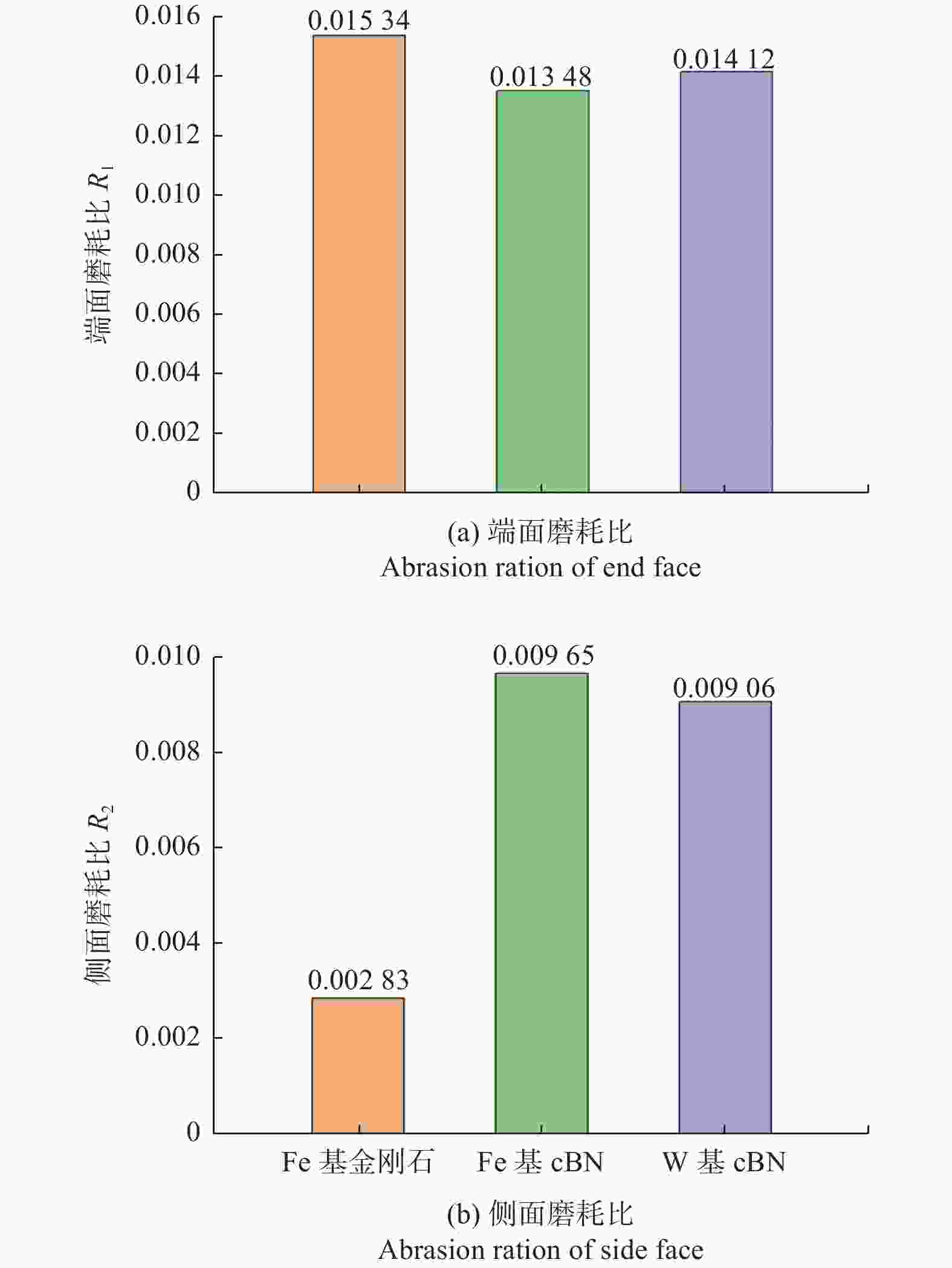

图 11 3种套料钻磨耗比

Figure 11. Abrasion ratios of three core drills

下载: 全尺寸图片幻灯片

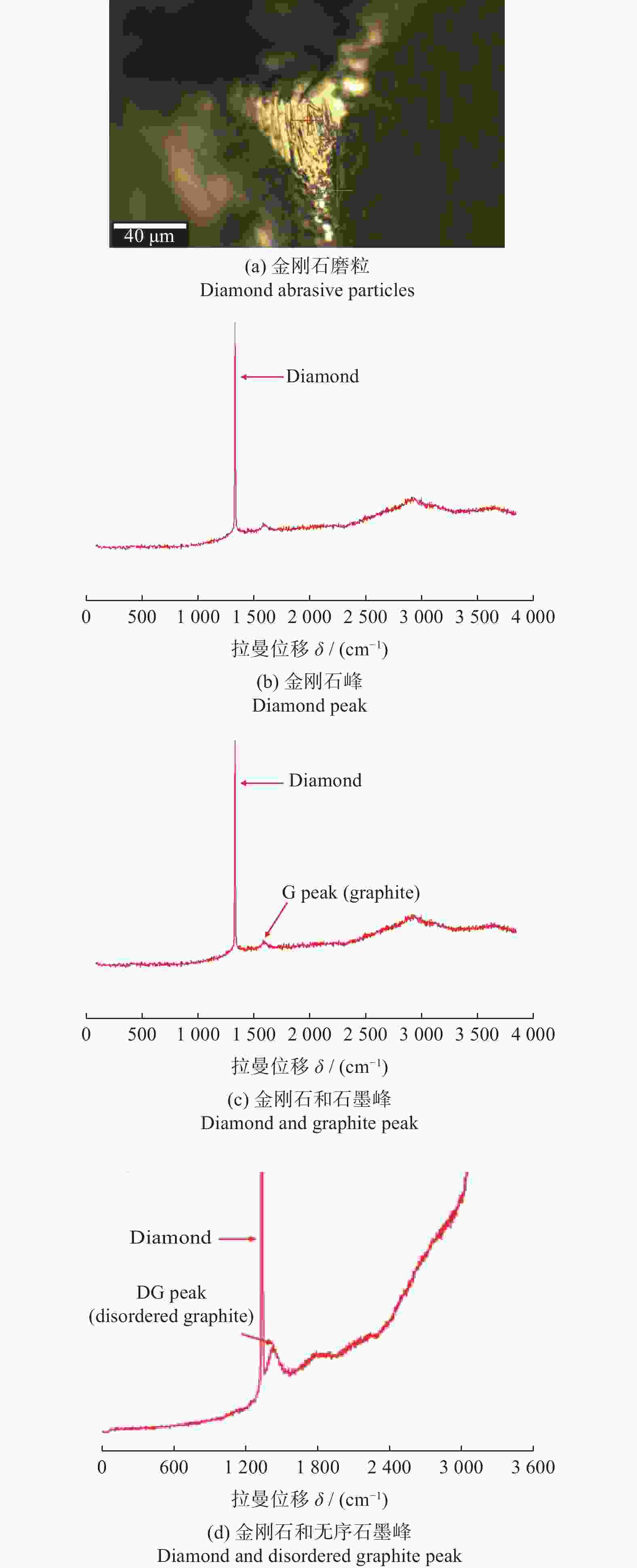

图 12 金刚石磨粒典型的拉曼光谱峰

Figure 12. Typical Raman spectral peaks of diamond abrasive grains

下载: 全尺寸图片幻灯片

图 13 钻削后磨屑的SEM 形貌

Figure 13. SEM morphology of grinding debris after drilling

下载: 全尺寸图片幻灯片

表 1 P110钢的化学成分^[16]

Table 1. Chemical compositions of the P110 steel^[16]

元素质量分数 ω / %

C 0.260
Si 0.220
Mn 1.500
P 0.008
S 0.002
Cr 0.157
Ni 0.013
Ti 0.035
Cu 0.012
Fe 余量

下载: 导出CSV

表 2 套料钻刀头烧结工艺

Table 2. Sintering process of core drill head

实验号烧结温度θ / ℃ 保温时间
t / min 烧结压力
σ /MPa

Fe基刀头 830 4.5 27.8
W基刀头 920 6.5 30.0

下载: 导出CSV

参考文献(18)

[1]	刘长利. 两种典型介质中P110钢的腐蚀行为研究 [D]. 大庆: 东北石油大学, 2011. LIU Changli. Research on the corrosion behavior of P110 steel in two typical solutions [D]. Daqing: Northeast Petroleum University, 2011.
[2]	高立新, 谷坛, 闫静, 等. 高酸性条件下元素硫对碳钢腐蚀的影响 [J]. 天然气工业,2015,35(4):94-98. GAO Lixin, GU Tan, Yan Jing, et al. Corrosion of sulfur to carbon steel under the condition of high acidity [J]. Natural Gas Industry,2015,35(4):94-98.
[3]	刘志德, 路民旭, 肖学兰, 等. 高含硫气田元素硫腐蚀机理及其评价方法 [J]. 石油与天然气化工,2012,41(5):495-498. LIU Zhide, LU Minxu, XIAO Xuelan, et al. Elemental sulfur corrosion mechanism and evaluation methods for high sour gas fields [J]. Chemical Engineering of Oil & Gas,2012,41(5):495-498.
[4]	赵波, 李亮亮, 田岿, 等. SLCD-I型组合齿磨鞋力学性能分析 [J]. 石油机械,2020,48(10):30-38. ZHAO Bo, LI Liangliang, TIAN Kui, et al. Analysis of mechanical properties of SLCD-I composite cutter milling shoe [J]. China Petroleum Machinery,2020,48(10):30-38.
[5]	刘彩云, 高伟, 殷红. 立方氮化硼的研究进展 [J]. 人工晶体学报,2022,51(5):781-800. LIU Caiyun, GAO Wei, YIN Hong. Research progress of cubic boron nitride [J]. Journal of Synthetic Crystals,2022,51(5):781-800.
[6]	陈建林. 精密磨削用树脂CBN砂轮的研究及磨削试验[D]. 长沙: 湖南大学, 2006. CHEN Jianlin. Research on resin-bonded cubic boron nitride abrasive grinding wheels for finish-grinding and its grinding experiment [D]. Changsha: Hunan University, 2006.
[7]	周恒. 基于多层钎焊超硬磨料砂轮的钛合金绿色磨抛加工研究 [D]. 南京: 南京航空航天大学, 2010. ZHOU Heng. Study on dry grinding titanium alloys based on multi-layer brazing super abrasive grinding wheel [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010.
[8]	丁文锋. 镍基高温合金高效磨削用单层钎焊立方氮化硼砂轮的研制[D]. 南京: 南京航空航天大学, 2006. DING Wenfeng. Research and development of monolayer brazed CBN wheels for high efficiency grinding nickel-based superalloy [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2006.
[9]	DU Q, WANG X, ZHANG S, et al. Research status on surface metallization of diamond [J]. Materials Research Express,2019,6(12):122005.
[10]	李时春, 周振红, 莫彬, 等. 激光钎焊多层金刚石磨粒Ni-Cr合金成形工艺研究 [J]. 中国机械工程,2021,32(8):967-975. LI Shichun, ZHOU Zhenhong, MO Bin, et al. Study on forming processes for laser brazing of multilayer diamond grains and Ni-Cr alloy [J]. China Mechanical Engineering,2021,32(8):967-975.
[11]	BAI Q, WANG Z, GUO Y, et al. Graphitization behavior of single crystal diamond for the application in nano-metric cutting [J]. Current Nanoscience,2018,14(5):377-383. doi: 10.2174/1573413714666180517080721
[12]	SHIMADA S, TANAKA H, HIGUCHI M, et al. Thermo-chemical wear mechanism of diamond tool in machining of ferrous metals [J]. CIRP Annals,2004,53(1):57-60. doi: 10.1016/S0007-8506(07)60644-1
[13]	NARULKAR R, BUKKAPATNAM S, RAFF L M, et al. Graphitization as a precursor to wear of diamond in machining pure iron: A molecular dynamics investigation [J]. Computational Materials Science,2009,45(2):358-366. doi: 10.1016/j.commatsci.2008.10.007
[14]	SUN B, JIANG C, ZONG F. Performance and wear of brazing diamond grinding disc in machining gray cast iron [J]. Diamond and Related Materials,2020,106:107820. doi: 10.1016/j.diamond.2020.107820
[15]	TONSHOFF H K, HILLMANN-APMANN H. Diamond tools for wire sawing metal components [J]. Diamond and Related Materials,2002,11(3/4/5/6):742-748. doi: 10.1016/S0925-9635(01)00727-0
[16]	毛汀, 吴贵阳, 李珊, 等. 盐浴渗氮对P110钢耐硫腐蚀性能的影响 [J]. 石油与天然气化工,2020,49(6):76-81. doi: 10.3969/j.issn.1007-3426.2020.06.013 MAO Ting, WU Guiyang, LI Shan, et al. Effect of salt bath nitriding on sulfur corrosion resistance of P110 steel [J]. Chemical Engineering of Oil & Gas,2020,49(6):76-81. doi: 10.3969/j.issn.1007-3426.2020.06.013
[17]	CHEN Z, SUBHASH G, TULENKO J S. Raman spectroscopic investigation of graphitization of diamond during spark plasma sintering of UO₂-diamond composite nuclear fuel [J]. Journal of Nuclear Materials,2016,475:1-5. doi: 10.1016/j.jnucmat.2016.03.015
[18]	ZOU L, HUANG Y, ZHOU M, et al. Thermochemical wear of single crystal diamond catalyzed by ferrous materials at elevated temperature [J]. Crystals (Basel),2017,7(4):116. doi: 10.3390/cryst7040116
