Cr元素对Ni基无硼钎料钎焊金刚石的组织及性能影响

王朋波 石梦阳 张雷 纠永涛 程战 秦建 丁梓超 徐东

王朋波, 石梦阳, 张雷, 纠永涛, 程战, 秦建, 丁梓超, 徐东. Cr元素对Ni基无硼钎料钎焊金刚石的组织及性能影响[J]. 金刚石与磨料磨具工程, 2022, 42(4): 421-427. doi: 10.13394/j.cnki.jgszz.2022.0056
引用本文: 王朋波, 石梦阳, 张雷, 纠永涛, 程战, 秦建, 丁梓超, 徐东. Cr元素对Ni基无硼钎料钎焊金刚石的组织及性能影响[J]. 金刚石与磨料磨具工程, 2022, 42(4): 421-427. doi: 10.13394/j.cnki.jgszz.2022.0056
WANG Pengbo, SHI Mengyang, ZHANG Lei, JIU Yongtao, CHENG Zhan, QIN Jian, DING Zichao, XU Dong. Effect of Cr on microstructure and properties of brazed diamond with Ni-based boron free solder[J]. Diamond &Abrasives Engineering, 2022, 42(4): 421-427. doi: 10.13394/j.cnki.jgszz.2022.0056
Citation: WANG Pengbo, SHI Mengyang, ZHANG Lei, JIU Yongtao, CHENG Zhan, QIN Jian, DING Zichao, XU Dong. Effect of Cr on microstructure and properties of brazed diamond with Ni-based boron free solder[J]. Diamond &Abrasives Engineering, 2022, 42(4): 421-427. doi: 10.13394/j.cnki.jgszz.2022.0056

Cr元素对Ni基无硼钎料钎焊金刚石的组织及性能影响

doi: 10.13394/j.cnki.jgszz.2022.0056
基金项目: 新型钎焊材料与技术国家重点实验室开放课题(SKLABFMT-201803) ;安徽省重点研究与开发计划(2022i01020008)
详细信息
    通讯作者:

    徐东,男,1973年生,教授、博士生导师。主要研究方向:异种材料连接技术,新型钎焊材料及钎焊技术。E-mail:frank@shu.edu.cn

  • 中图分类号: TQ164; TG74; TG401

Effect of Cr on microstructure and properties of brazed diamond with Ni-based boron free solder

  • 摘要: 针对B元素易使钎焊金刚石接头出现较多硬脆相的问题,制备一种新型Ni–Cr–Si–Cu–Sn无硼活性钎料,分析Cr元素对钎料组织和钎焊金刚石试样性能的影响规律。结果表明:Cr元素具有细化钎料晶粒和调控钎料中各元素分布的作用,可以提高钎料合金的显微硬度。当Cr元素质量分数过高时,会使钎料的熔点升高,钎料的润湿性能下降。综合来说,含有质量分数为15%的Cr的无硼钎料性能最佳,钎焊金刚石试样的磨削性能较优良,接头处出现多种形状的Cr7C3相,实现了钎料对金刚石的高强度连接。

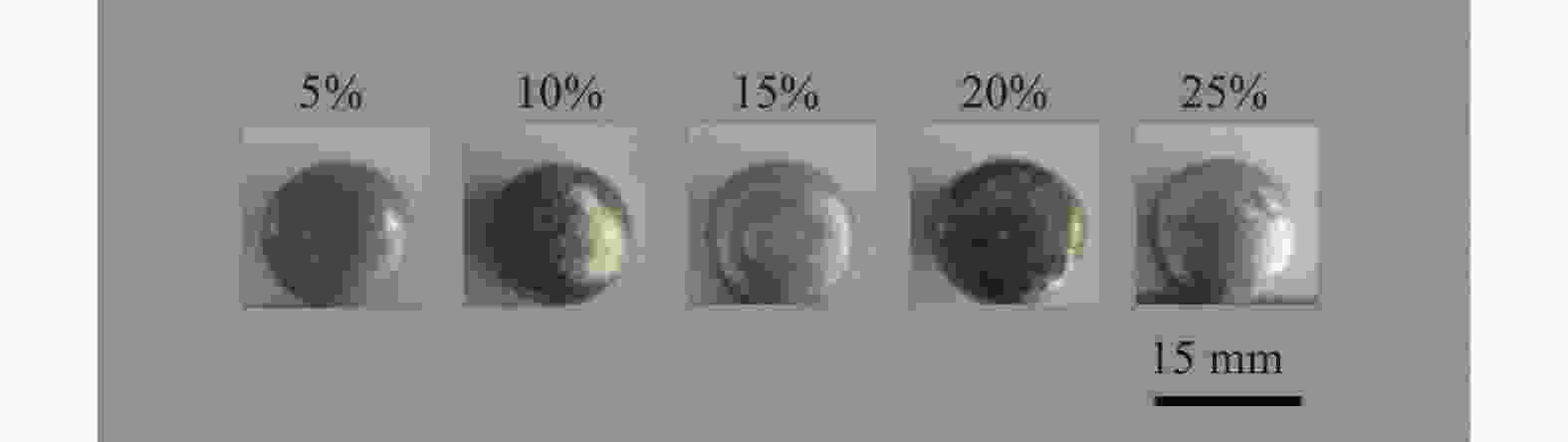

  • 图  1  钎料铸锭宏观形貌

    Figure  1.  Macro morphology of solder alloy ingot

    图  2  各组分钎料合金的显微组织

    Figure  2.  Microstructure of each component solder alloy

    图  3  各钎料合金的晶粒大小

    Figure  3.  Grain size of each solder alloy

    图  4  钎料合金显微组织的各元素面扫描图

    Figure  4.  Element surface scanning diagram of microstructure of solder alloy

    图  5  各钎料的XRD图谱

    Figure  5.  XRD of solder

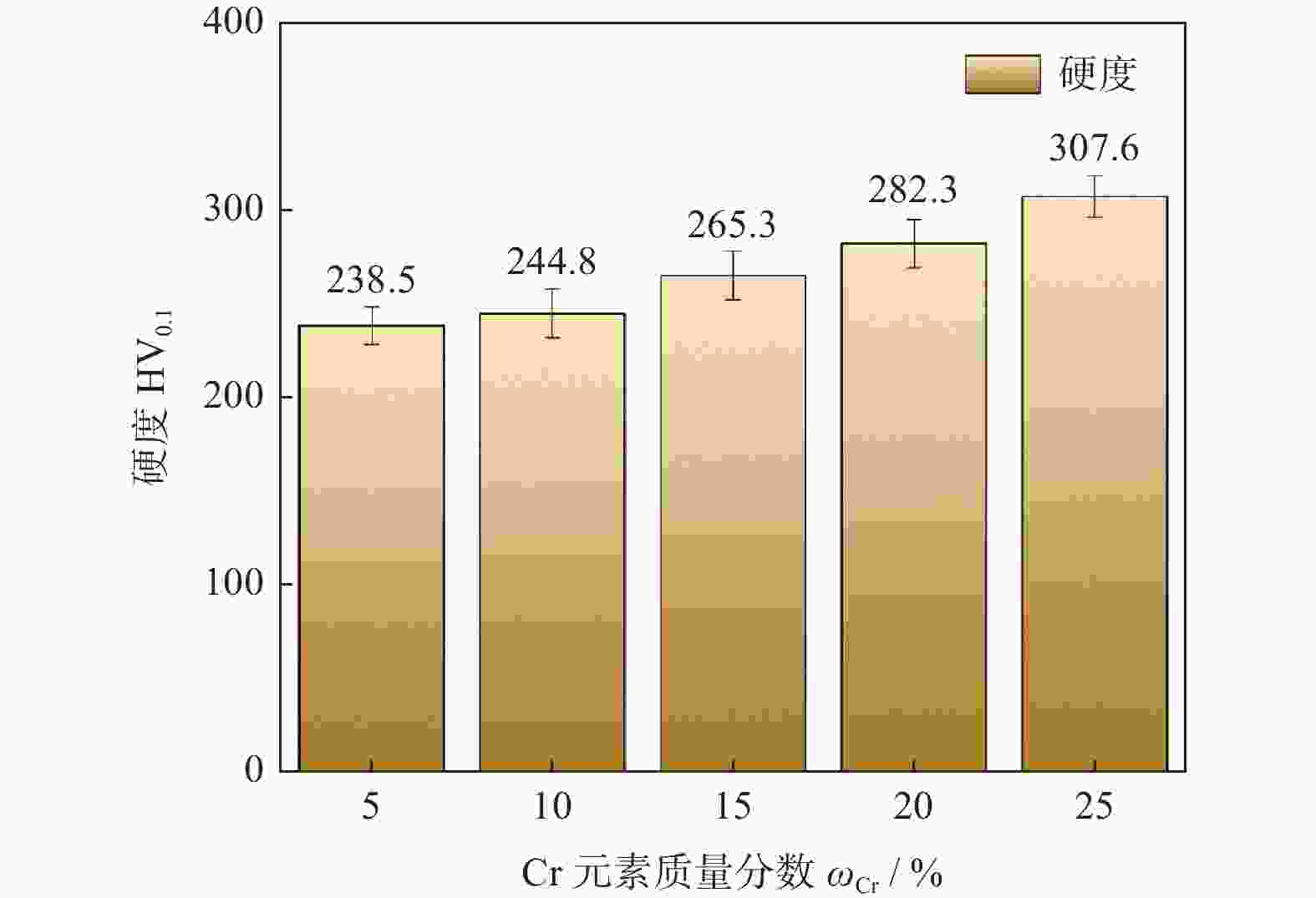

    图  6  不同Cr元素质量分数的钎料合金的显微硬度

    Figure  6.  Microhardness of solder alloy with different Cr element mass fraction

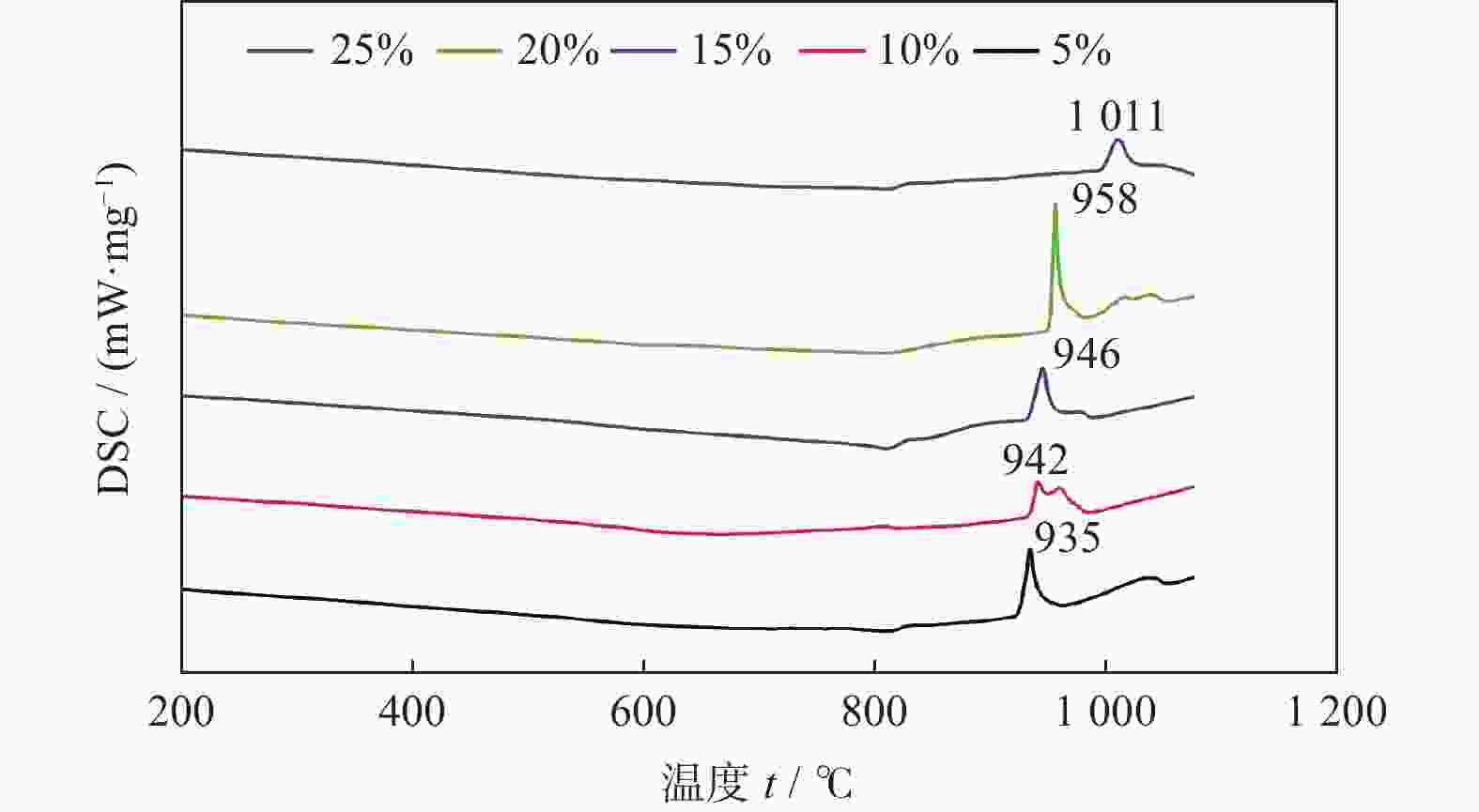

    图  7  不同钎料合金的DSC曲线

    Figure  7.  DSC curves of different solder alloys

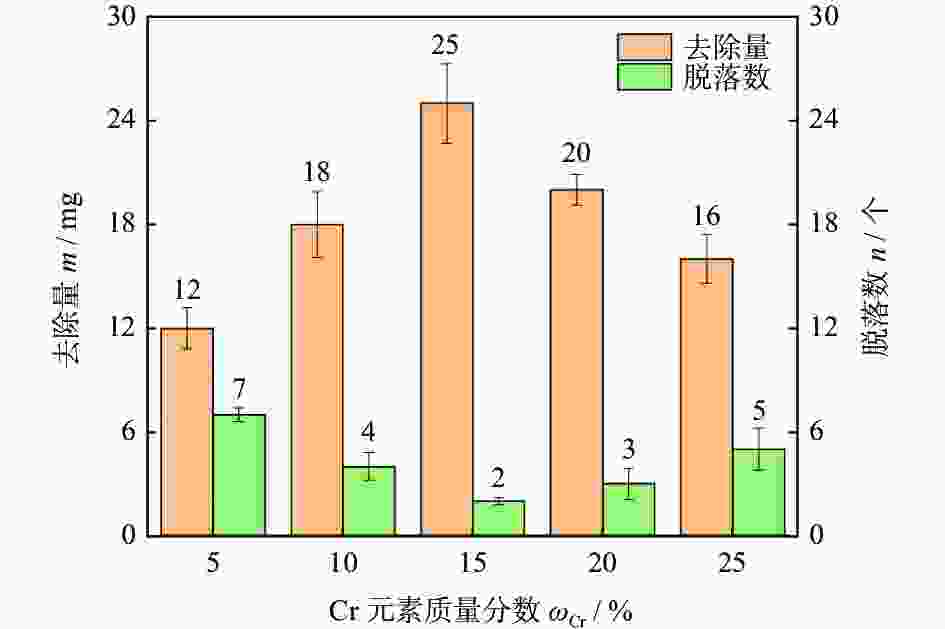

    图  8  不同钎焊式样的摩擦结果

    Figure  8.  Friction results of different brazing patterns

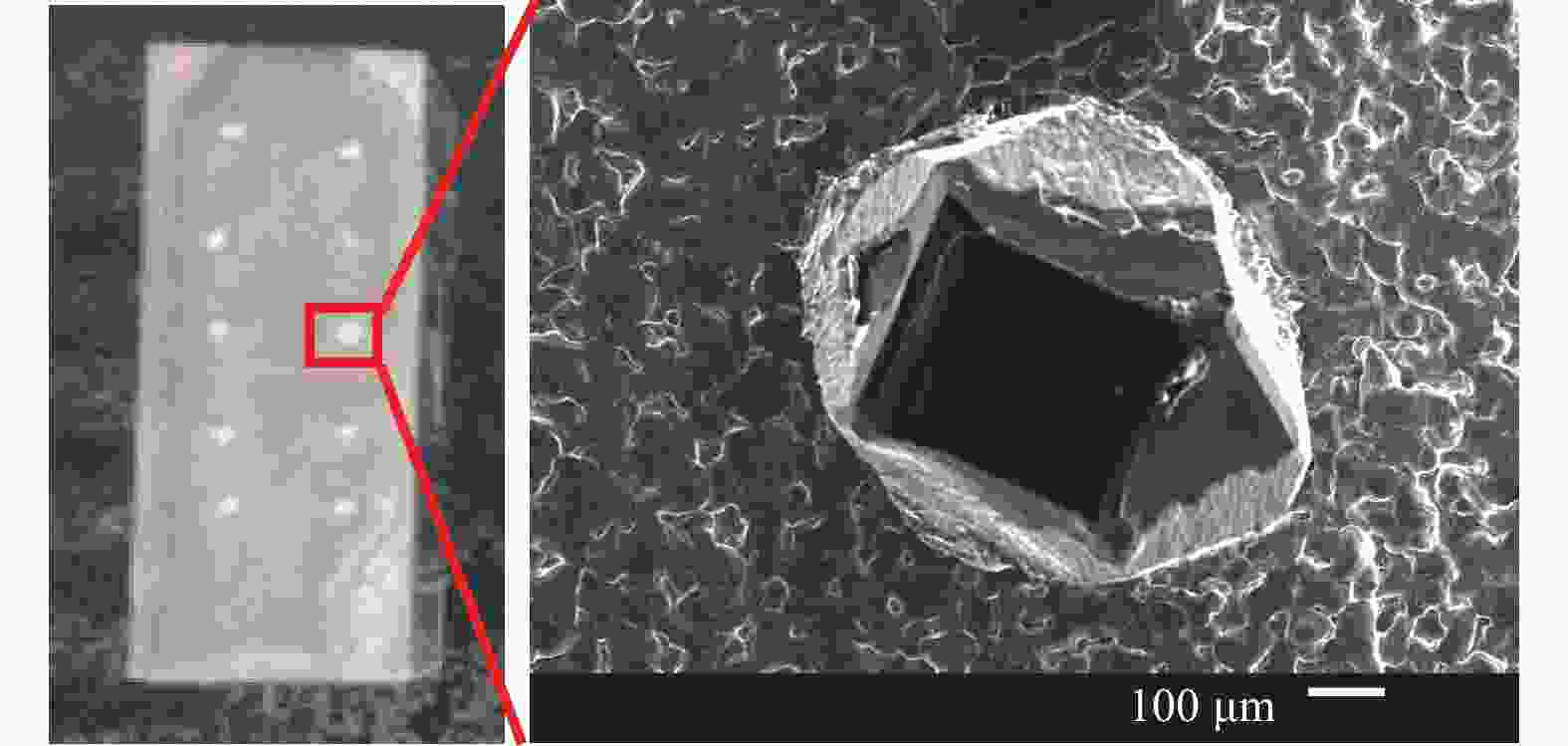

    图  9  3号钎料钎焊金刚石形貌

    Figure  9.  Morphology of diamond brazed with No. 3 solder

    图  10  钎焊接头蚀刻后的金刚石形貌

    Figure  10.  Diamond morphology of brazed joint after etching

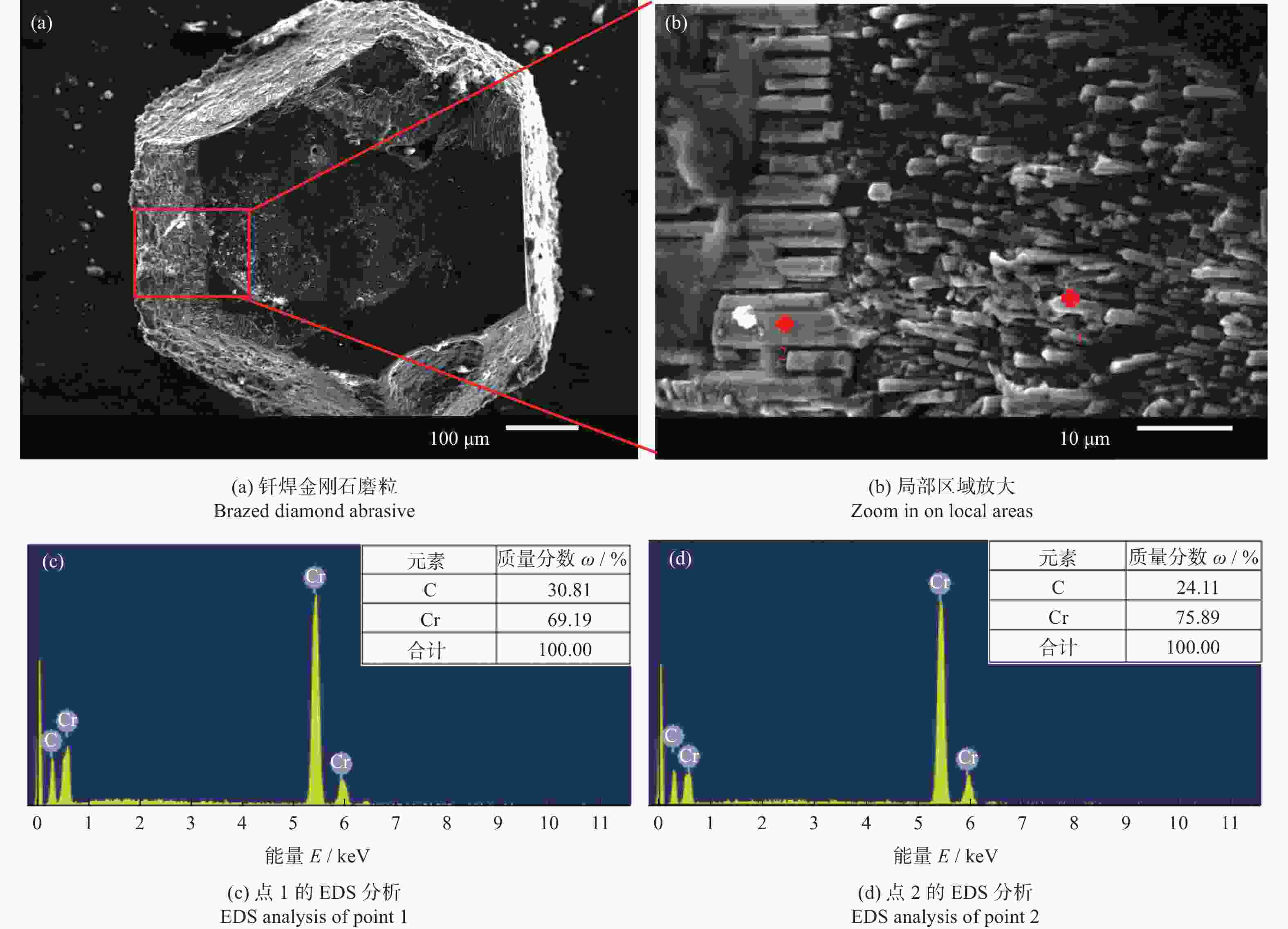

    图  11  钎焊接头刻蚀后的金刚石形貌

    Figure  11.  Diamond morphology of brazed joint after etching

    表  1  新型无硼钎料成分表

    Table  1.   Composition of new boron free solder

    钎料编号Cr 质量
    分数
    ωCr / %
    Sn质量
    分数
    ωSn / %
    Cu质量
    分数
    ωCu / %
    Si质量
    分数
    ωSi / %
    Ni质量
    分数
    ωNi / %
    1号 55205余量
    2号105205余量
    3号155205余量
    4号205205余量
    5号255205余量
    下载: 导出CSV
  • [1] 龙伟民, 郝庆乐, 傅玉灿, 等. 金刚石工具钎焊用连接材料研究进展 [J]. 材料导报, 2020, 34(23): 23138-23144.

    LONG Weimin, HAO Qingyue, FU Yucan, et al. Research progress of bonding materials for diamond tool brazing [J]. Materials Reports, 2020, 34(23): 23138-23144.
    [2] CHEN N, YUAN Y, GUO C, et al. Design, optimization and manufacturing of polycrystalline diamond micro-end-mill for micro-milling of GH4169 [J]. Diamond and Related Materials,2020,108:107915. doi: 10.1016/j.diamond.2020.107915
    [3] SUN B J, MA H L, LIAO S L. Wear characteristics of brazed diamond saw blade in cutting 304 stainless steel [J]. Diamond and Related Materials,2022,123:108869. doi: 10.1016/j.diamond.2022.108869
    [4] DUAN D Z, HAN F, DING J J, et al. Microstructure and performance of brazed diamonds with multilayer graphene-modified Cu–Sn–Ti solder alloys [J]. Ceramics International,2021,47(16):22854-22863. doi: 10.1016/j.ceramint.2021.04.304
    [5] SI S H, DING Z C, ZUO R Z, et al. Adding Hf element to improve the strength and wear resistance of diamond brazed with Ni-based boron-free brazing filler metal [J]. Diamond and Related Materials,2022,121:108723. doi: 10.1016/j.diamond.2021.108723
    [6] LONG W M, LIU D S, WU A P, et al. Influence of laser scanning speed on the formation property of laser brazing diamond coating [J]. Diamond and Related Materials,2020,110:108085. doi: 10.1016/j.diamond.2020.108085
    [7] HUANG G Q, WANG Y D, ZHANG M Q, et al. Brazing diamond grits onto AA7075 aluminium alloy substrate with Ag–Cu–Ti filler alloy by laser heating [J]. Chinese Journal of Aeronautics,2020,110:108085.
    [8] LI H L, CHEN J, CUI B, et al. Effects of Ga on mechanical properties and microstructure of Cu–Sn–Ti filler [J]. Physica Status Solidi A,2022,219:2100203. doi: 10.1002/pssa.202100203
    [9] CUI B, ZHAO W X, ZUO R Z, et al. The abrasion resistance of brazed diamond using Cu–Sn–Ti composite alloys reinforced with boron carbide [J]. Diamond and Related Materials,2022,124:108926. doi: 10.1016/j.diamond.2022.108926
    [10] ZHAO J, GUO M, HU S P, et al. Brazing of large synthetic diamond grits using graphene nanoplatelets reinforced Ni–Cr composite fillers [J]. Diamond and Related Materials, 2020, 109: 108004.
    [11] 李杨, 卢金斌, 穆云超, 等. Cu–P–Sn对镍基钎料真空钎焊金刚石的影响 [J]. 热加工工艺,2018,47(9):58-61,66. doi: 10.14158/j.cnki.1001-3814.2018.09.014

    LI Yang, LU Jinbin, MU Yunchao, et al. Effect of Cu–P–Sn on brazing diamond with Ni-based filler alloy [J]. Hot Working Technology,2018,47(9):58-61,66. doi: 10.14158/j.cnki.1001-3814.2018.09.014
    [12] ZHANG L. Filler metals, brazing processing and reliability for diamond tools brazing: A review [J]. Journal of Manufacturing Processes,2021,66:651-668. doi: 10.1016/j.jmapro.2021.04.015
    [13] 印有胜. 镍基钎料的钎缝脆性及其影响因素 [J]. 焊接学报, 1997(3): 6-12.

    YIN Yousheng. Brazing joint brittleness of nickel base solder and its influencing factors [J]. Transactions of the China Welding Institution, 1997 (3): 6-12.
    [14] HARDWICK L, RODGERS P, PICKERING E, et al. Development of a novel Ni-based multi-principal element alloy filler metal, using an alternative melting point depressant [J]. Metallurgical and Materials Transactions A,2021,59:2534-2548.
    [15] 闾川阳, 陈刚强, 唐夏焘, 等. BNi71CrSi钎料钎焊Hastelloy N合金的接头组织和性能 [J]. 航空学报,2022,43(2):90-101.

    LU Chuanyang, CHEN Gangqiang, TANG Xiatao, et al. Structure and mechanical properties of Hastelloy N superalloy joints brazed using BNi71CrSi filler alloy [J]. Journal of Aeronautics,2022,43(2):90-101.
    [16] ZHU W B, ZHANG W W, ZHOU W, et al. Improved microstructure and mechanical properties for SnBi solder alloy by addition of Cr powders [J]. Journal of Alloys and Compounds,2019,789:805-813. doi: 10.1016/j.jallcom.2019.03.027
    [17] TAO Y, XUE S B, LIU H, et al. Effect of Cr addition on microstructure and properties of AuGa solder [J]. Metals,2020,10(11):1449. doi: 10.3390/met10111449
    [18] DONG H G, YANG J, XIA Y Q, et al. Effect of Cr content in Ni-based amorphous filler on microstructure and shear strength of K4169 nickel-based alloy brazed joint [J]. Journal of Materials Processing Technology,2021,290:116975. doi: 10.1016/j.jmatprotec.2020.116975
    [19] 张绍昆. Ni基非晶钎料炉中钎焊金刚石微粉及其加工性能的研究 [D]. 青岛: 青岛科技大学, 2018.

    ZHANG Shaokun. Study on brazing diamond powder in Ni based amorphous solder furnace and its machinability [D]. Qingdao: Qingdao University of Science and Technology, 2018.
    [20] 卢金斌, 徐九华. 真空钎焊金刚石界面碳化物的形貌 [J]. 中国有色金属学报,2007(7):1143-1148. doi: 10.3321/j.issn:1004-0609.2007.07.020

    LU Jinbin, XU Jiuhua. Morphology of carbides at the interface of vacuum brazing diamond [J]. Chinese Journal of Nonferrous Metals,2007(7):1143-1148. doi: 10.3321/j.issn:1004-0609.2007.07.020
    [21] 苏仕超, 肖冰, 王树义, 等. Ni–Cr合金钎焊镀W金刚石的微观结构分析 [J]. 金刚石与磨料磨具工程, 2021, 41(1): 32-37.

    SU Shicao, XIAO Bing, WANG Shuyi, et al. Microstructure analysis of Ni–Cr alloy brazed and plated with W diamond [J]. Diamond & Abrasives Engineering, 2021, 41(1): 32-37.
