基于空心氧化铝微球造孔的陶瓷结合剂金刚石砂轮

轩闯 王超超 白福厚 张凤林

轩闯, 王超超, 白福厚, 张凤林. 基于空心氧化铝微球造孔的陶瓷结合剂金刚石砂轮[J]. 金刚石与磨料磨具工程, 2022, 42(4): 442-448. doi: 10.13394/j.cnki.jgszz.2021.4001
引用本文: 轩闯, 王超超, 白福厚, 张凤林. 基于空心氧化铝微球造孔的陶瓷结合剂金刚石砂轮[J]. 金刚石与磨料磨具工程, 2022, 42(4): 442-448. doi: 10.13394/j.cnki.jgszz.2021.4001
XUAN Chuang, WANG Chaochao, BAI Fuhou, ZHANG Fenglin. Vitrified bond diamond grinding wheel based on hollow corundum microspheres[J]. Diamond &Abrasives Engineering, 2022, 42(4): 442-448. doi: 10.13394/j.cnki.jgszz.2021.4001
Citation: XUAN Chuang, WANG Chaochao, BAI Fuhou, ZHANG Fenglin. Vitrified bond diamond grinding wheel based on hollow corundum microspheres[J]. Diamond &Abrasives Engineering, 2022, 42(4): 442-448. doi: 10.13394/j.cnki.jgszz.2021.4001

基于空心氧化铝微球造孔的陶瓷结合剂金刚石砂轮

doi: 10.13394/j.cnki.jgszz.2021.4001
基金项目: 广东省“珠江人才计划”本土创新科研团队项目(2017BT01C169);佛山市核心技术攻关项目(1920001000361)。
详细信息
    作者简介:

    轩闯:

    通讯作者:

    张凤林,男,1972年生,博士、教授。主要研究方向:难加工材料的磨削加工以及超硬材料制品。E-mail:zhangfl@gdut.edu.cn

  • 中图分类号: TG74+3;TQ164

Vitrified bond diamond grinding wheel based on hollow corundum microspheres

  • 摘要: 研究空心氧化铝微球质量分数和粒径(0.2, 0.4, 0.6 mm)对砂轮的总气孔率、抗弯强度、硬度和微观结构的影响,制备以空心氧化铝微球为造孔剂的陶瓷结合剂金刚石砂轮,并研究砂轮对石英玻璃的磨削性能。结果表明:随着空心氧化铝微球质量分数增加,砂轮总气孔率升高,抗弯强度和硬度降低;空心氧化铝微球质量分数相同时,其粒径越小,砂轮的总气孔率越高,抗弯强度和硬度越低;制备的空心氧化铝微球陶瓷结合剂金刚石砂轮可用于磨削石英玻璃,加工后石英玻璃的表面粗糙度从0.5113 μm降至0.0206 μm。



  • 图  1  空心氧化铝微球的微观形貌

    Figure  1.  Microstructure of hollow Al2O3 bubble

    图  2  砂轮长条试样

    Figure  2.  Sintered specimen

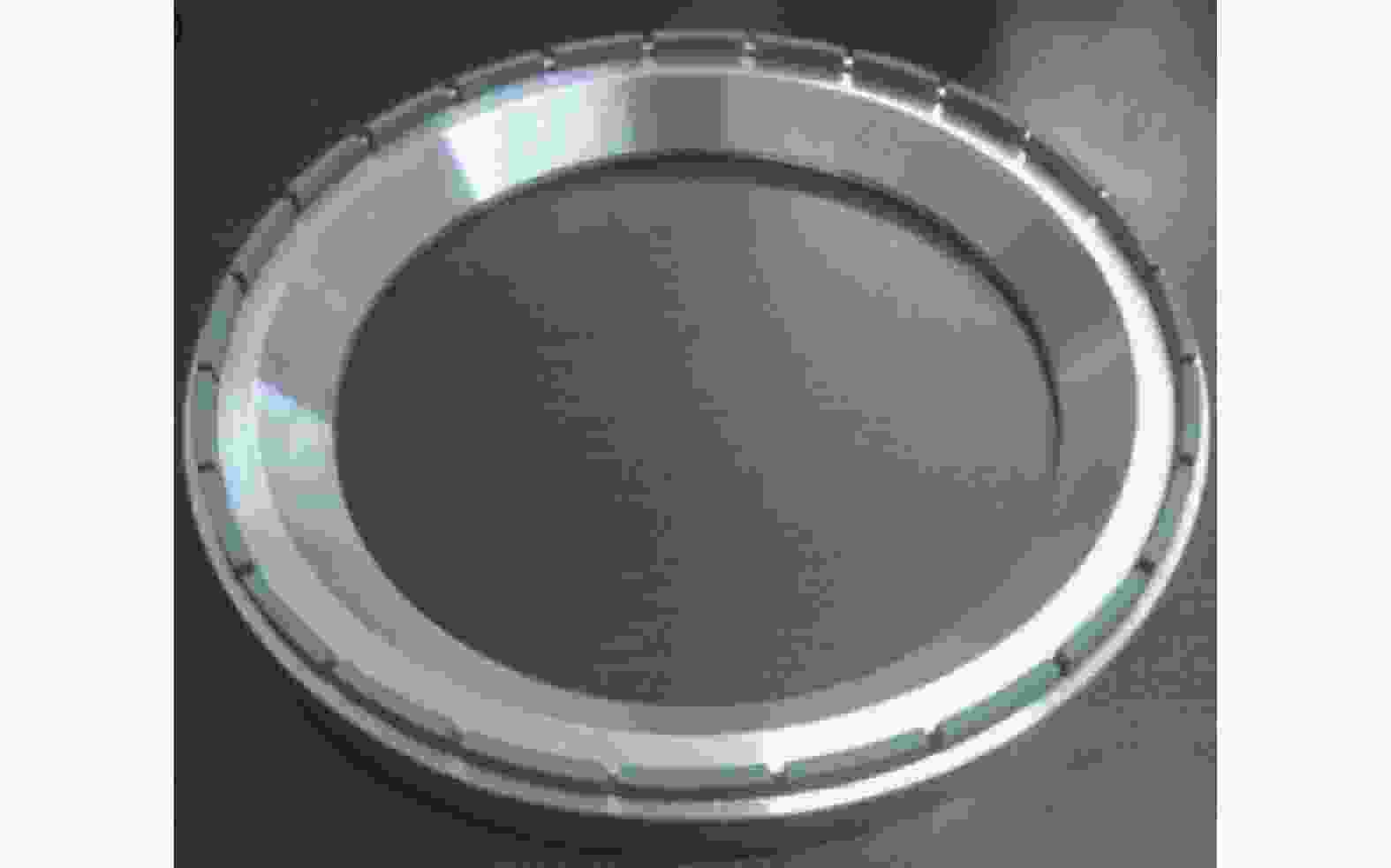

    图  3  陶瓷结合剂金刚石砂轮

    Figure  3.  Ceramic bonded diamond grinding wheel

    图  4  空心氧化铝微球质量分数对砂轮试样总气孔率的影响

    Figure  4.  Influence of mass fraction of hollow Al2O3 microsphere on the total porosity of grinding wheel specimens

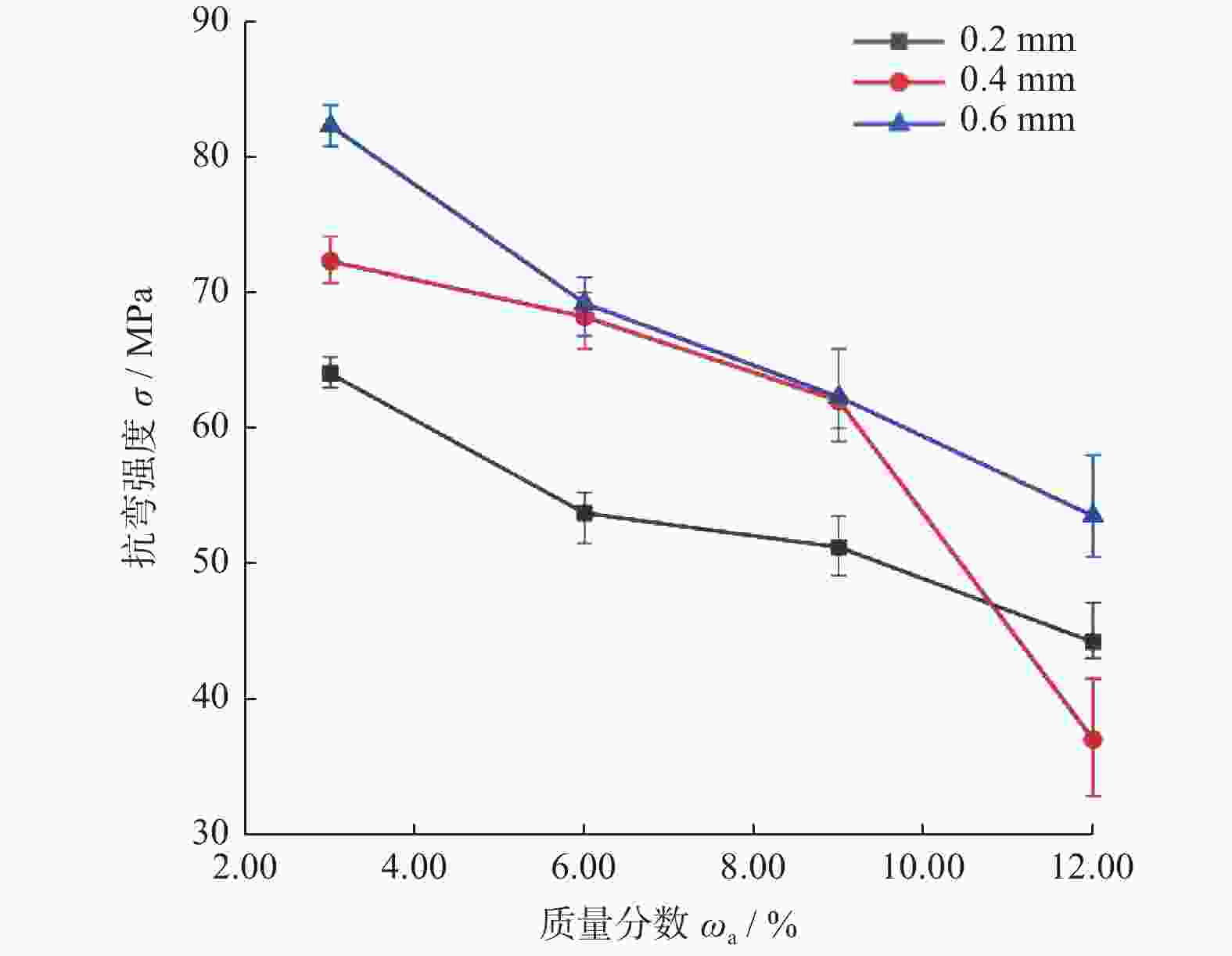

    图  5  空心氧化铝微球质量分数对砂轮试样抗弯强度的影响

    Figure  5.  Influence of mass fraction of hollow Al2O3 microsphere on the flexural strength of grinding wheel specimens

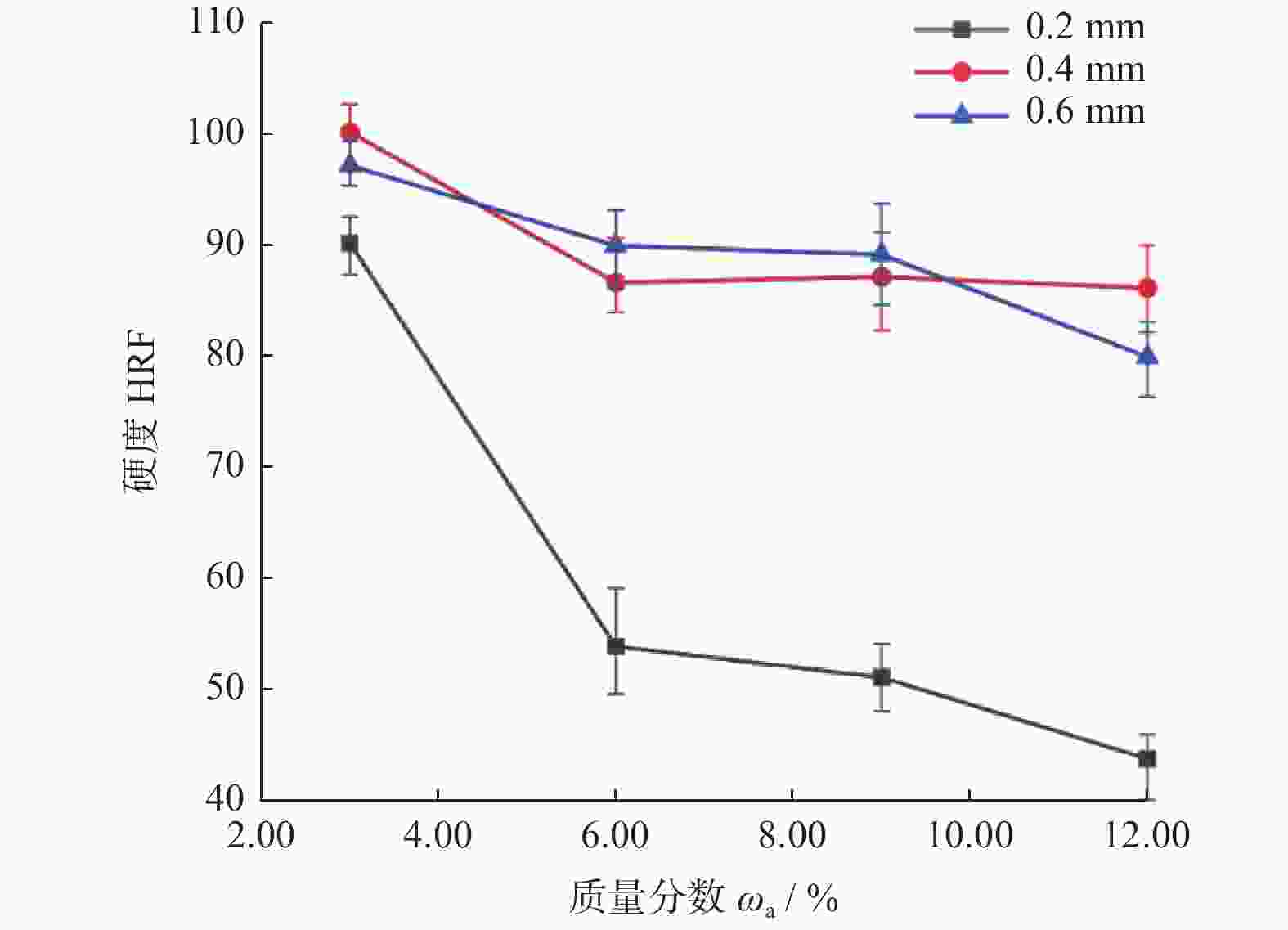

    图  6  空心氧化铝微球质量分数对砂轮试样硬度的影响

    Figure  6.  Influence of mass fraction of hollow Al2O3 microsphere on the hardness of grinding wheel specimens

    图  7  空心氧化铝微球砂轮试样的断面微观结构形貌

    Figure  7.  SEM images of fracture surface of the grinding wheel specimens with hollow Al2O3 microsphere

    图  8  砂轮修整前后表面微观形貌

    Figure  8.  Optical image of diamond grinding wheel before dressing and after dressing

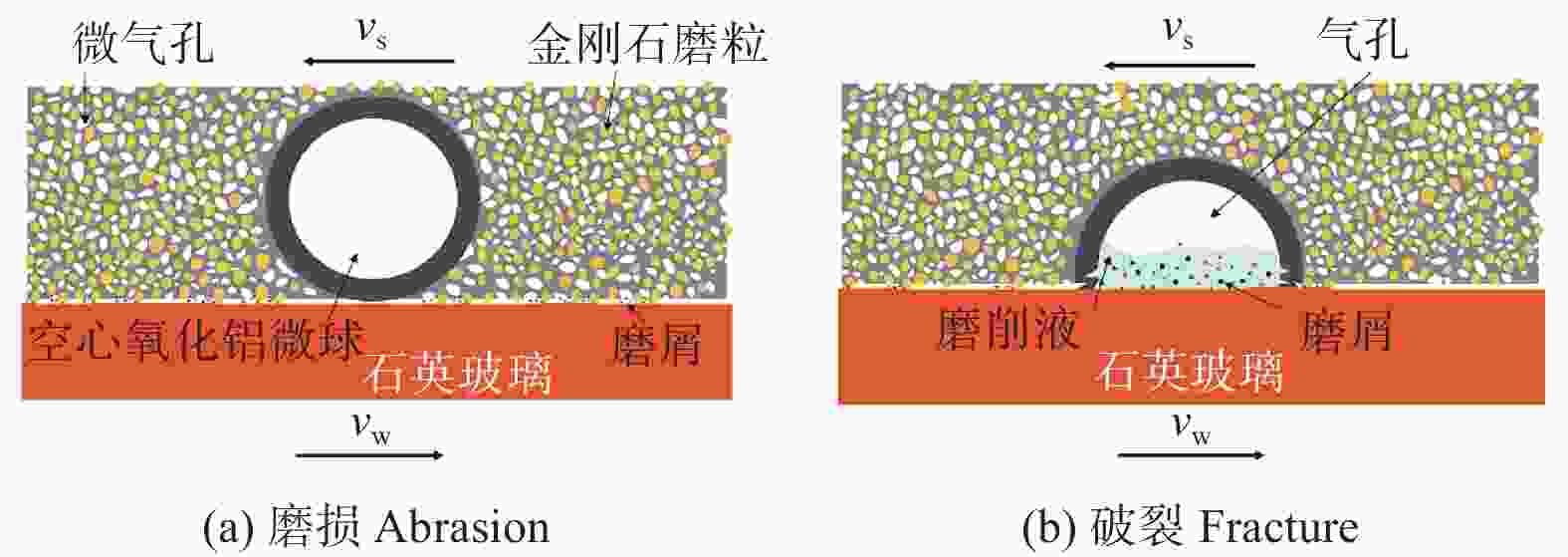

    图  9  磨削加工中空心氧化铝微球作用机理示意图

    Figure  9.  Schematic illustration of the function of hollow Al2O3 microspheres in grinding process

    图  10  石英玻璃磨削前后的表面微观形貌

    Figure  10.  Surface morphology of quartz glass before grinding and after grinding

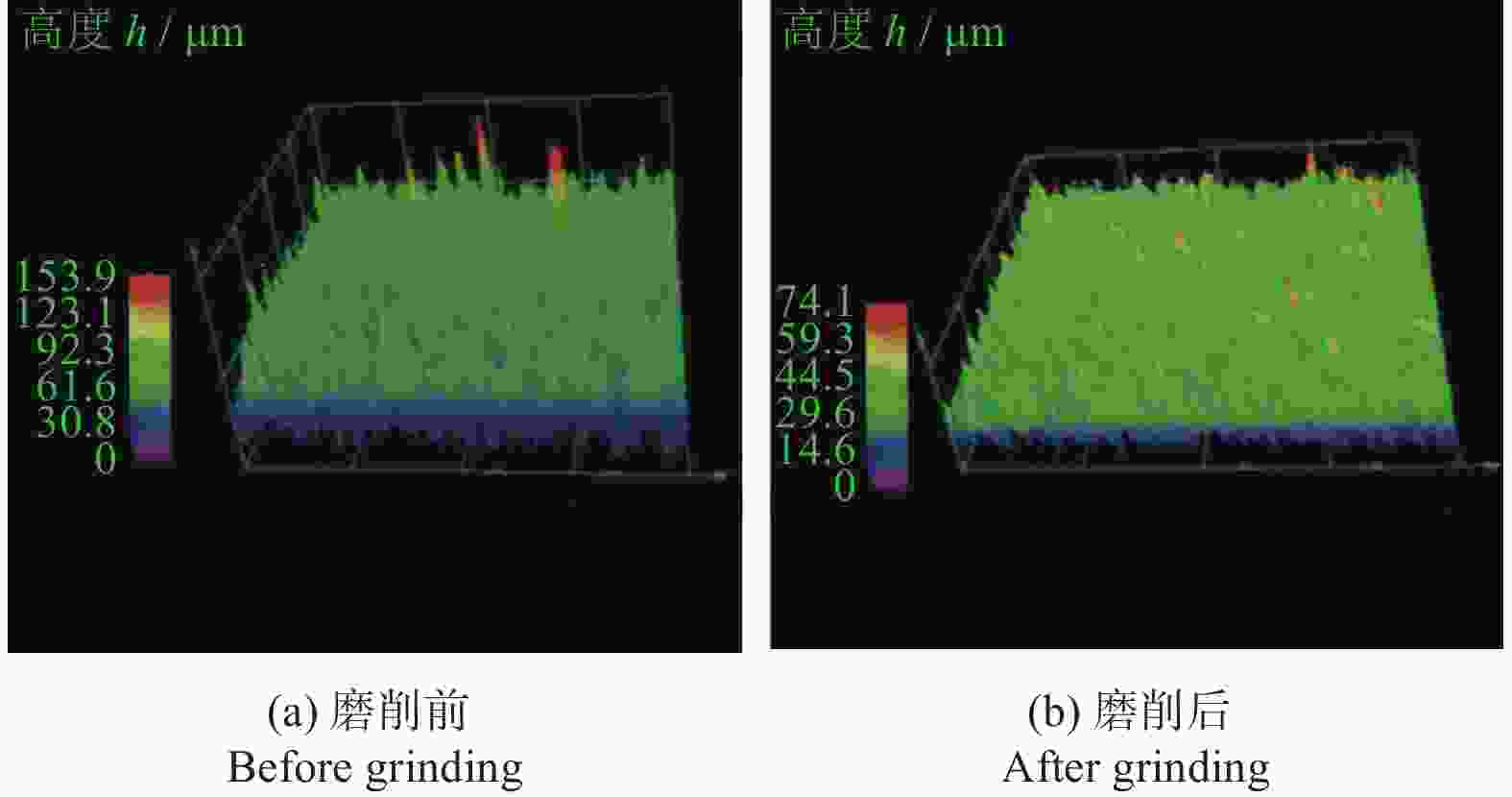

    图  11  石英玻璃磨削前后三维形貌

    Figure  11.  Three-dimensional morphology of quartz glass before grinding and after grinding

    图  12  陶瓷结合剂金刚石砂轮磨削前后表面微观形貌

    Figure  12.  Microstructure of the surface of the vitrified bond diamond grinding wheel before grinding and after grinding

    表  1  金刚石砂轮常用造孔剂及性能

    Table  1.   Common pore forming additives and their performance for diamond grinding wheels

    类型造孔剂名称平均粒径 d / μm造孔效果
    溶解型[10]CaO、Zn、SiO25~45受溶剂影响较大
    加热碳化或分解粉煤灰微球[11]105~235类球形气孔,含量较高时易产生裂纹
    砂糖颗粒[12]100~500不规则形气孔,含量较低时分布较均匀
    石墨颗粒[13]250~300大小不一,不规则形气孔
    CaCO3[13]60~180分布均匀,类球形气孔
    核桃壳粉[14]180分布不均匀,不规则形气孔
    精萘[14]120分布均匀,类球形气孔
    空心微球空心玻璃微球[15]40, 80尺寸相近,分布均匀,类球形气孔
    空心氧化铝微球[16]125, 250尺寸相近,分布均匀,类球形气孔
    下载: 导出CSV

    表  2  不同质量分数的空心氧化铝微球砂轮配方

    Table  2.   Formula and the preparation parameters of grinding wheel specimens with different mass fraction of hollow Al2O3 microsphere

    金刚石
    质量分数
    ωd / %
    结合剂
    质量分数
    ωc / %
    空心氧化铝
    微球质量分数
    ωa / %
    烧结
    温度
    θ / ℃
    保温
    时间
    t / h
    成形
    密度
    ρ / (g·cm−3)
    64.9932.013.006701.02.0
    62.9831.026.006701.02.0
    60.9730.039.006701.02.0
    58.9629.0412.006701.02.0
    下载: 导出CSV
  • [1] 张贵锋. 超硬材料的研究进展 [J]. 材料导报,1996,35(3):35-38.

    ZHANG Guifeng. A survey of research on superhard materials [J]. Materials Reports,1996,35(3):35-38.
    [2] 谢德龙, 温简杰, 方啸虎, 等. 超硬材料制品产业近期发展现状与展望 [J]. 超硬材料工程,2014,26(1):39-42. doi: 10.3969/j.issn.1673-1433.2014.01.012

    XIE Delong, WEN Jianjie, FANG Xiaohu, et al. Current situation and expectation of the superhard material products [J]. Superhard Material Engineering,2014,26(1):39-42. doi: 10.3969/j.issn.1673-1433.2014.01.012
    [3] 华勇, 李亚萍. 磨料磨具导论 [M]. 北京: 中国标准出版社, 2004: 47-153.

    HUA Yong, LI Yaping. Introduction to abrasive tools [M]. Beijing: Standards Press of China, 2004: 47-153.
    [4] JACKSON M J, DAVIS C J, HITCHINER M P, et al. High-speed grinding with CBN grinding wheels applications and future technology [J]. Journal of Materials Processing Technology,2001,110:78-88. doi: 10.1016/S0924-0136(00)00869-4
    [5] LIU X P, QIAO A, WAN L, et al. Effect of ZrO2 content on the properties of diamond grinding wheel vitrified bond [J]. Journal of Wuhan University of Technology (Materials Science Edition),2014,29(1):19-22. doi: 10.1007/s11595-014-0860-4
    [6] LIN K H, PENG S F, LIN S T. Sintering parameters and wear performances of vitrified bond diamond grinding wheels [J]. International Journal of Refractory Metals and Hard Materials,2005,25(1):25-31.
    [7] 左宏森, 关春龙. 造孔剂对金属结合剂金刚石磨具力学性能的影响 [J]. 金刚石与磨料磨具工程,2009,29(5):82-85. doi: 10.3969/j.issn.1006-852X.2009.05.018

    ZUO Hongsen, GUAN Chunlong. Effect of pore forming agents on mechanical properties of metal bonded diamond wheels [J]. Diamond & Abrasives Engineering,2009,29(5):82-85. doi: 10.3969/j.issn.1006-852X.2009.05.018
    [8] LYU X F, LI Z H, ZHU Y M, et al. Effect of PMMA pore former on microstructure and mechanical properties of vitrified bond CBN grinding wheels [J]. Ceramics International,2013,39(2):1893-1899. doi: 10.1016/j.ceramint.2012.08.038
    [9] DAVIS D T, SHELDON D, ERKEY C. Highly porous vitrified bonded abrasives by the selective extraction of butyl carbamate from green grinding wheels with supercritical CO2 [J]. Journal of the American Ceramic Society,2005,88(7):1729-1733. doi: 10.1111/j.1551-2916.2005.00276.x
    [10] 吕冰海, 董晨晨, 邓乾发, 等. 可溶填充剂对孔隙自生成超硬磨料磨具孔隙生成的影响 [J]. 机械工程学报,2014,50(15):172-179. doi: 10.3901/JME.2014.15.172

    LYU Binghai, DONG Chenchen, DENG Qianfa, et al. Influence of soluble filler on pores self-generation superabrasive tool [J]. Journal of Mechanical Engineering,2014,50(15):172-179. doi: 10.3901/JME.2014.15.172
    [11] LIN Y H, FANG J B, XUE Q H. Effect of fly ash cenosphere pore formers on the microstructure and mechanical properties of vitrified diamond grinding wheels [J]. International Journal of Refractory Metals and Hard Materials,2017,67:82-89. doi: 10.1016/j.ijrmhm.2017.05.008
    [12] MAO J B, ZHANG F L, LIAO G C, et al. Effect of granulated sugar as pore former on the microstructure and mechanical properties of the vitrified bond cubic boron nitride grinding wheels [J]. Materials & Design,2014,60:328-333.
    [13] 张习敏, 王明智, 王艳辉. 不同造孔剂对陶瓷结合剂性能的影响 [J]. 金刚石与磨料磨具工程,2002,22(5):19-22. doi: 10.3969/j.issn.1006-852X.2002.05.005

    ZHANG Ximin, WANG Mingzhi, WANG Yanhui. Influence of pore-forming materials upon the performances of vitrified bond [J]. Diamond & Abrasives Engineering,2002,22(5):19-22. doi: 10.3969/j.issn.1006-852X.2002.05.005
    [14] 刘小磐. 陶瓷结合剂金刚石砂轮的制备及磨削性能研究 [D]. 长沙: 湖南大学, 2012.

    LIU Xiaopan. Study on preparation and grinding properties of vitrified bond diamond wheel [D]. Changsha: Hunan University, 2012.
    [15] 王超超, 张凤林, 李伟雄, 等. 空心玻璃微珠对陶瓷结合剂金刚石砂轮微观结构和力学性能的影响 [J]. 工具技术,2017,51(10):36-39. doi: 10.3969/j.issn.1000-7008.2017.10.009

    WANG Chaochao, ZHANG Fenglin, LI Weixiong, et al. Effect of glass bubble as pore former on micro-structure and mechanical properties of vitrified bond diamond grinding wheels [J]. Tool Engineering,2017,51(10):36-39. doi: 10.3969/j.issn.1000-7008.2017.10.009
    [16] WANG C C, ZHANG F L, PAN J S, et al. An experimental study on preparation of vitrified bond diamond grinding wheel with hollow spherical corundum granules as pore former [J]. The International Journal of Advanced Manufacturing Technology,2017,93(1/2/3/4):595-603. doi: 10.1007/s00170-017-0475-y
    [17] BARBARA S B, JAROSLAW P, KRZYSZTOF N. Effect of porous glass-ceramic materials addition on the cubic boron nitride (CBN) tools properties [J]. Optica Applicata,2005,35(4):809-817.
    [18] 陈卫东, 涂俊群. 不同的造孔剂对陶瓷结合剂CBN砂轮性能的影响 [J]. 超硬材料工程,2014,26(3):1-5. doi: 10.3969/j.issn.1673-1433.2014.03.001

    CHEN Weidong, TU Junqun. Influence of different type of pore former on the mechanical property of vitrified bond cBN grinding wheel [J]. Superhard Material Engineering,2014,26(3):1-5. doi: 10.3969/j.issn.1673-1433.2014.03.001
